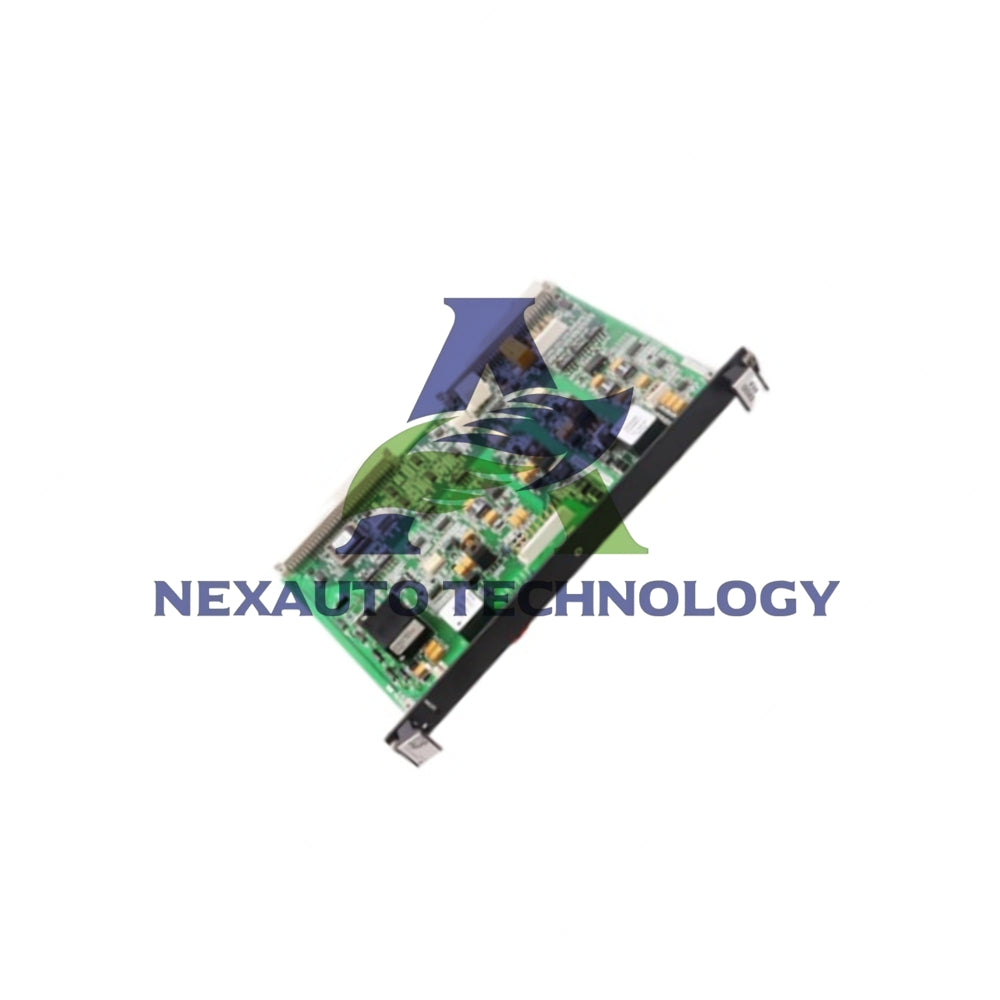

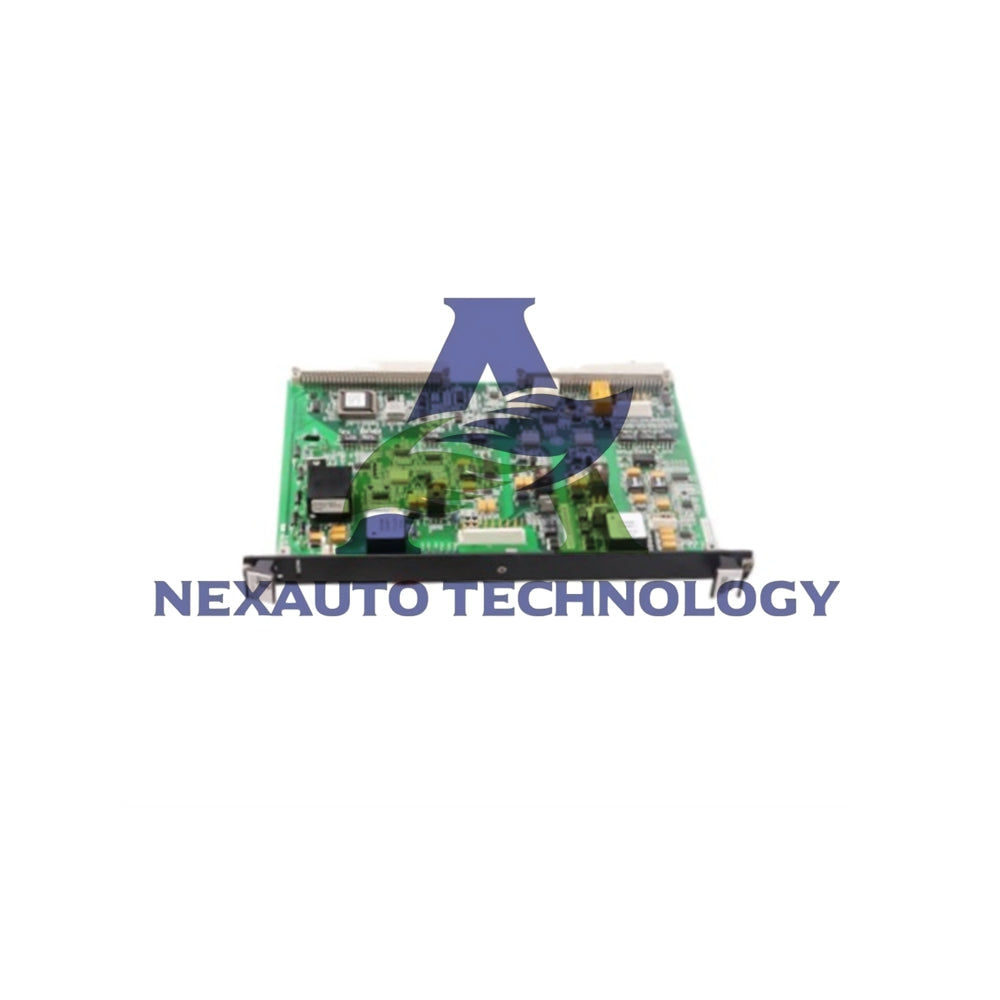

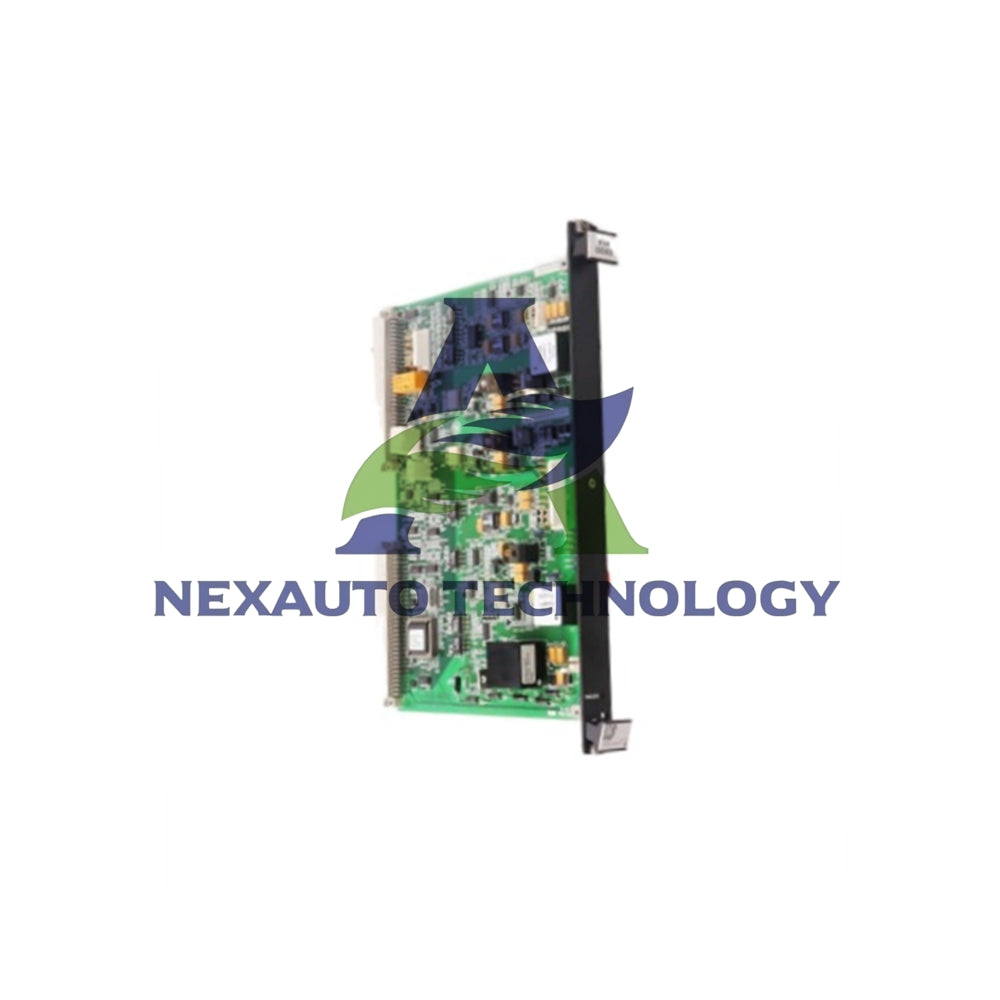

IS200ERDDH1ABA General Electric EX2100 ERDD Board

GE IS200ERDDH1ABA Dynamic Discharge Board – EX2100 Series

General Electric IS200ERDDH1ABA functions as the Exciter Regulator Dynamic Discharge Board (ERDD) within the EX2100 series. This board provides IGBT gate drive control and dynamic discharge protection for both simplex and redundant regulator systems. Engineers trust IS200ERDDH1ABA for reliable DC-link voltage management and comprehensive bridge feedback monitoring.

Core Technical Specifications

• Brand: General Electric (GE)
• Model: IS200ERDDH1ABA
• Series: EX2100 Excitation Control
• Form Factor: Single-slot, double-height (6U)
• Backplane Connectors: Dual 96-pin P1 and P2
• Board Interface Connectors: Seven surface-mounted connectors
• Mounting Locations: ERBP (simplex), ERBP + ERRB (redundant)
• Temperature Sensing: One RTD input, 0–140 °C range, 0–10 V DC output
• DC-Link Monitoring: Direct voltage sensing with independent dynamic discharge control
• Output Current Feedback: 100 mV shunt input, VCO biased at 333 kHz zero-field
• Output Voltage Feedback: -600 to +600 V DC range, VCO biased at 1 MHz zero output
• Overcurrent Detection: Predefined full-scale shunt voltage threshold
• Isolated Power Supplies: Six supplies from two onboard transformers
• Board ID: Barcode serial number, board type, hardware revision
• Relay Control: K41 de-excitation relay (simplex) or K3 charging relay (redundant)
• Operating Temperature: -30°C to +70°C industrial operation
• Isolation Voltage: 1500 Vrms optical isolation on feedback circuits

System Architecture and Interface Design

• IS200ERDDH1ABA mounts directly into the ERBP backplane. In redundant systems, a second board occupies the ERRB backplane.
• P1 and P2 backplane connectors supply non-isolated control circuits. Power originates from the Exciter Power Supply Module (EPSM).
• Seven surface connectors link ERDD to companion boards. These include ERIO, ERSC, and ERRR for complete regulator control.
• Redundant power source derived from DC-link bus. Ensures dynamic discharge operates independently of control processor.
• Six isolated power supplies come from two onboard transformers. These drive IGBT gating and feedback isolation circuits.

Bridge Feedback and Protection Functions

• Output current VCO feedback uses bridge shunt voltage. Zero-field current produces 333 kHz frequency baseline.
• Overcurrent detection triggers at full-scale shunt threshold. Feedback signal changes state immediately upon fault detection.
• Output voltage VCO feedback covers -600 to +600 V DC. Zero output voltage generates 1 MHz reference frequency.
• Bridge temperature monitored via single RTD input. Scaled 0–140 °C maps to 0–10 V DC analog output.
• IGBT gate drive status continuously monitored. Feedback includes desaturation conditions and power supply integrity.
• Frequencies below zero-input baseline indicate shunt circuit failure. Built-in diagnostics simplify troubleshooting.

Dynamic Discharge and DC-Link Control

• Dynamic discharge circuits monitor DC-link voltage directly. Independent activation occurs without control processor intervention.
• Excess DC-link voltage triggers automatic discharge. Protects IGBT bridge and field windings from overvoltage damage.
• EPSM input and redundant DC-link source power discharge circuits. Dual-path design ensures fail-safe operation.
• K41 de-excitation relay control in simplex applications. Safely collapses field flux during shutdown or fault conditions.
• K3 charging relay control in redundant configurations. Manages DC-link pre-charge sequence for hot-backup regulators.

Simplex and Redundant Application Flexibility

• Simplex mode requires one IS200ERDDH1ABA in ERBP backplane. Board controls K3 charging relay for single regulator systems.
• Redundant mode uses two ERDD boards. Primary board resides in ERBP, secondary board occupies ERRB backplane.
• Redundant configuration controls K41 de-excitation relay. Provides coordinated field discharge for dual regulator setups.
• Identical hardware supports both operating modes. No firmware or component changes required for mode switching.
• Board ID device stores hardware revision and type. Simplifies inventory management and field replacement.

Installation and Packaging

• Each IS200ERDDH1ABA ships in anti-static shielded packaging. ESD foam secures all connectors and components.
• Package includes one GE ERDD board. No cables, mounting hardware, or software included.
• Direct drop-in replacement for existing EX2100 ERDD modules. Identical form factor and connector layout.
• We ship via FedEx, UPS, or DHL. Tracking information provided within 24 hours of dispatch.
• International export packaging available. Double-boxed with moisture barrier for air freight.

Contact Information

• Email inquiries: sales@nex-auto.com
• WhatsApp support: +86 153 9242 9628
• Response time: Same business day for all technical and commercial questions.

Frequently Asked Questions

Q: What is the difference between IS200ERDDH1ABA and IS200ERDDH1A?
A: IS200ERDDH1ABA is the current hardware revision with enhanced RTD linearization. It remains backward compatible with all EX2100 backplanes.

Q: Can I use this board in an EX2100e system?
A: Yes. IS200ERDDH1ABA operates in both EX2100 and EX2100e platforms. Verify your EPSM revision for redundant configurations.

Q: Do I need two boards for redundant applications?
A: Yes. Redundant EX2100 systems require one ERDD in ERBP and one in ERRB. IS200ERDDH1ABA supports both positions.

Q: What causes the dynamic discharge to activate unexpectedly?
A: Excessive DC-link voltage from regenerative loads or AC line swells. Check external PT/CT signals and bridge shunt calibration first.

Q: What is the typical lead time for IS200ERDDH1ABA?
A: In-stock orders ship within 48 hours. Volume orders typically ship within 5 business days.
