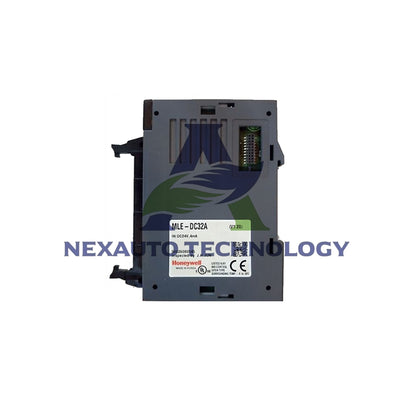

MLE-DC32A 24V DC Input Module by Honeywell

Honeywell MLE-DC32A Digital Input Module

The MLE-DC32A is a compact 32-channel Digital Input module from Honeywell. It provides high-density DC input capability for monitoring switches and sensors in control systems.

Technical Specifications

• Brand & Model: Honeywell MLE-DC32A
• Product Type: Digital Input Module
• Channels: 32 DC input points
• Rated Voltage: 24 V DC
• Operating Range: 20.4-28.8 V DC
• Common Method: 32 point / COM

Electrical Characteristics

• Rated Current: 4 mA per input
• ON Threshold: ≥19 V DC / ≥3 mA
• OFF Threshold: ≤6 V DC / ≤1 mA
• Input Resistance: 5.6 kΩ
• Internal Consumption: 50 mA

Response Time Configuration

• Selectable Times: 1, 3, 5, 10, 20, 70, 100 ms
• Default Setting: 3 ms both ON/OFF
• Configuration: Set via CPU parameter

Physical Specifications

• Weight: 60 g (lightweight design)
• Insulation: ≥10 MΩ
• Compact module design

Key Features

• High-density 32 input channels
• Configurable response time
• Single common for all points
• Lightweight compact design
• Industrial voltage range

Typical Applications

• Switch and sensor monitoring
• Pushbutton status input
• Limit switch detection
• General-purpose DC input

Packaging & Shipping

• New unit in factory packaging
• Worldwide shipping via FedEx, UPS, DHL

FAQ

• Channel count? 32 DC input channels with common COM.
• Response time? Configurable from 1ms to 100ms via CPU parameter.
• Voltage range? Operates from 20.4V to 28.8V DC.
• Current per input? 4mA nominal, 3mA minimum for ON detection.
• Weight? Lightweight 60g module for compact installations.
