MTL Instruments | Digital Isolator | MTL3052

Product Introduction

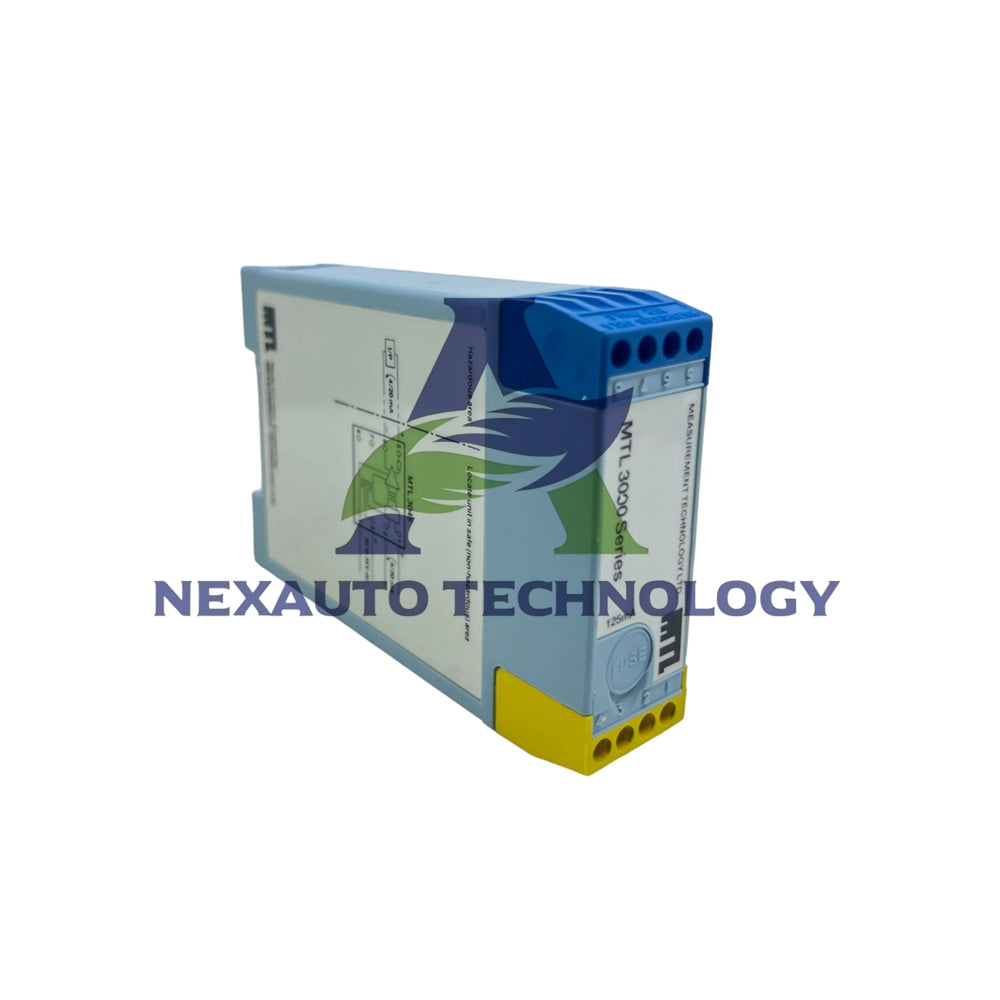

The MTL3052 is an intrinsically safe (IS) interface barrier designed for digital signal transmission in hazardous areas. It operates at higher frequencies than the MTL3042, making it ideal for MTL800 Series multiplexer systems. The unit ensures safe data highway and transmitter communication while offering flexible output configurations.

Engineers can choose between two output circuits—15V/180Ω or 15V/100Ω—to accommodate different loop resistance needs, such as systems with surge protectors. However, in dual-highway setups using low-resistance outputs, transmitter placement is restricted to IIB atmospheres.

Technical Specifications

• Channels: Single fully floating channel
• Hazardous Area Certification: Zone 0, IIC, T4-6 / Div 1, Group A (IIB for dual-highway with low-resistance outputs)
• Input Voltage: 4-12V DC
• Signal Bandwidth: DC to 10kHz
• Output Voltage: [Vin – (0.25 × current in mA)] V (minimum)
• Ripple: <1mA peak-to-peak (input & output)
• Power Dissipation: 160mW max at 12V with 20mA signal
• Safety Ratings: 15V/100Ω (150mA) or 15V/180Ω (83.3mA)
• FM Entity Parameters: Voc = 15V, Isc = 83.3mA, Ca = 0.75µF, La = 5.2mH
• Fuse: 50mA semi-time-lag (DIN 41571)

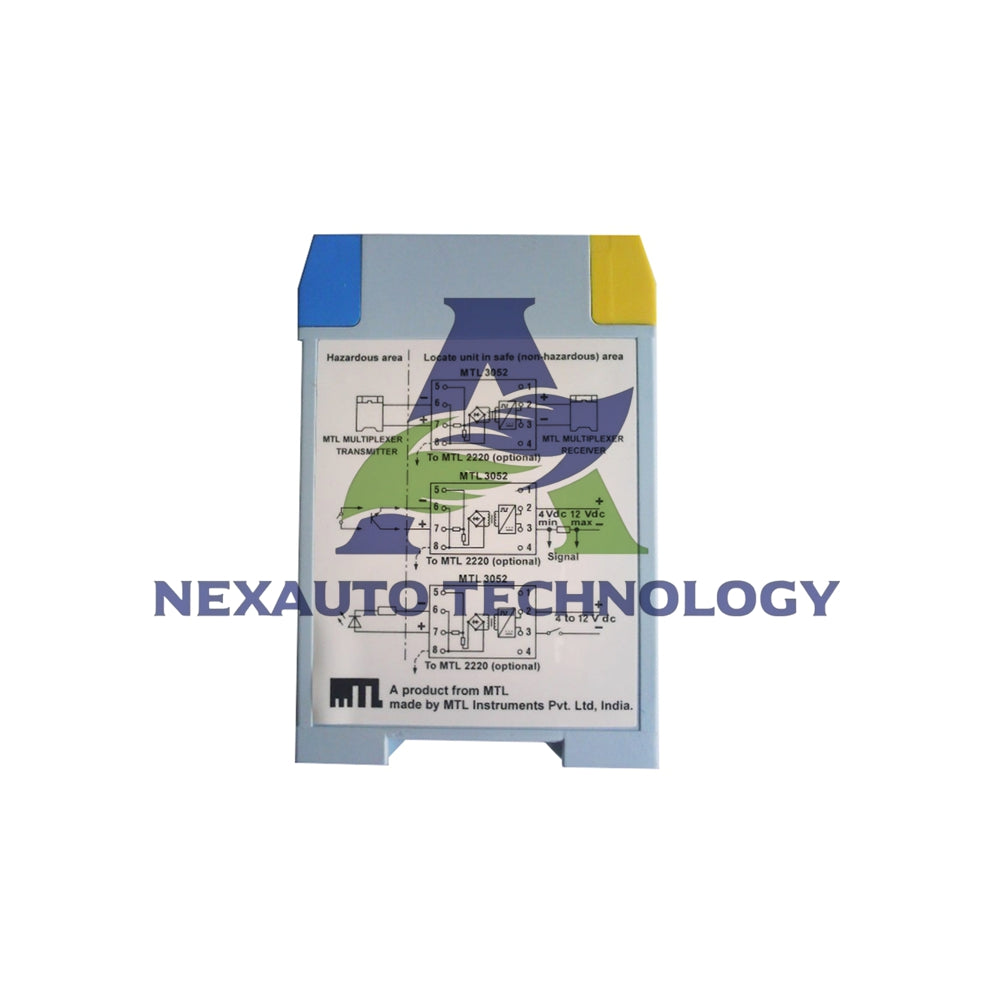

The MTL3052 also supports alternative applications, such as monitoring hazardous-area switches or magnetic shaft encoders (with proper current-limiting resistors). Its compact design and compliance with strict safety standards make it a reliable choice for industrial automation.
