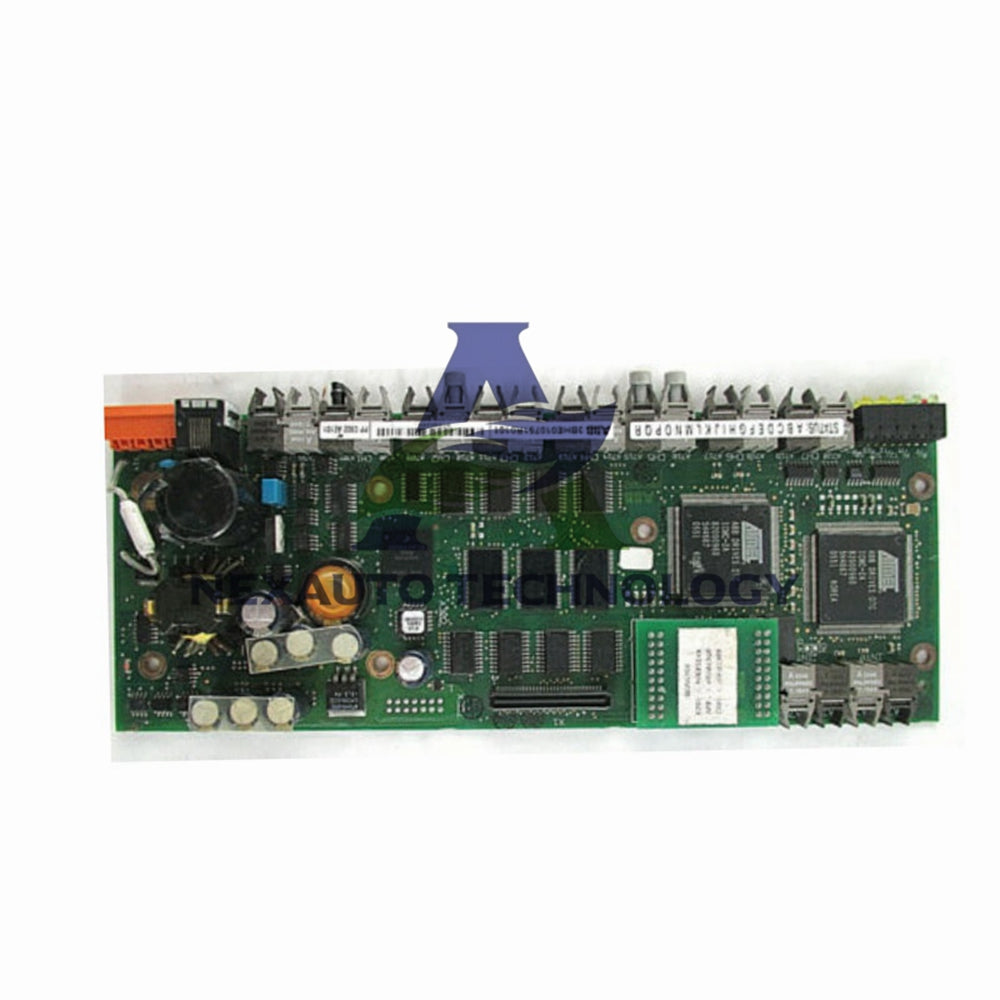

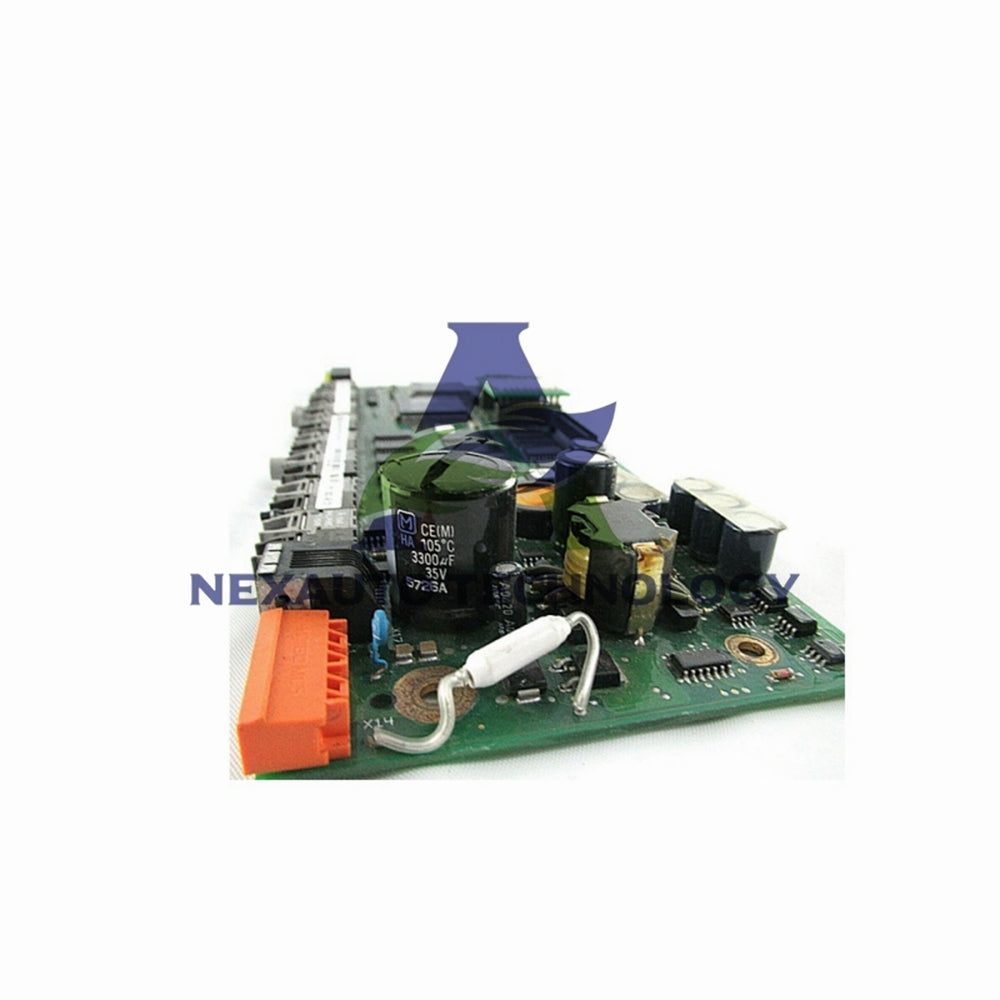

PP C902 AE101 ABB 3BHE010751R0101 Control Module

ABB Excitation Control Module PP C902 AE101 - 3BHE010751R0101

ABB delivers advanced excitation control solutions. The PP C902 AE101 Excitation Control Module (Part Number 3BHE010751R0101) regulates generator excitation systems. This module provides precise voltage and reactive power control. Use it for synchronous generators, hydro turbines, and steam turbine generators. Made by ABB.

Product Overview

• Manufacturer: ABB
• Model: PP C902 AE101
• Part Number: 3BHE010751R0101
• Product Type: Excitation Control Module
• Condition: New and original factory packing
• Warranty: 12 months

Power Specifications

• Supply Voltage: 24 V DC ± 10%
• Power Consumption: 8 W typical
• Inrush Current: 2.0 A at power-up
• Internal Fuse: 2 A slow-blow
• Isolation Voltage: 1500 V AC (input to logic)

Analog Inputs

• Number of Inputs: 8 channels
• Input Type: Differential, isolated
• Input Range: ±10 V, 0-20 mA, or 4-20 mA (software selectable)
• Resolution: 16 bits (0.003% of full scale)
• Accuracy: ±0.1% of reading at 25°C
• Sample Rate: 100 Hz per channel
• Input Impedance: > 1 MΩ (voltage mode), 250 Ω (current mode)

Analog Outputs

• Number of Outputs: 4 channels
• Output Type: Isolated, short-circuit protected
• Output Range: ±10 V or 4-20 mA (software selectable)
• Resolution: 14 bits
• Accuracy: ±0.2% of full scale
• Settling Time: 1 ms typical
• Maximum Load: 2 kΩ (voltage mode), 600 Ω (current mode)

Digital Inputs

• Number of Inputs: 8 channels
• Input Voltage: 24 V DC nominal
• Logic 1 Threshold: 15 to 30 V DC
• Logic 0 Threshold: 0 to 5 V DC
• Input Current: 6 mA at 24 V DC
• Isolation: Optically isolated, 2500 V RMS

Digital Outputs

• Number of Outputs: 6 channels
• Output Type: Relay (Form A, normally open)
• Contact Rating: 2 A at 30 V DC / 250 V AC
• Switching Time: 5 ms max
• Mechanical Life: 10 million operations
• Electrical Life: 100,000 operations at rated load

Excitation Control Features

• Control Modes: AVR (Automatic Voltage Regulation), FCR (Field Current Regulation), VAR (Reactive Power)
• PID Update Rate: 10 ms
• Firing Pulse Output: 6 pulses for thyristor bridge
• Pulse Width: 50 to 120 µs adjustable
• Field Voltage Sensing: 0 to 1000 V DC
• Field Current Sensing: 0 to 10 A (external shunt required)

Communication Interfaces

• Fieldbus Port 1: PROFIBUS DP (9-pin D-sub, 12 Mbps)
• Fieldbus Port 2: Modbus RTU (RS485, 115.2 kbps)
• Service Port: USB 2.0 (Type B, for configuration)
• Ethernet: 1 x 10/100Base-T (RJ45, for monitoring)

Environmental Specifications

• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Vibration Resistance: 1 g (10 to 150 Hz)
• Shock Resistance: 15 g (11 ms half-sine)
• Altitude: 2000 m max

Physical Characteristics

• Dimensions (W x H x D): 180 mm x 120 mm x 35 mm
• Weight: 0.55 kg
• Housing: Polycarbonate, UL94 V-0 rated
• Mounting: DIN rail (EN 60715, 35 mm)
• Protection Class: IP20

Terminal Specifications

• Wire Gauge: 0.2 to 2.5 mm² (AWG 24-14)
• Stripping Length: 8 mm
• Torque: 0.5 to 0.6 Nm
• Connector Type: Removable spring-clamp terminals

Status Indicators (LEDs)

• PWR (Green): Power supply OK
• RUN (Green): Module operating normally
• ERR (Red): Module fault or self-test error
• BUS (Yellow): Fieldbus communication active
• FLD (Green): Excitation field active

Compliance and Certifications

• CE Mark: Yes
• RoHS Compliant: Yes
• EMC Standards: EN 61000-6-2, EN 61000-6-4
• Safety Standards: EN 61010-1

Package Contents

• PP C902 AE101 Excitation Control Module (3BHE010751R0101)
• Terminal blocks (pre-installed)
• DIN rail mounting clips
• Configuration USB cable (1 m)
• Factory packing with original box

Shipping Information

• Package weight: approximately 0.8 kg
• We use FedEx, UPS, and DHL carriers
• Product origin: Made by ABB

Frequently Asked Questions (FAQ)

• What is the part number for this excitation module?
  The part number is 3BHE010751R0101 for model PP C902 AE101.
• What control modes does this module support?
  It supports AVR (voltage), FCR (field current), and VAR (reactive power) modes.
• How many analog inputs does it have?
  It has 8 analog inputs with 16-bit resolution.
• What communication protocols does it support?
  It supports PROFIBUS DP, Modbus RTU, and Ethernet for monitoring.
• What is the operating temperature range?
  It operates from -10°C to +55°C.
• Is this a genuine ABB product?
  Yes. This is a new and original ABB excitation control module in factory packing.

Expert Buying Guide

• Verify your generator type: This module works with synchronous generators from 1 MW to 500 MW.
• Check your field current range: The module measures up to 10 A. Use an external shunt for higher currents.
• Communication planning: Use PROFIBUS DP for fast control loops. Use Modbus RTU for monitoring only.
• Installation tip: Keep field wiring separate from signal wiring. This prevents noise interference.
