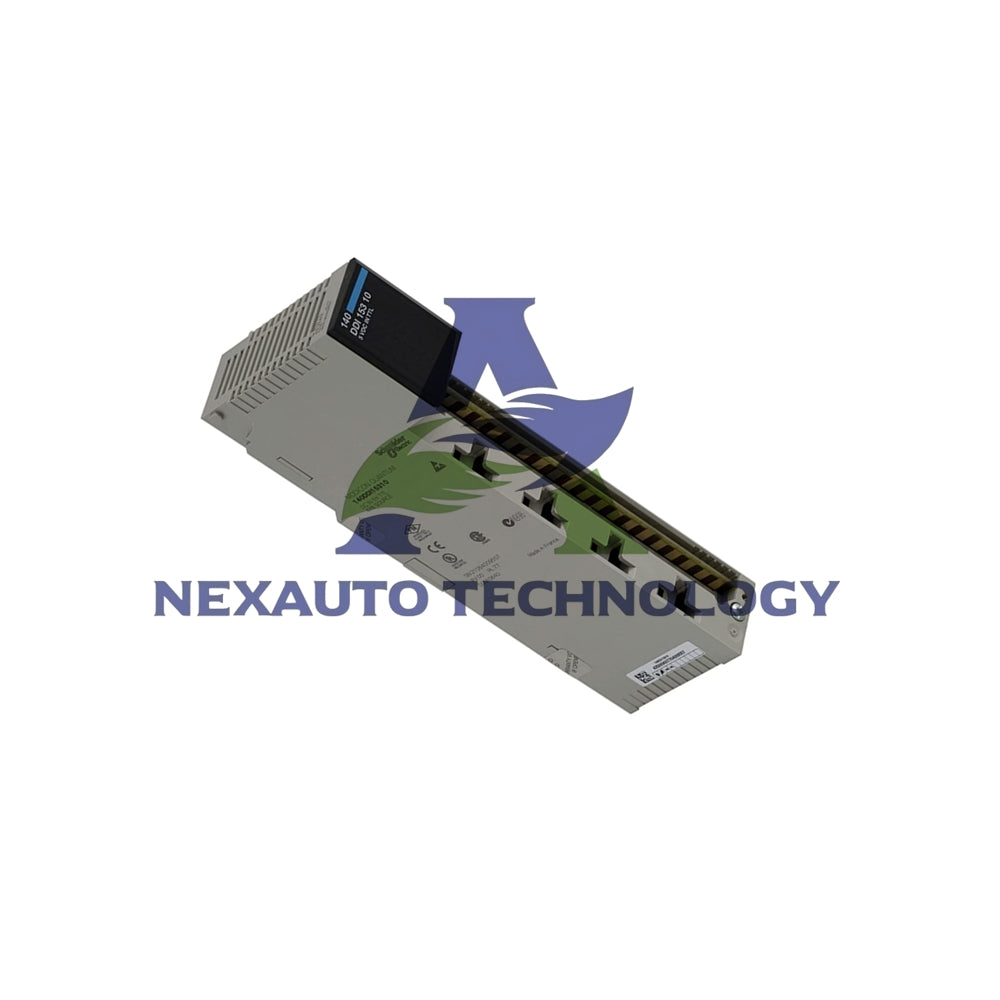

Schneider 140DDO36400C 96 Channel DC Output Module

140DDO36400C Schneider Electric Modicon Quantum High-Density DC Output Module

The 140DDO36400C is a high density DC discrete output module from Schneider Electric's Modicon Quantum automation platform. This module provides an impressive 96 output channels organized into logical groups for flexible control. It operates on 24V DC using negative sink logic making it suitable for driving a wide array of industrial loads.

Core Specifications and Identification

• Manufacturer and Model: This is a Schneider Electric product from the Modicon Quantum series.
• Part Number: The specific catalog number is 140DDO36400C.
• Product Type: Functions as a 96 channel DC discrete output module.
• Output Logic: Utilizes negative logic sink configuration.
• Addressing: Requires 6 output words in the controller's I/O mapping.

Electrical Output and Channel Details

• Output Voltage: Operates at 24V DC with limits from 19.2V to 30V.
• Channel Grouping: Organized into 6 groups of 16 channels each.
• Load Current: Maximum 0.5A per point 3.2A per group and 19.2A per module.
• Surge Current: Can handle up to 2A inrush current.
• Protection: Features built in short circuit and overload protection.

Performance and Protection Features

• Response Time: Extremely fast switching with ≤ 0.1 ms for both turn on and turn off.
• Maximum Leakage Current: Low leakage at 1 mA at 24V.
• Power Dissipation: Rated at 7 Watts.
• Isolation: Provides 500 Vrms isolation between channels and the bus.
• Fault Indication: Detects and reports faults per point and loss of field power.

Physical and Environmental Specifications

• Operating Temperature: Functions from 0°C to 60°C.
• Storage Temperature: Can be stored from -40°C to 85°C.
• Operating Altitude: Suitable for use up to 5000 meters.
• Relative Humidity: Up to 95% non condensing.
• Protective Treatment: Features a conformal coating for environmental protection.
• Net Weight: Approximately 0.45 kg.

Indicators and System Integration

• Local Signalling: Includes 98 LEDs 1 green for bus comms 1 red for faults and 96 green for individual output status.
• Bus Current Requirement: Draws 250 mA from the Quantum backplane.
• Module Format: Standard Quantum module format for easy rack installation.

Certifications and Standards

• Standards: Complies with UL 508 and CSA C22.2 No 142.
• Additional Approvals: Includes CE RMRS C Tick GOST and FM Class 1 Division 2 certifications.
• EMC Resilience: Resists electrostatic discharge 4 kV contact 8 kV air and electromagnetic fields 10 V/m 80 2000 MHz.

Packaging and Shipping

• Package Contents: Includes the 140DDO36400C output module.
• Shipping Methods: Available for international delivery via FedEx UPS and DHL.

Frequently Asked Questions FAQ

• What is the main advantage of this module? The 140DDO36400C offers extremely high density with 96 outputs in a single slot maximizing control capacity within a Quantum rack.
• What type of loads is it designed for? It is ideal for driving a large number of 24V DC loads such as solenoid valves indicator lights relays and small contactors within its 0.5A per point rating.
• How does sink logic wiring work? With sink logic the module provides the path to ground common when active the load must be connected between the +24V supply and the module's output terminal.
• What happens if an output short circuits? The module has per point protection that will typically disable the affected output and report a fault without affecting the other channels.

The 140DDO36400C delivers maximum output density for space constrained Quantum control systems. Its fast response and comprehensive diagnostics ensure reliable operation in complex automation tasks. This Schneider Electric module is an efficient solution for applications requiring control of numerous DC actuators.
