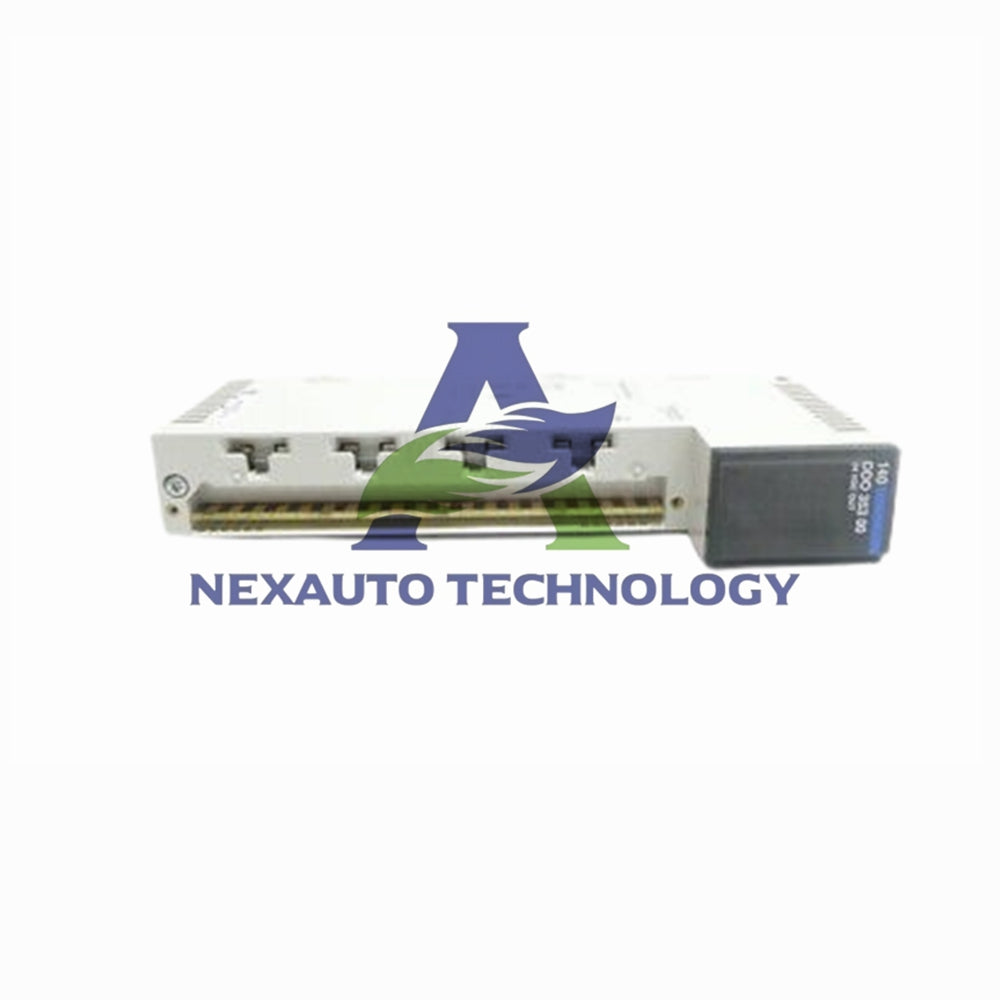

Schneider Electric 140DDO15310C TTL Output Module

Schneider Electric Modicon Quantum TTL Output Module

The 140DDO15310C is a 32-channel TTL discrete output module from Schneider Electric's Modicon Quantum series. This output module provides reliable signal control for industrial automation systems. It delivers TTL positive (sink) signals with fast response times.

Core Technical Specifications

• Brand & Model: Schneider Electric 140DDO15310C (Modicon Quantum Series)
• Output Channels: 32 discrete TTL output points total
• Channel Groups: 4 groups with 8 channels each
• Output Type: TTL positive (sink) logic signals
• Output Voltage: 5 Volts DC nominal operating voltage
• Supply Voltage: 4 to 5.5 Volts DC rated range
• Address Requirement: 2 output words for system addressing

Electrical & Current Specifications

• Point Current: 75mA maximum per individual output point
• Group Current: 600mA maximum per 8-channel group
• Module Current: 2.4A maximum total module current
• Current Consumption: 2800mA at 5V DC power requirement
• Bus Current: 350mA requirement from backplane
• Internal Resistor: 440 Ohm pullup resistor included

Performance & Protection Features

• Response Time: 250 microseconds maximum for state changes
• Surge Protection: 750 Amperes for 0.5ms surge capability
• Voltage State 1: ≤0.2 Volts guaranteed ON state voltage
• Absolute Maximum: 15V for 1.3ms decaying voltage pulse
• Power Dissipation: 4 Watts total module power dissipation
• Isolation: 500Vrms for 1 minute between channel groups

Protection & Safety Features

• Protection Type: Transient voltage suppression and internal fuses
• Fault Indication: Blown fuse and loss of field power detection
• ESD Protection: 4kV contact, 8kV air discharge resistance
• EMC Immunity: 10V/m 80-2000MHz electromagnetic fields
• Fuse Protection: Internal fuse protection for output circuits
• Certifications: FM Class 1 Div 2, CSA, UL 508, GOST, C-tick

Environmental & Physical Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Module Weight: 0.45 kilograms (0.99 pounds) net weight
• Relative Humidity: 95% maximum non-condensing
• Operating Altitude: Up to 5000 meters (16404 feet)
• Protective Coating: Conformal coating for environmental protection

Indicator & Monitoring Features

• Channel LEDs: 32 green LEDs for individual output status
• Active LED: Green LED for bus communication presence
• Fault LED: Red LED for external fault detection
• Module Format: Standard Quantum module dimensions
• Country of Origin: France (FR) manufacturing origin

Installation Guidelines

• Install in Modicon Quantum series control racks or enclosures
• Provide 5V DC power within 4-5.5V range for proper operation
• Connect output loads within specified current limits per point/group
• Observe channel grouping for isolation and wiring organization
• Monitor LED indicators for output status and fault conditions
• Ensure operating environment stays within specified temperature range

Packaging & Shipping Information

• Includes one Schneider Electric 140DDO15310C output module
• Package dimensions: 31.2cm × 16.3cm × 4.5cm (12.3"×6.4"×1.8")
• Package weight: 446 grams (15.7 ounces) with protective packaging
• We ship via reliable carriers including FedEx, UPS, and DHL
• Direct from manufacturer with original Schneider Electric quality

Frequently Asked Questions

• How many output channels? 32 TTL output points.
• What voltage does it use? 5VDC nominal, 4-5.5V range.
• What is the response time? 250 microseconds maximum.
• What surge protection? 750A for 0.5ms surge capability.
• What current per point? 75mA maximum per output point.
