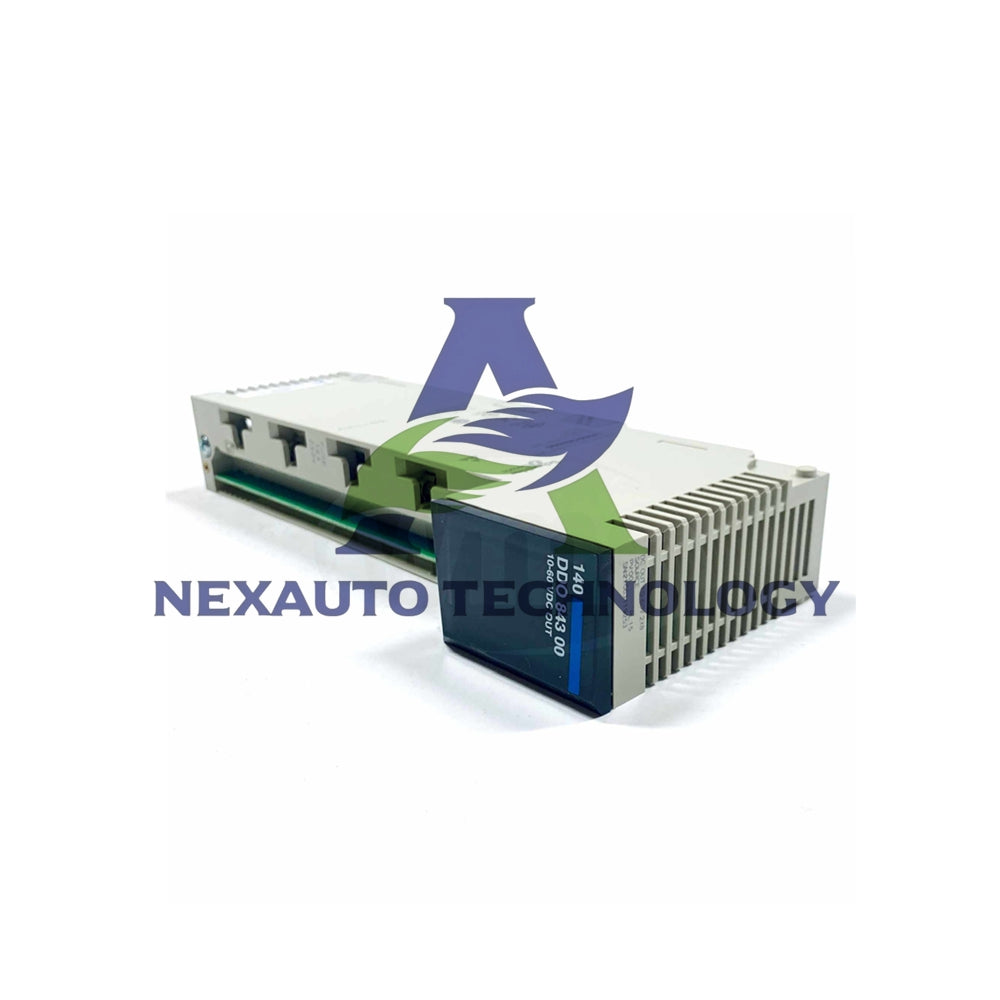

Schneider Electric 140DDO35301C Discrete Output Module

140DDO35301C Schneider Electric Modicon Quantum Output Module

The 140DDO35301C is a discrete output module from Schneider Electric's Modicon Quantum automation platform. This module provides 32 output channels designed for reliable control of DC loads. It operates on 24V DC with positive logic source output making it suitable for a wide array of industrial automation tasks.

Core Specifications and Identification

• Manufacturer and Model: This is a Schneider Electric product from the Modicon Quantum series.
• Part Number: The specific catalog number is 140DDO35301C.
• Product Type: Functions as a 32 channel DC discrete output module.
• Output Logic: Utilizes positive logic source configuration.
• Addressing: Requires 2 output words in the controller's I/O mapping.

Electrical Output and Channel Details

• Output Voltage: Operates at 24V DC with limits from 19.2V to 30V.
• Channel Grouping: Organized into 4 groups of 8 channels each.
• Load Current: Maximum 16A per module and 4A per group.
• Surge Current: Can handle up to 2A inrush current.
• Internal Protection: Each group is protected by an internal 5A fuse.

Performance and Protection Features

• Response Time: Fast switching with ≤ 0.1 ms turn off and ≤ 1 ms turn on.
• Maximum Leakage Current: Maintains low leakage at 1 mA at 24V.
• Power Dissipation: Rated at 5 Watts.
• Isolation: Provides 1780 Vrms isolation between channels and bus and 500 Vrms between groups.
• Fault Indication: Detects and signals blown fuse and loss of field power.

Physical and Environmental Specifications

• Operating Temperature: Functions from 0°C to 60°C.
• Storage Temperature: Can be stored from -40°C to 85°C.
• Operating Altitude: Suitable for use up to 5000 meters.
• Relative Humidity: Up to 95% non condensing.
• Protective Treatment: Features a conformal coating for environmental protection.

Indicators and System Integration

• Local Signalling: Includes 34 LEDs 1 green for bus comms 1 red for faults and 32 green for individual output status.
• Bus Current Requirement: Draws 330 mA from the Quantum backplane.
• Module Format: Standard Quantum module format for easy installation in the rack.
• Net Weight: Approximately 0.45 kg.

Certifications and Standards

• Standards: Complies with UL 508 and CSA C22.2 No 142.
• Additional Approvals: Includes CE RMRS C Tick GOST and FM Class 1 Division 2 certifications.

Packaging and Shipping

• Package Contents: Includes one 140DDO35301C output module.
• Package Dimensions: 31.2 cm x 4.5 cm x 16.3 cm.
• Shipping Weight: Package weight is approximately 470 grams.
• Shipping Methods: Available for international delivery via FedEx UPS and DHL.

Frequently Asked Questions FAQ

• What type of devices can this module control? The 140DDO35301C is ideal for driving DC solenoids relays indicator lights and other 24V DC loads in an industrial control panel.
• How are the outputs protected? Outputs are protected in groups of eight by internal 5A fuses which provide protection against short circuits and overloads.
• What does "source" logic mean? Positive logic source means the module supplies +24V DC to the load when the output is active the load connects between the output terminal and common.
• Is this module suitable for harsh environments? Its conformal coating and wide operating temperature range make it suitable for standard industrial environments but it should be installed in a protected enclosure.

The 140DDO35301C delivers high density output control with robust protection and diagnostic features for Quantum PLC systems. Its design ensures reliable operation and easy integration into existing automation architectures. This Schneider Electric module is a proven solution for expanding digital output capacity in demanding applications.
