Schneider Electric 140DRC83000C Relay Output Module

Schneider Electric Modicon Quantum Relay Output Module

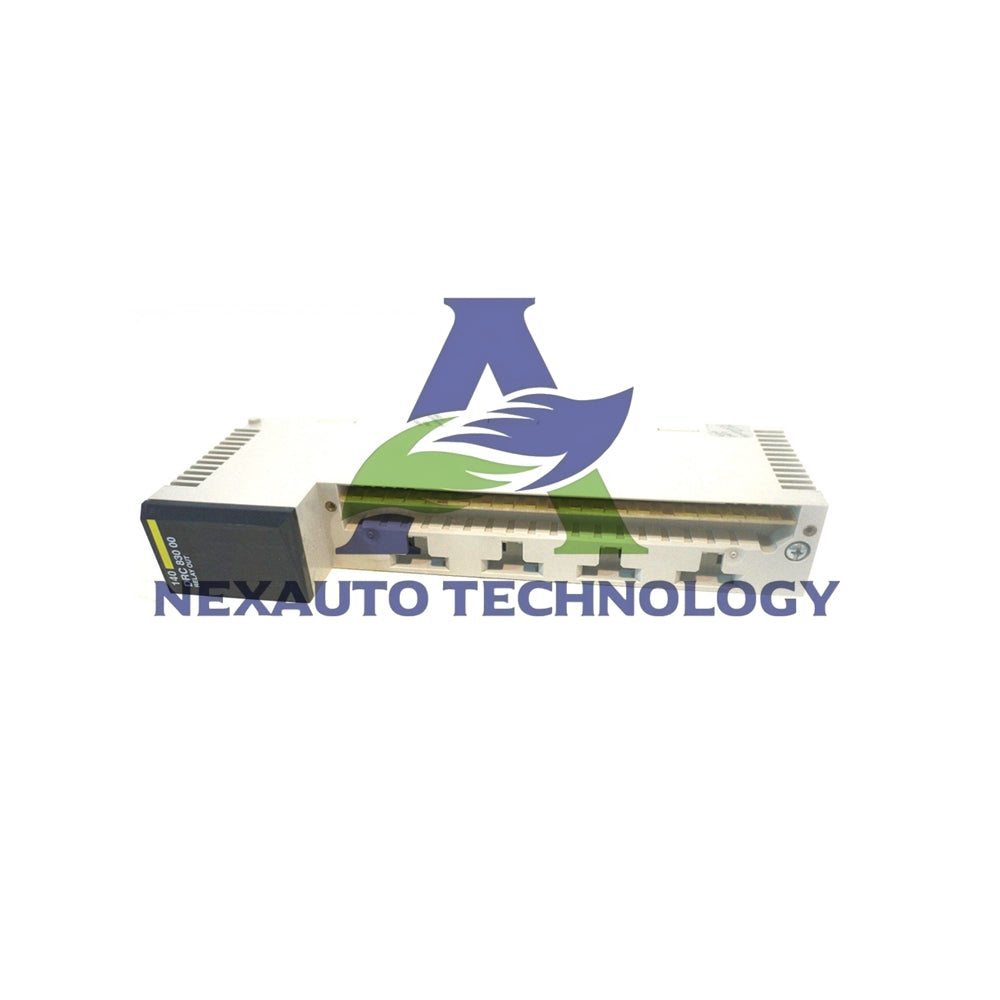

The 140DRC83000C is an 8-channel relay output module from Schneider Electric's Modicon Quantum series. This module provides versatile relay output capability with Form C contacts. It supports multiple voltage ranges for flexible industrial applications.

Core Technical Specifications

• Brand & Model: Schneider Electric 140DRC83000C (Modicon Quantum Series)
• Output Channels: 8 discrete relay output channels
• Contact Type: Form C (1 NO/NC per channel)
• Contact Composition: 1 Normally Open + 1 Normally Closed
• Voltage Range AC: 20-250 Volts AC operation
• Voltage Range DC: 5-30V DC & 30-150V DC operation
• Address Requirement: 0.5 output word for addressing

Electrical & Load Specifications

• Maximum Load AC: 5A at 250V AC resistive (60°C)
• Maximum Load DC: 3A at 30V DC, 100mA at 30-50V DC
• Tungsten Load: 2A at 250/30V AC/DC
• Surge Current: 20 Amps for 10ms capacitive
• Switching Capacity: 1250 VA resistive maximum
• Switching Frequency: 30 Hz resistive, inductive F=0.5/I²L

Performance & Durability Specifications

• Mechanical Durability: 10,000,000 operation cycles
• Electrical Durability: 100,000 cycles at rated loads
• Response Time: 10ms turn-on, 20ms turn-off maximum
• Power Dissipation: 2.75W + (0.5 × points ON)
• Bus Current: 560 mA backplane requirement
• Isolation Voltage: 1780Vrms AC/2500V DC between channels

Protection & Safety Features

• Overvoltage Protection: Internal varistor, 275V rating
• Isolation Protection: 1780Vrms AC/2500V DC isolation
• ESD Protection: 4kV contact, 8kV air discharge
• EMC Immunity: 10V/m 80-2000MHz
• Certifications: FM Class 1 Div 2, RINA, GOST, DNV, GL, RMRS, ABS
• Standards Compliance: UL 508, CSA C22.2 No 142, CE

Environmental & Physical Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Altitude: Up to 5000 meters (16404 feet)
• Module Weight: 0.3 kilograms (0.7 pounds)
• Relative Humidity: 95% maximum non-condensing
• Protective Coating: Conformal coating protection

Indicator & Monitoring Features

• Channel LEDs: 8 green output status indicators
• Active LED: Green bus communication indicator
• Fault LED: Red external fault detection
• Diagnostic Capability: Comprehensive status monitoring
• Module Format: Standard Quantum dimensions
• Package Weight: 498 grams shipping weight

Installation Guidelines

• Install in Modicon Quantum series control racks
• Connect loads within specified voltage and current ranges
• Utilize Form C contacts for flexible switching configurations
• Maintain operating temperature within 0-60°C range
• Observe isolation requirements between channels
• Monitor LED indicators for system status

Relay Application Features

• Contact Flexibility: NO/NC contacts for various circuits
• Voltage Versatility: AC and DC voltage support
• Load Diversity: Resistive, inductive, tungsten loads
• High Durability: 10 million mechanical operations
• Fast Response: ≤20ms switching response time
• Industrial Reliability: Designed for continuous operation

Packaging & Shipping Information

• Includes one Schneider Electric 140DRC83000C relay module
• Package dimensions: 31.2cm × 16.3cm × 4.5cm
• Package weight: 498 grams with protective packaging
• We ship via reliable carriers including FedEx, UPS, and DHL
• Industrial-grade packaging ensures component protection

Frequently Asked Questions

• How many output channels? 8 relay output channels.
• What contact type? Form C (1 NO/NC per channel).
• What voltage ranges? 20-250VAC, 5-30VDC, 30-150VDC.
• What is the durability? 10 million mechanical cycles.
• What certifications? FM Class 1 Div 2, UL, CSA, CE, RINA, GOST, DNV.
