Schneider Electric 170ADM39030C I/O Base Module Momentum

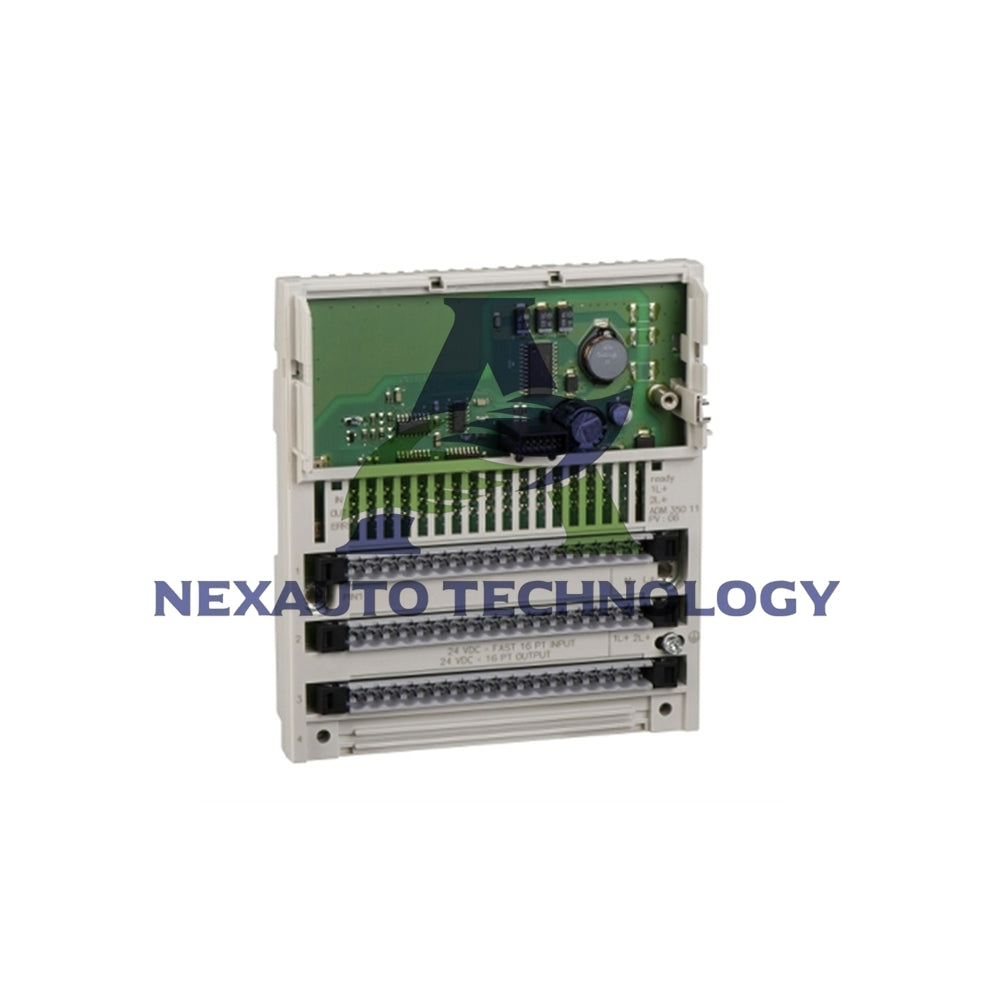

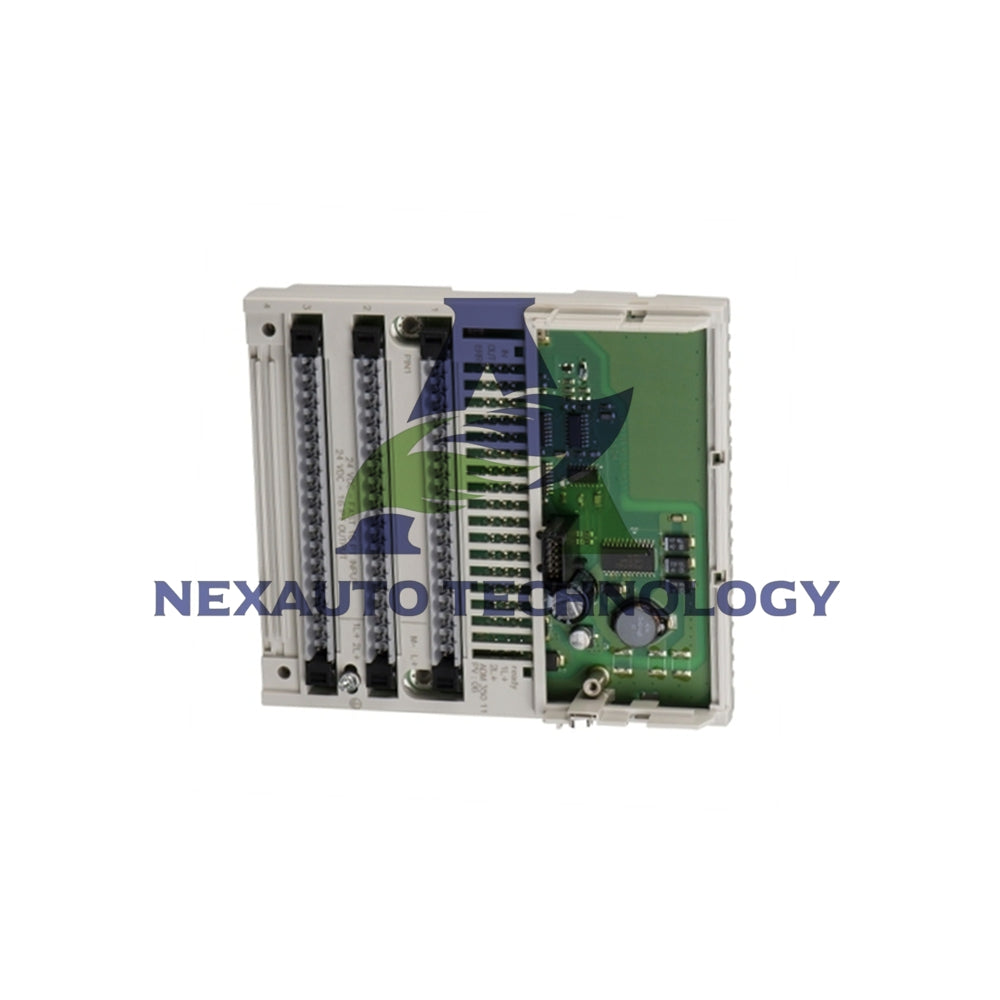

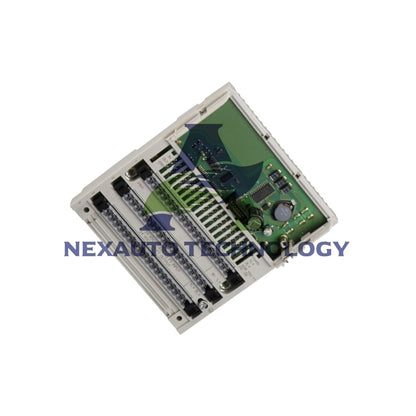

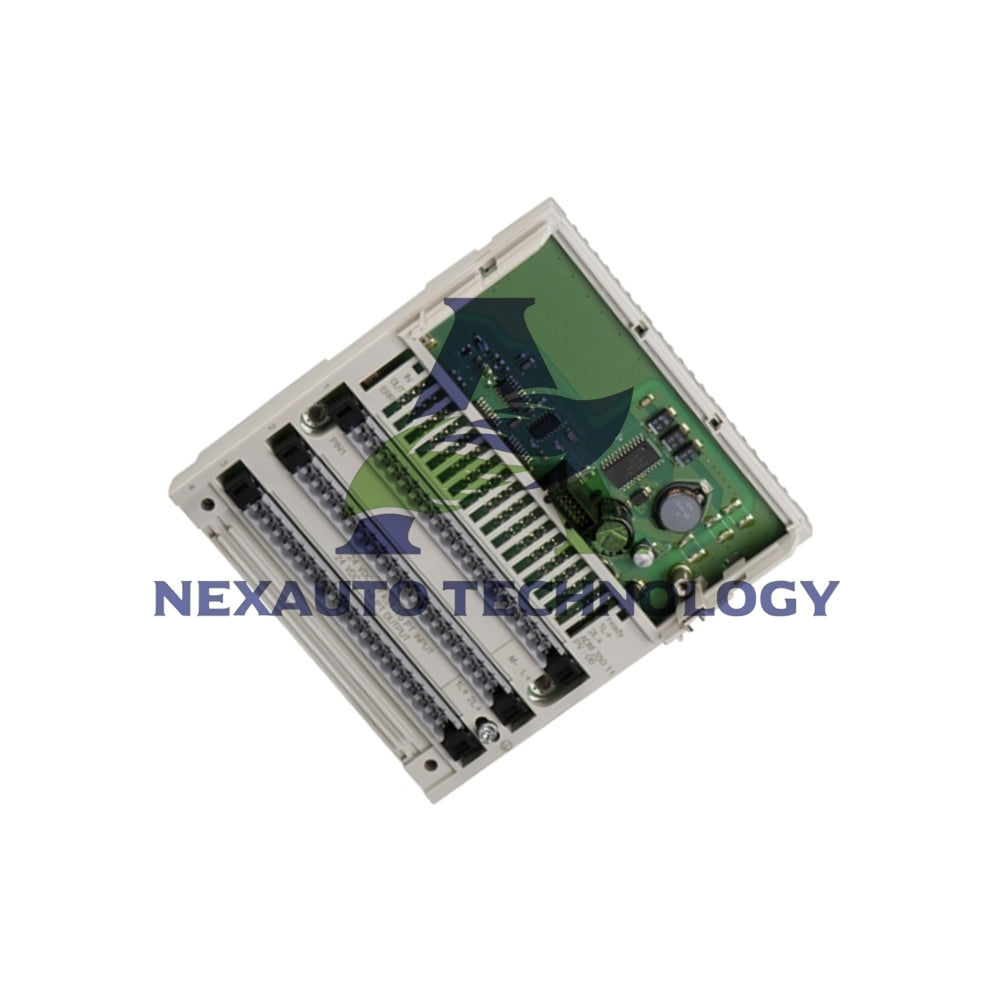

Schneider Electric 170ADM39030C I/O Base Module

The 170ADM39030C is a Discrete Relay I/O Base Module from Schneider Electric's Modicon Momentum series. It combines 10 DC inputs and 8 relay outputs in one compact unit for mixed signal control applications.

Technical Specifications

• Brand & Model: Schneider Electric 170ADM39030C
• Product Type: Discrete Relay I/O Base Module
• System Platform: Modicon Momentum
• Digital Inputs: 10 channels, positive logic
• Relay Outputs: 8 channels, AC/DC switching
• Supply Voltage: 24 V DC nominal

Input Specifications

• Input Voltage: 11-30 V DC
• Input Resistance: 4 kΩ
• Logic Type: Positive logic

Output Specifications

• Output Type: Relay contacts
• Voltage Range:
  • 20-115 V DC
  • 24-230 V AC
• Durability:
  • Mechanical: 30 million cycles
  • Electrical: 100,000 cycles (inductive)

Electrical Characteristics

• Current Consumption: 250 mA @ 24V DC
• Power Dissipation: 5.5-8.5 W
• Isolation: 500 V AC between channels and bus

Physical Specifications

• Dimensions: 125 x 141.5 x 47.5 mm (WxHxD)
• Weight: 0.26 kg (0.57 lb)
• Protection: Conformal coating (Humiseal 1A33)

Packaging Options

• Single Unit (PCE):
  • Dimensions: 26x18x9 cm
  • Weight: 519 g
• Six-Pack (S03):
  • Dimensions: 40x30x30 cm
  • Weight: 3.555 kg

Key Features

• Mixed input/output in one base
• High mechanical durability
• Wide AC/DC output voltage range
• Compact footprint
• Industrial conformal coating

Typical Applications

• Machine control interfaces
• Small relay panel control
• Mixed signal applications
• Compact automation systems

Packaging & Shipping

• Available as single unit or 6-pack
• Worldwide shipping via FedEx, UPS, DHL

FAQ

• I/O configuration? 10 DC inputs + 8 relay outputs in one module.
• Relay rating? 20-115V DC / 24-230V AC switching capability.
• Durability? 30 million mechanical, 100,000 electrical cycles.
• Power supply? 24V DC nominal, 250mA consumption.
• Isolation? 500V AC isolation between channels and bus.
