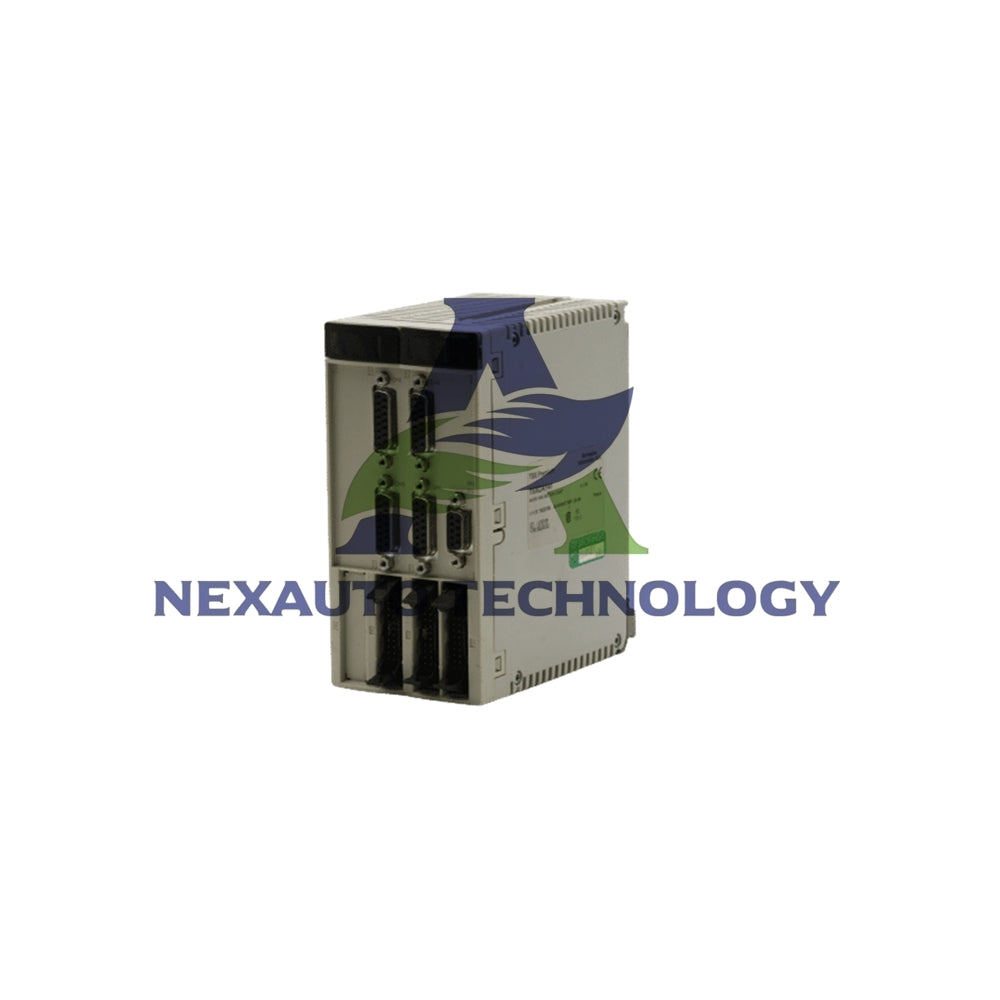

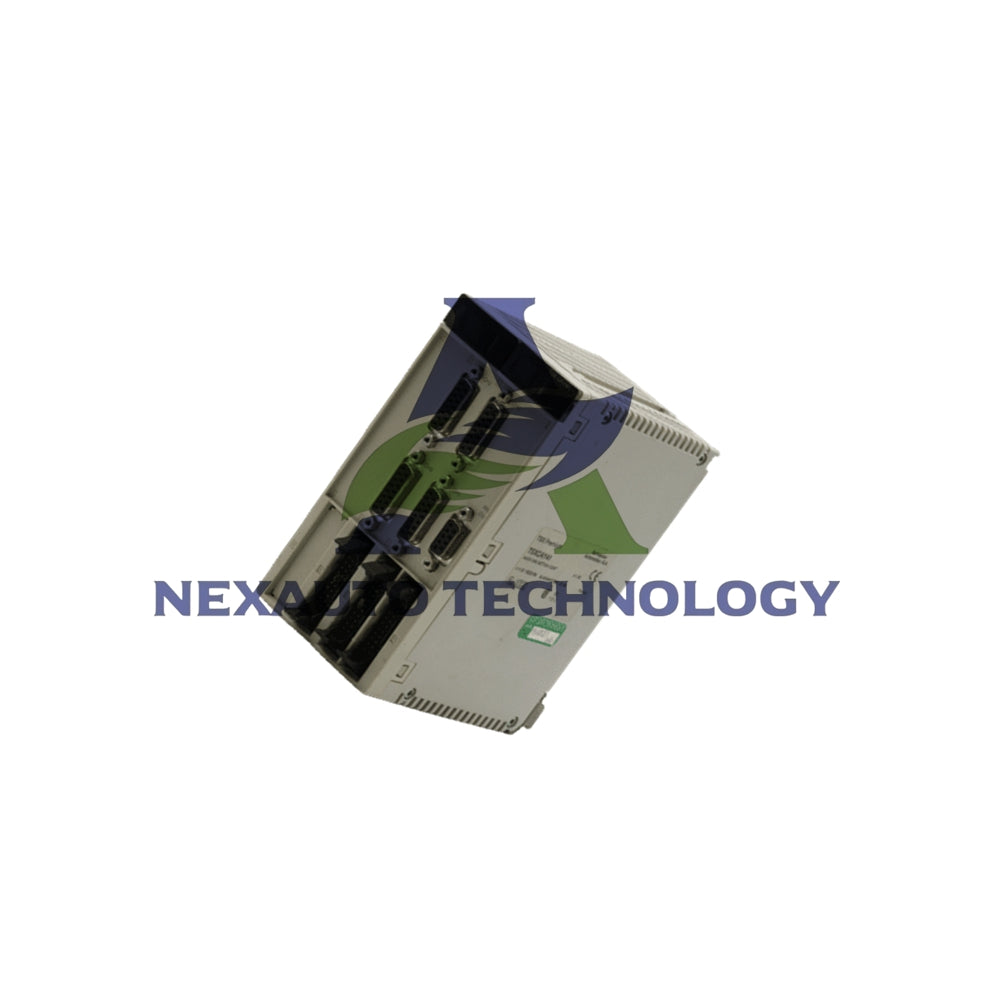

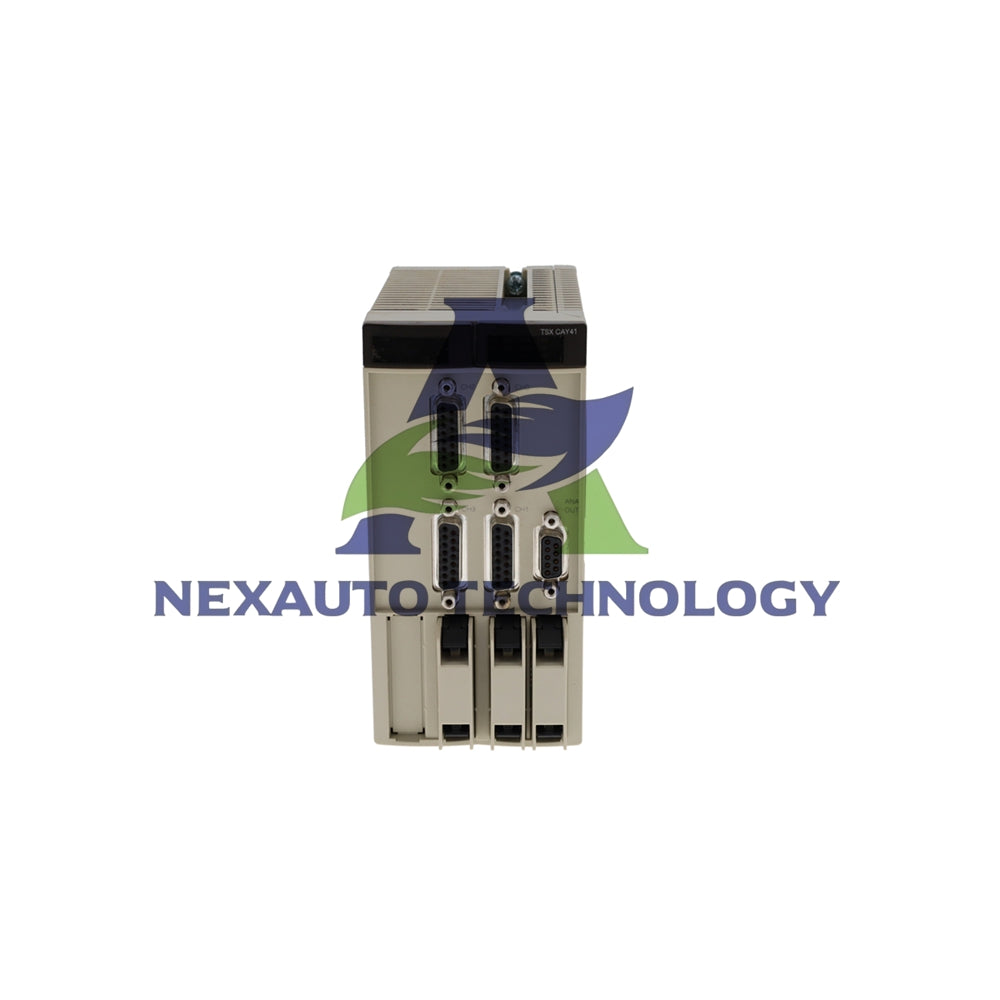

Schneider Electric TSXCAY41 | 4-Axis Motion Controller

Core Product Overview

• The Schneider Electric TSXCAY41 is a precision motion control module.
• This module delivers advanced servo motor control for industrial automation.
• It belongs to the high-performance Modicon Premium automation platform.

Key Technical Specifications

• Brand & Model: Schneider Electric TSXCAY41
• Control Axes: Manages up to 4 independent servo axes
• Power Dissipation: Efficient 10 to 17 watts range
• Input Voltages: 24V auxiliary, 24V servo drive, 5V counter input
• Encoder Support: SSI absolute (16-25 bit) & incremental encoders
• Clock Frequency: Up to 1 MHz for high-speed counting
• Acquisition Speed: 54,000 to 270,000 points per minute

Performance & Control Features

• Servo Loop: Proportional control with overshoot compensation
• Motion Profiles: Trapezoidal or parabolic speed paths
• Resolution: 0.5 to 1000 position units per point
• Acceleration Time: Adjustable from 8 ms to 10 seconds
• Operating Modes: Automatic, Manual, Direct Drive, and Follower
• Axis Types: Supports following axis and limited axis configurations

Electrical & Environmental Specifications

• Output Configuration: 4 reflex, 4 analog, and 4 validation outputs
• Analog Output: +/- 10-24V range with 13-bit resolution
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Protection Features: Short-circuit, thermal, and reverse polarity protection
• Connection: Multiple HE-10 and SUB-D connectors for flexible wiring
• Status Indicators: LED displays for run, error, and axis diagnostics

Installation & Integration

• Install the TSXCAY41 module in your TSX Micro PLC rack
• Connect servo drives using the dedicated 20-pin HE-10 connectors
• Wire encoders to the SUB-D 15 connectors for position feedback
• Configure axis parameters through your programming software
• Set motion profiles and control modes for your application

Packaging & Delivery

• One Schneider Electric TSXCAY41 motion control module
• Includes all necessary documentation and specifications
• Shipping via FedEx, UPS, or DHL express carriers
• Package dimensions: 10.2" x 7.09" x 3.7" (26x18x9.5 cm)
• Net weight: 1.34 lb (0.61 kg)

Frequently Asked Questions

What types of motors does the TSXCAY41 control?

The module is specifically designed for precise servo motor control applications.

How many axes can this module control simultaneously?

The TSXCAY41 can control up to 4 independent servo axes.

What encoder types are compatible?

It supports both SSI absolute encoders and incremental encoders.

What is the maximum encoder frequency?

It handles up to 1 MHz for high-speed incremental encoder counting.

Can I use this for simple positioning applications?

Yes, it offers multiple operating modes including direct drive and follower.

What protection features are included?

The module has short-circuit, thermal, and reverse polarity protection.

How do I monitor module status?

LED indicators show run status, errors, and individual axis diagnostics.

What programming software is required?

Use Schneider Electric's Unity Pro or compatible PLC programming software.
