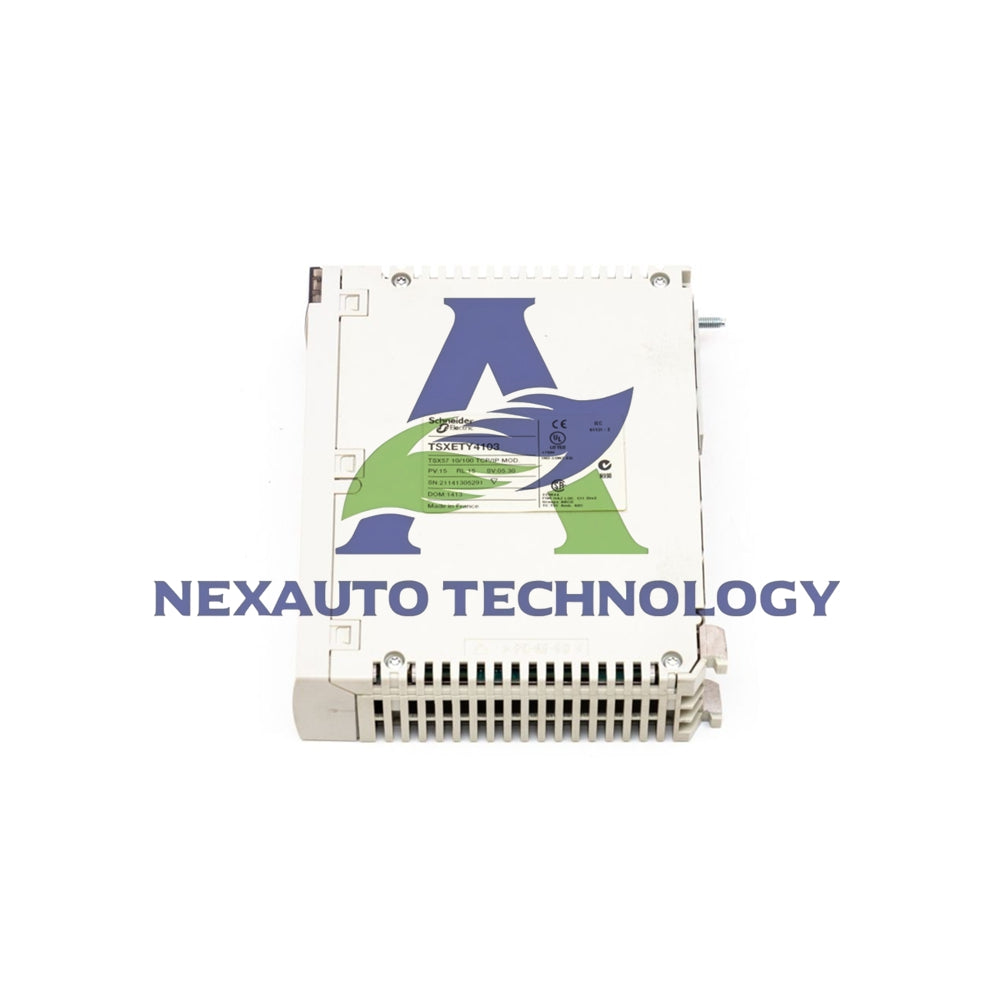

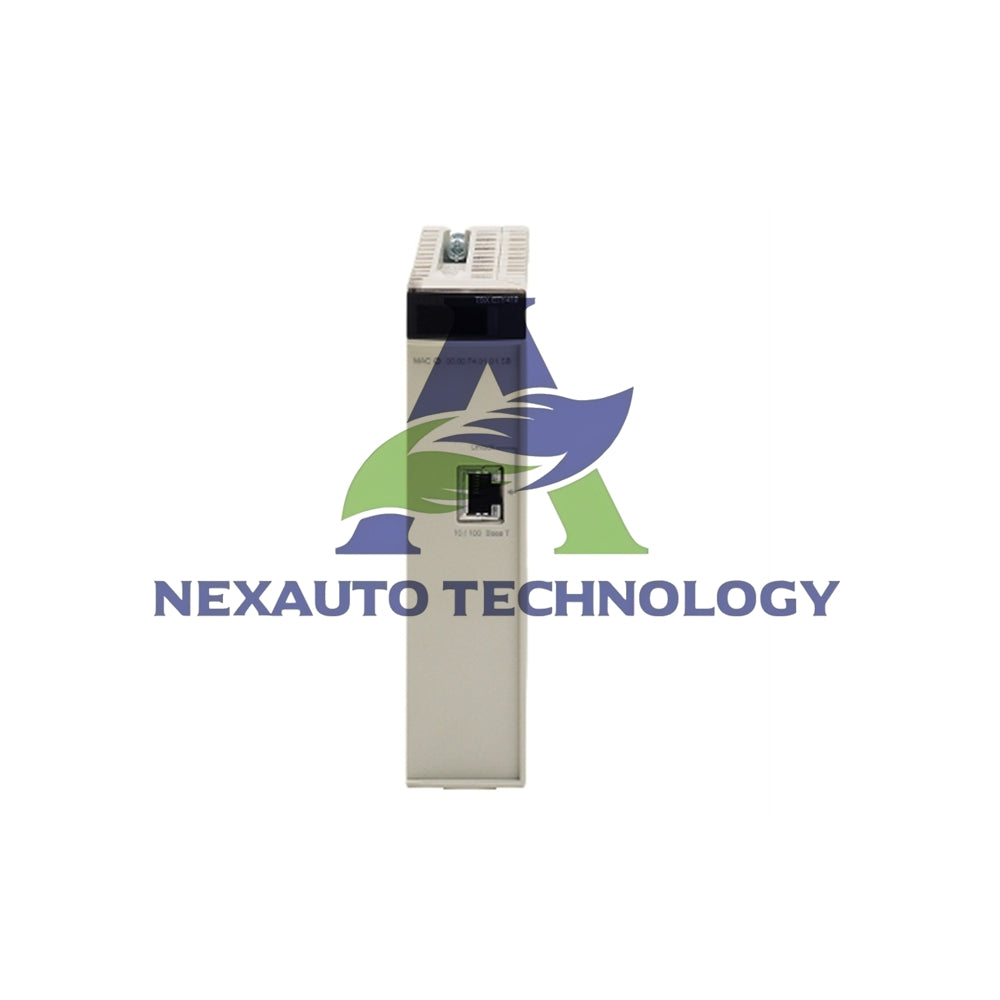

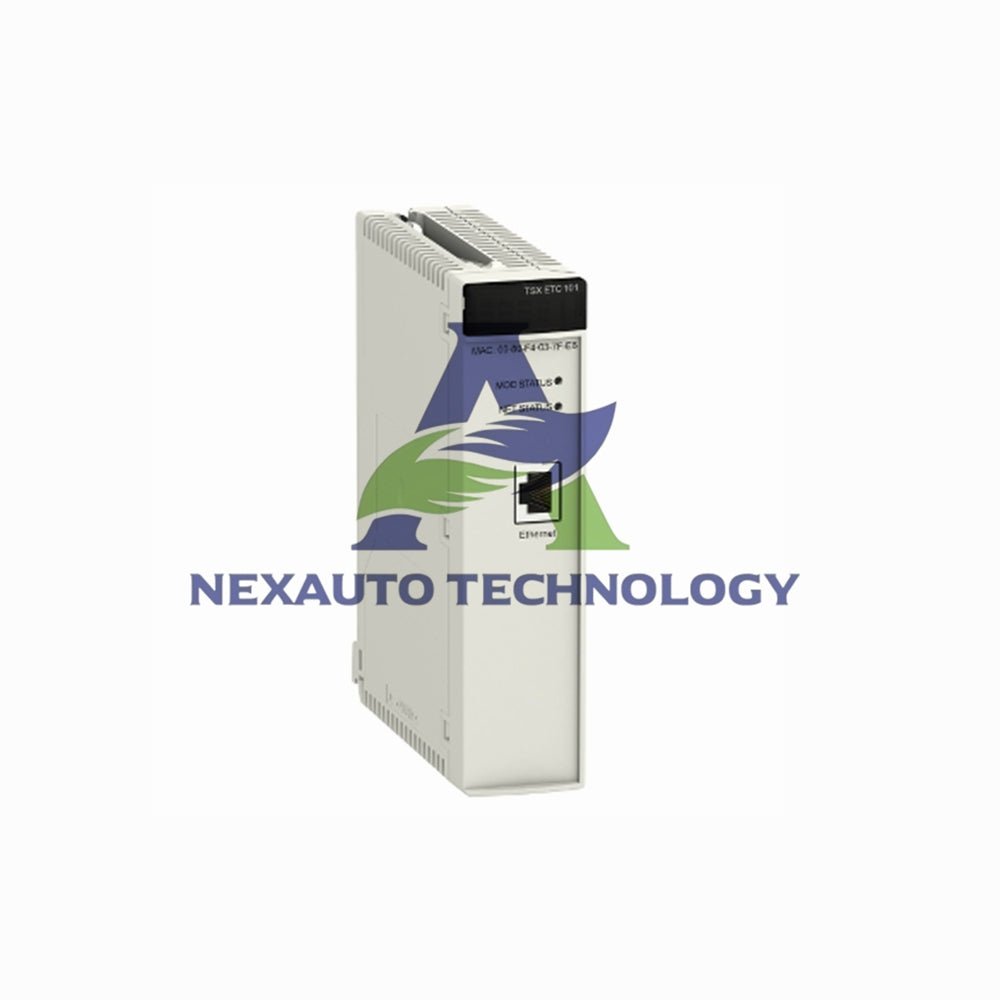

Schneider Electric TSXETY4103 Ethernet TCP/IP Module

Schneider Electric TSXETY4103 Ethernet TCP/IP Module

The TSXETY4103 is an essential communication module for Schneider Electric's TSX Micro PLC systems. It enables reliable industrial Ethernet connectivity for seamless data exchange and remote management in automation networks.

Technical Specifications

• Brand & Model: Schneider Electric TSXETY4103
• Product Type: Ethernet TCP/IP Communication Module
• Physical Interface: RJ45 port for 10BASE-T/100BASE-TX twisted pair connection
• Transmission Speed: 10/100 Mbit/s auto-negotiating
• Communication Protocols: Modbus TCP and Uni-Telway
• Max Concurrent Connections: 64 simultaneous connections
• Current Consumption: 360 mA at 5 V DC from the rack supply

Communication & Network Features

• Comprehensive communication services including Modbus TCP messaging and I/O scanning
• Advanced web services with transparent ready class B30 web server
• Integrated web features: Rack viewer and Data Editor accessible via PC
• SMTP e-mail notification capability for alarm and event reporting
• SNMP agent support for network management integration
• Global Data services and Uni-TE messaging for platform communication
• FDR server functionality for fast device replacement

Design & Compatibility

• Module Format: Standard format for TSX Micro PLC racks
• Software Compatibility: Works with PL7 Pro and Unity Pro programming software
• Power Supply: Powered directly through the PLC rack's backplane
• Net Weight: Lightweight design at only 0.34 kg (0.75 lbs)
• LED Indicators: Four status LEDs for immediate network diagnostics

Status Monitoring & LEDs

• COL LED (Yellow): Indicates network collision detection
• RUN LED (Green): Shows Ethernet network operational status
• ERR LED (Red): Alerts to Ethernet port faults or errors
• TX/TR LED (Green): Blinks during data transmission and reception activity

Environmental Specifications

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Relative Humidity: 10 to 95% at 60°C without condensation
• Protection Rating: IP20 enclosure for basic environmental protection
• Certifications: Complies with UL 508, EN 61131-2, and FM Class 1 Div 2 standards

Packaging & Shipping

• Each TSXETY4103 module is packaged individually (1 PCE per box).
• Package Dimensions: 26.0 cm L x 18.0 cm W x 5.5 cm H (10.2 x 7.09 x 2.2 in).
• Package Weight: 426.0 g (15.0 oz).
• Global express shipping via FedEx, UPS, and DHL is available.

Frequently Asked Questions (FAQ)

• What PLC systems is this compatible with? It is designed for the TSX Micro PLC series within the Modicon Premium platform.
• Does it support Modbus communication? Yes, it natively supports Modbus TCP protocol for industrial networking.
• How many devices can connect to it? It supports a maximum of 64 concurrent connections.
• What do the different LED colors mean? Green indicates normal operation (RUN, TX/TR), red indicates a fault (ERR), and yellow indicates a collision (COL).
• Can I access data via a web browser? Yes, the built-in web server allows rack viewing and data editing from a PC.
• How is the module powered? It draws 5V DC power directly from the TSX PLC rack's backplane.
