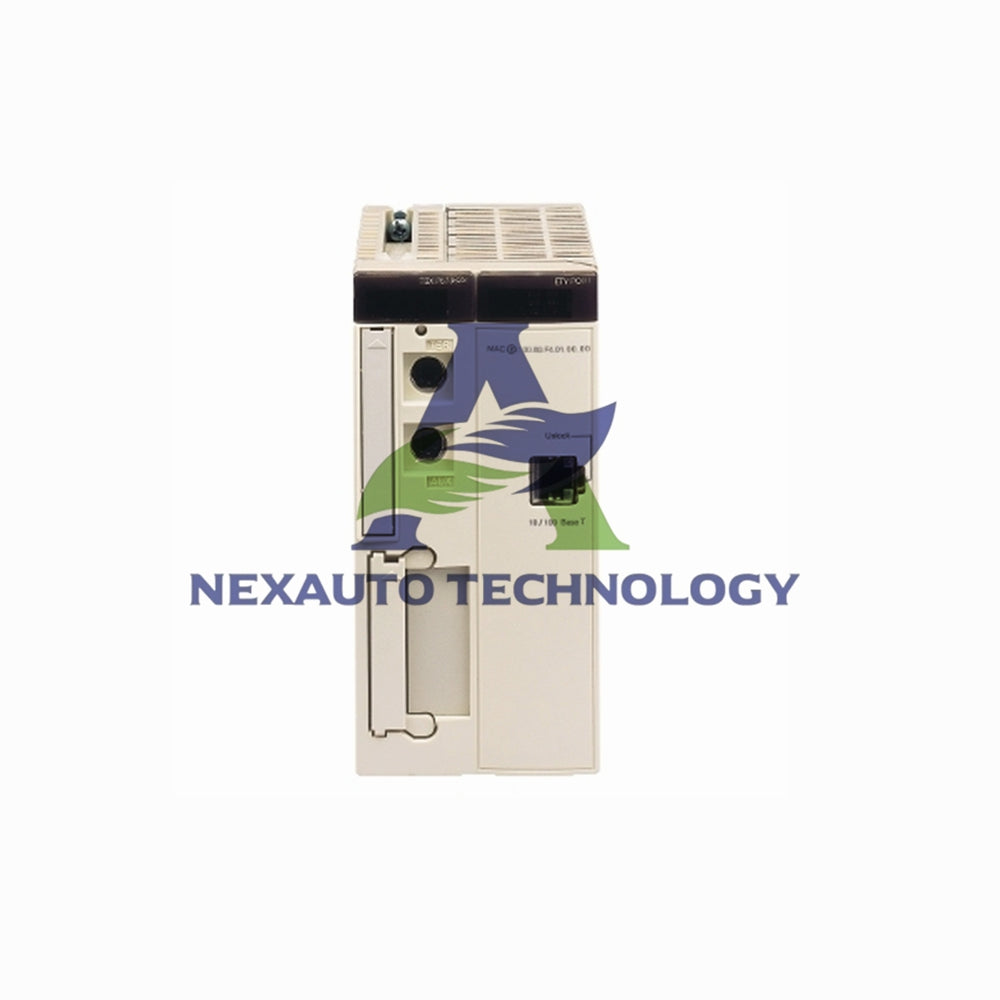

Schneider Electric TSXP573623M TSX Micro PLC Processor

Introducing the Schneider Electric TSXP573623M Micro PLC

The TSXP573623M is a high-performance programmable logic controller in the TSX Micro series. This PLC delivers substantial I/O capacity and fast processing for complex automation tasks. It combines robust processing power with flexible communication options for modern industrial applications.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric TSXP573623M
• Discrete I/O Capacity: Supports up to 1024 discrete I/O points
• Analog I/O Capacity: Manages up to 128 analog I/O channels
• Processing Speed: Executes 4.49 to 6.57 Kinst/ms depending on configuration
• Boolean Execution: Fast 0.12 µs per Boolean instruction
• Internal Memory: Provides 64Kwords of program and data storage
• Expanded Memory: Supports PCMCIA card for additional 80Kwords data memory
• Controller Weight: Compact design at 1.00 lb (0.45 kg)

System Architecture & Communication

• Integrated Communication: Ethernet TCP/IP (10/100 Mbit/s, RJ45) port
• Serial Communication: Two non-isolated mini DIN serial links
• Expansion Capacity: Supports up to 16 expansion racks
• Fieldbus Modules: Accommodates 2 fieldbus modules (or 1 with CANopen)
• AS-Interface Support: Manages up to 8 AS-Interface bus modules
• PCMCIA Slots: Two slots for memory and communication expansion

Advanced Control Features

• Task Management: Handles 1 master, 1 fast, and 64 event tasks
• Process Control: Supports 15 channels for up to 45 simple control loops
• Front Panel: Features multiple status LEDs and a RESET button
• Package Dimensions: 26.0 cm L x 18.0 cm W x 9.0 cm H
• Shipping Weight: Package weighs 763.0 g

Packaging & Shipping Information

• Package Includes: One (1) TSXP573623M micro PLC unit
• Shipping Methods: Global shipping via FedEx, UPS, and DHL
• Standard Packaging: Protective packaging for sensitive electronic controllers

Installation & Configuration Guide

• Install this PLC in your industrial control panel or DIN rail mounting system
• Connect to your network using the integrated Ethernet TCP/IP port
• Expand I/O capacity by adding up to 16 expansion racks as needed
• Utilize PCMCIA slots for additional program memory or communication cards
• Configure the task structure (master, fast, and event tasks) for your application
• Use the front panel RESET button for cold start initialization when required

Frequently Asked Questions (FAQ)

What is the total I/O capacity of this PLC?

The TSXP573623M supports a total of 1024 discrete I/O points and 128 analog I/O channels for comprehensive control system design.

What communication interfaces are built-in?

This PLC includes an Ethernet TCP/IP port (10/100 Mbit/s) and two serial communication ports for flexible device connectivity.

How does the PCMCIA card affect performance?

With a PCMCIA card, data memory expands to 80Kwords, but Boolean instruction execution slightly increases to 0.17 µs compared to 0.12 µs without the card.

Can this PLC handle process control applications?

Yes, it supports 15 process control channels capable of managing up to 45 simple control loops for basic regulatory control tasks.

What is the advantage of the multiple task structure?

The multi-task architecture (master, fast, event tasks) allows prioritization of critical operations and efficient handling of interrupt-driven events.
