Schneider Electric TSXPSY1610M PLC Power Supply Module

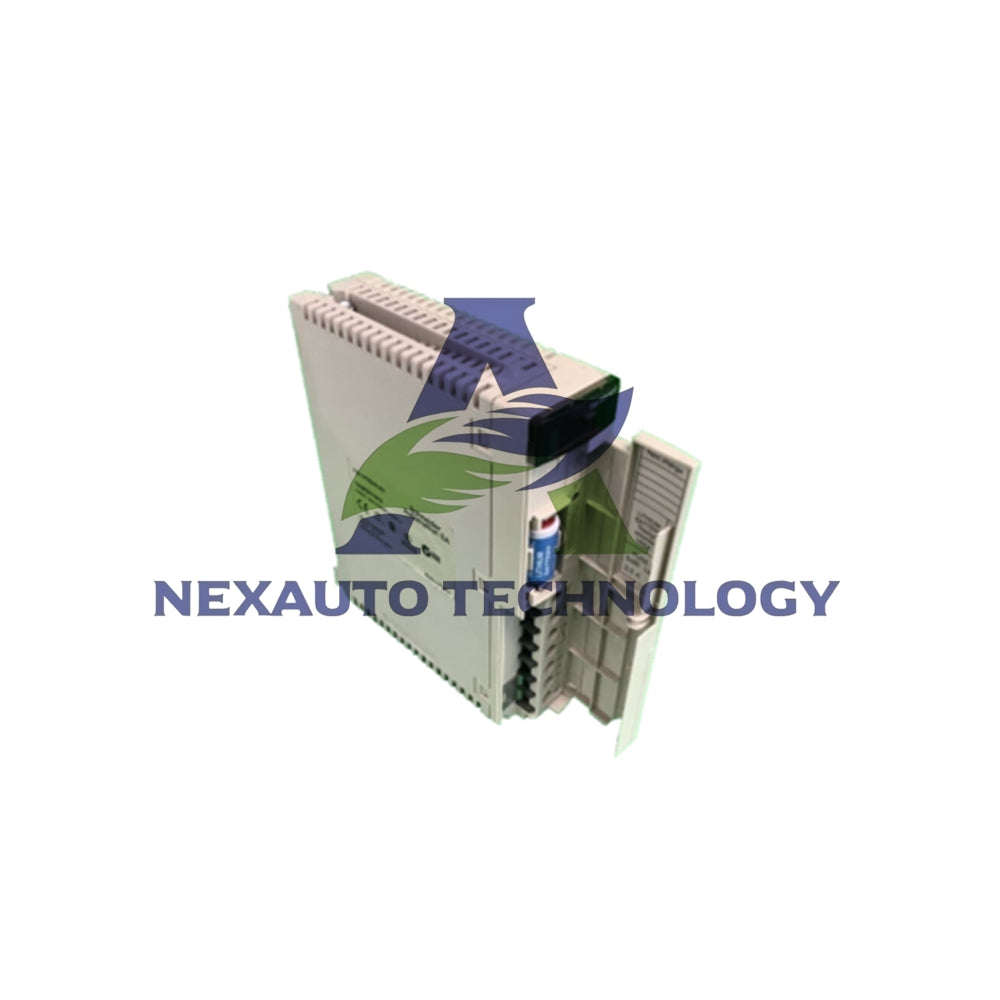

Schneider Electric TSXPSY1610M Power Supply Module

The TSXPSY1610M from Schneider Electric delivers reliable power to TSX Micro PLC systems. This robust module ensures stable operation in demanding industrial environments with comprehensive protection features.

Technical Specifications

• Brand & Model: Schneider Electric TSXPSY1610M
• Primary Voltage: 24 V DC with a wide operating range from 19.2 to 30 V
• Total Output Power: 30 Watts maximum useful secondary power
• Secondary Outputs: 0.6 A at 24 V DC for relays and 3 A at 5 V DC
• Input Current: ≤ 1500 mA at 24 V input
• Inrush Current: 100 A at 24 V upon activation

Protection & Safety Features

• Internal time-delayed fuse rated at 3.5 A (5 x 20 mm) on the primary circuit
• Integrated overload, overvoltage, and short-circuit protection on secondary circuits
• Dielectric strength of 2000 V between primary/earth and primary/secondary
• Immunity to micro-breaks in power supply for up to 1 millisecond

Environmental Durability

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Relative Humidity: 10 to 95% non-condensing for operation
• Operating Altitude: Up to 2000 meters (6562 feet)
• Protection Rating: IP20 and Pollution Degree 2
• Protective Treatment: TC specification for industrial environments

Design & Signalling

• Standard module format for easy integration into TSX Micro PLC racks
• Clear local LED indicators: a green LED for power presence (OK) and a red LED for battery fault (BAT)
• Net weight of 0.54 kg (1.19 lb) for simple handling

Packaging & Shipping

• Each TSXPSY1610M module ships in its individual package.
• Package contains 1 piece (PCE).
• Package Dimensions: 26.0 cm L x 18.0 cm W x 5.5 cm H (10.2 x 7.09 x 2.2 in).
• Package Weight: 619.0 g (21.8 oz).
• We ship globally via reliable carriers like FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

• What PLC is this power supply for? It is designed specifically for the Schneider Electric TSX Micro and Modicon Premium PLC platform.
• Can it handle voltage fluctuations? Yes, the primary input range is 19.2 to 30 V DC, and it has overvoltage protection.
• What does the red BAT LED mean? It indicates a fault with the backup battery for the PLC's real-time clock/memory.
• Is this a plug-and-play module? Yes, it installs directly into the power supply slot of the compatible TSX Micro PLC rack.
