Product Specifications
Brand: Allen-Bradley

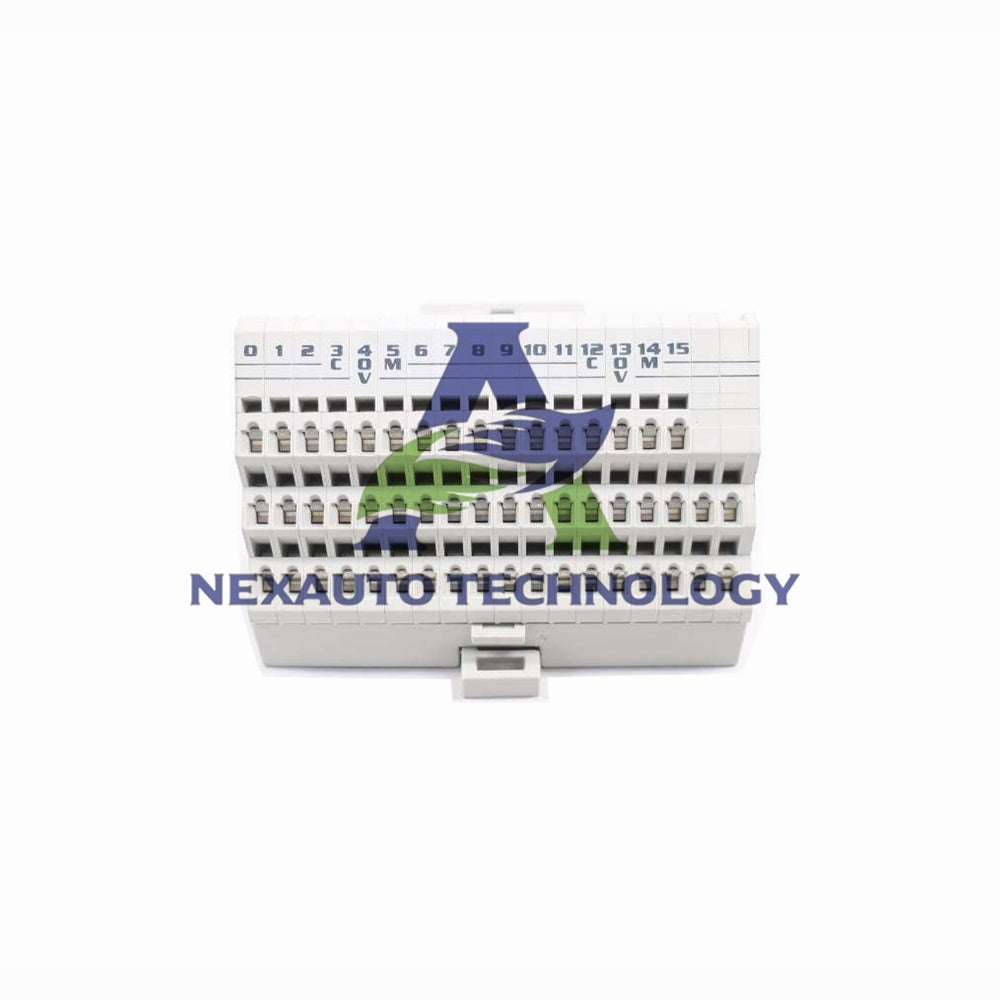

Part Number/Catalog No.: 1794-TB3S
Product Type: Flex I/O Terminal Base Unit
Electrical Characteristics
-
Terminal Screw Torque: 0.56-0.79 Nm
-
Supply Voltage Range: max. 125V DC/AC, 50/60Hz, 10A
-
Isolation Voltage: 125V Continuous
-
Voltage Rating: 24V DC/AC, 120V DC/AC
-
Flexbus Rating: 640 mA at 5V DC
Physical Characteristics
-
Weight: 170g
-
Dimensions (LxWxH): 110mm x 87mm x 41mm
-
Mounting Type: DIN rail
Environmental Parameters
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Humidity Range: 5% to 95% (non-condensing)
-
Ingress Protection Rating: IP20
-
Vibration Resistance: 5g, 10-500 Hz
-
Shock Resistance: 30g
