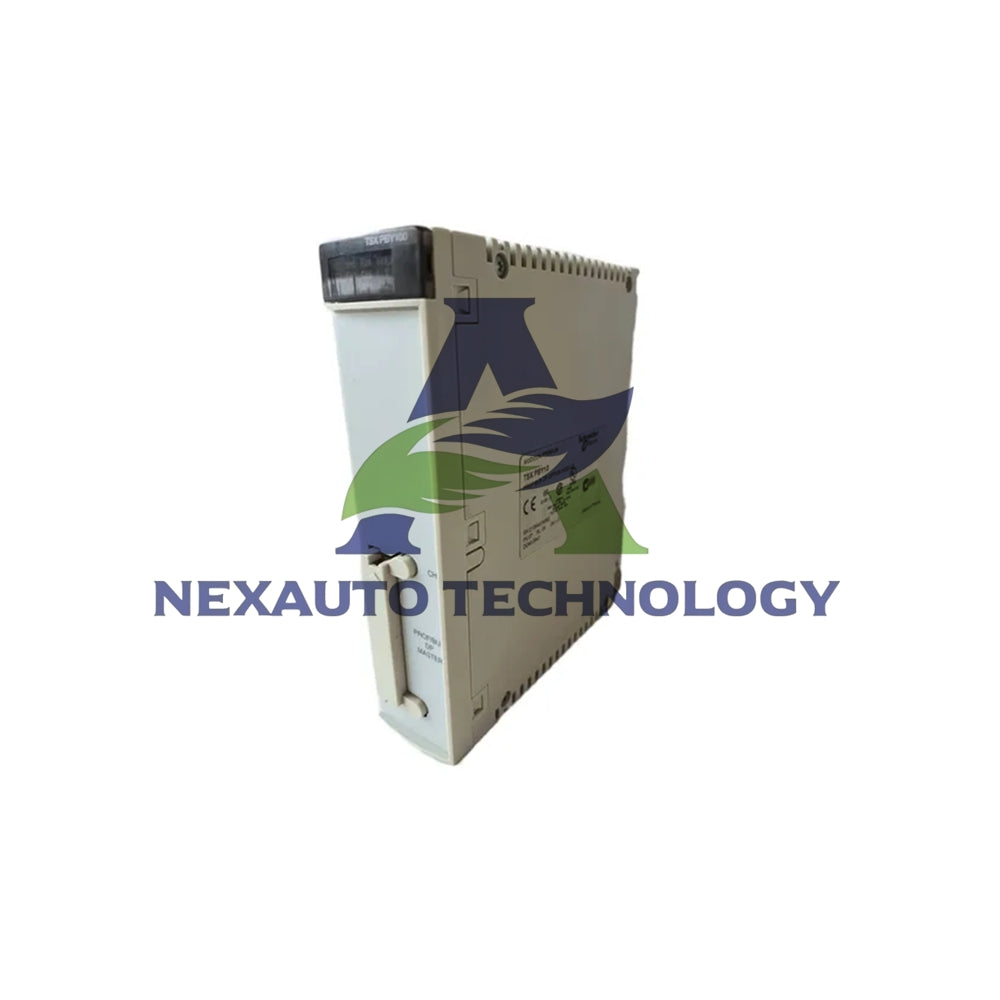

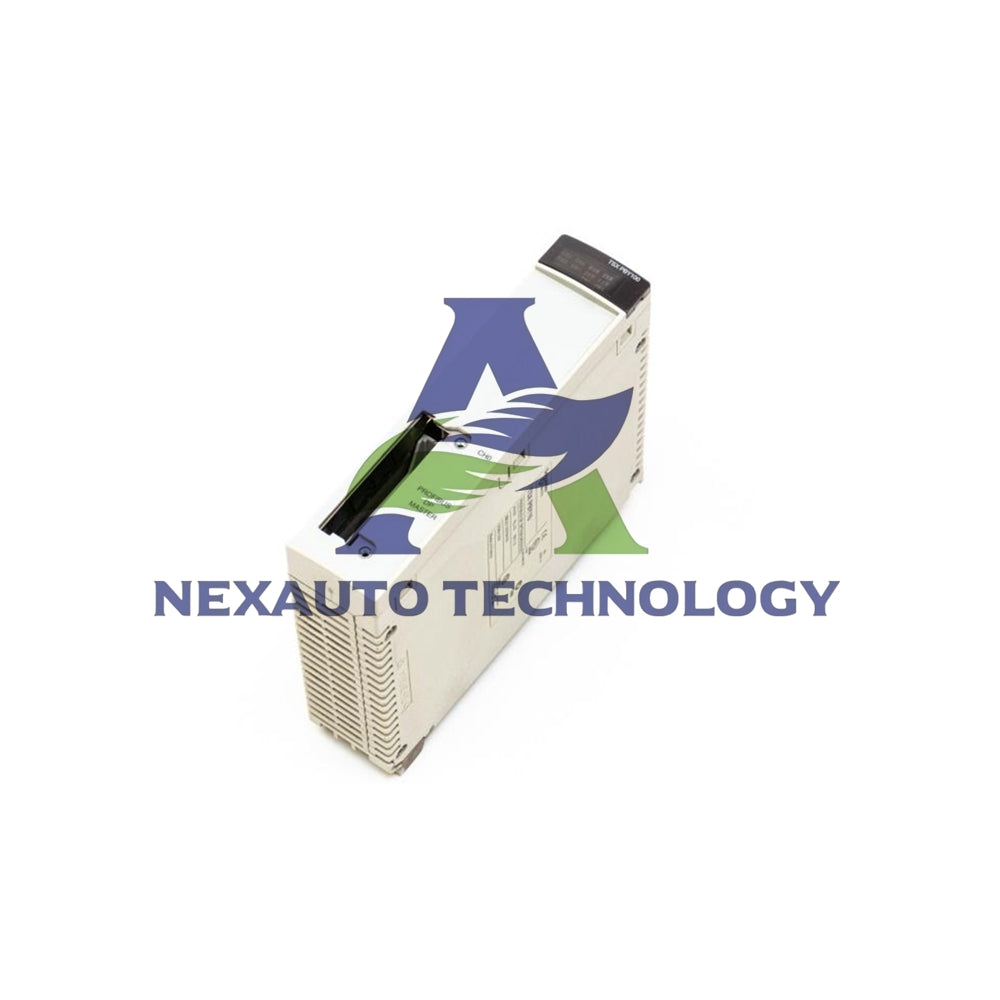

Introducing the Schneider Electric TSXDSY32T2K Output Module

The TSXDSY32T2K is a high-density solid-state output module for TSX Micro PLC systems. This module provides thirty-two discrete outputs for industrial control applications. It offers fast switching with comprehensive electrical protection for reliable operation.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric TSXDSY32T2K
• Output Configuration: 32 solid-state protected outputs
• Output Voltage: 24 V DC positive (19-30V range)
• Current per Channel: Each channel rated for ≤ 0.1 A
• Module Current: Maximum total current of ≤ 3.2 A
• Switching Speed: Fast 1.2 ms response time
• Residual Voltage: Low < 1.5 V for energy efficiency
• Paralleling Option: Supports output paralleling (up to 3 outputs)

Comprehensive Protection Features

• Overvoltage Protection: Transil diode protection against voltage spikes
• Reverse Polarity: Reverse mounted diode for polarity protection
• Overload Protection: Automatic trip for overload conditions
• Short-Circuit Protection: Automatic trip for short-circuit events
• Leakage Current: Low < 0.1 mA at 30V for sensitive applications
• Load Compatibility: Minimum > 220 Ω load impedance required

Robust Design & Operating Environment

• Protection Rating: IP20 enclosure for basic protection
• Operating Temperature: Reliable from 0°C to 60°C (32-140°F)
• Storage Temperature: Withstands -25°C to 70°C (-13 to 158°F)
• Humidity Range: Operates at 10-95% RH without condensation
• Module Weight: 0.7 lb (0.3 kg) net weight
• Package Dimensions: 10.2" L x 7.09" W x 2.2" H (26 x 18 x 5.5 cm)
• Shipping Weight: Package weighs 14.7 oz (417 g)

Packaging & Shipping Information

• Package Includes: One (1) TSXDSY32T2K output module unit
• Shipping Methods: International shipping via FedEx, UPS, and DHL
• Certifications: CE, UL 508, IEC 61131-2, CSA, and marine classifications (ABS, DNV, etc.)

Installation & Configuration Guide

• Install this module in your TSX Micro PLC rack system
• Connect 24V DC power within the 19-30V specified range
• Wire loads to the thirty-two solid-state output channels
• Parallel outputs (maximum 3) for higher current applications if needed
• Ensure connected loads exceed 220 Ω impedance for proper operation
• The module automatically protects against overloads and short circuits

Frequently Asked Questions (FAQ)

What types of loads can this module drive?

The TSXDSY32T2K drives DC loads like relay coils, solenoid valves, indicator lamps, and small DC actuators within its 0.1A per channel rating.

Can outputs be paralleled for higher current?

Yes, you can parallel up to three outputs to achieve a maximum combined current of 0.3A for a single load.

What is the advantage of solid-state outputs?

Solid-state outputs provide fast switching (1.2ms), long life with no moving parts, and silent operation compared to mechanical relays.

Is external protection required?

No, the module includes built-in protection against overvoltage, reverse polarity, overloads, and short circuits through automatic trip mechanisms.

What standards does this module comply with?

This module complies with EN/IEC 61131-2, UL 508, CSA standards, and carries CE marking for European market requirements.
