Toshiba VFS15-4075PL-W1 VFD Drive | 10 HP 460V S15 Series

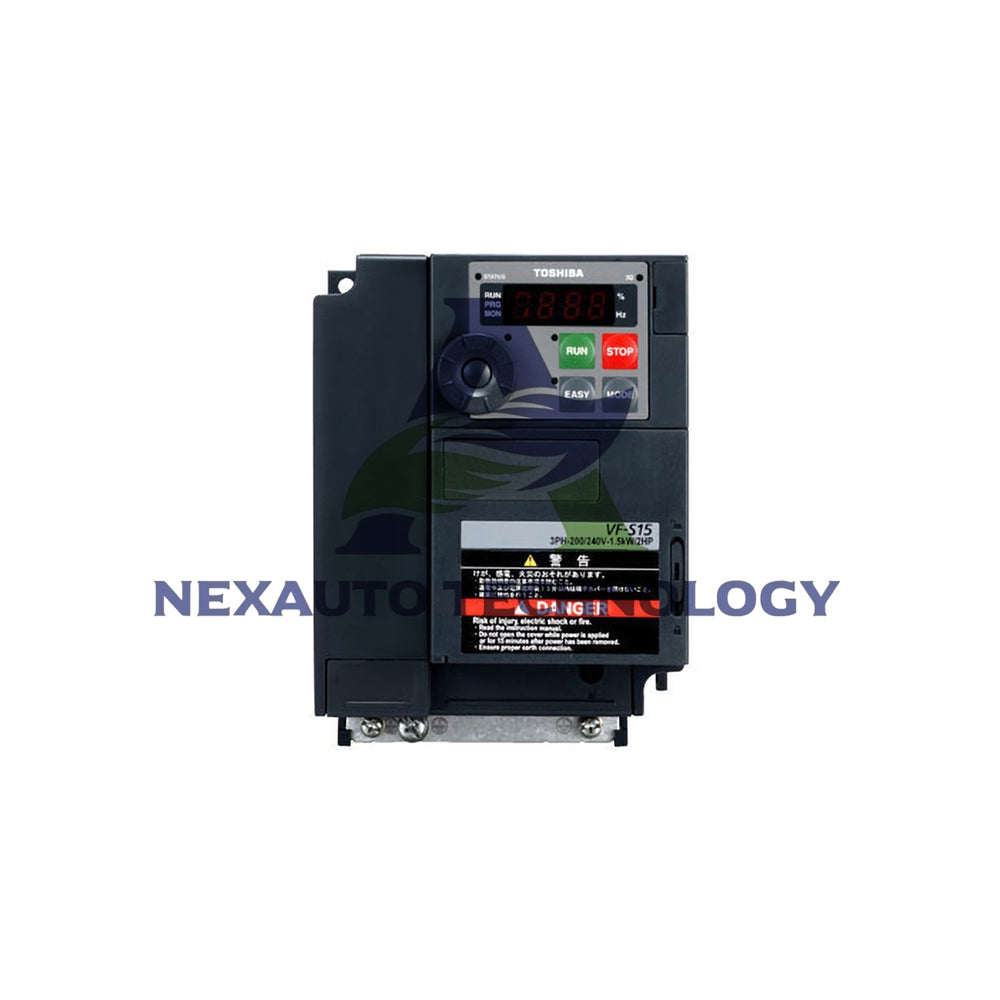

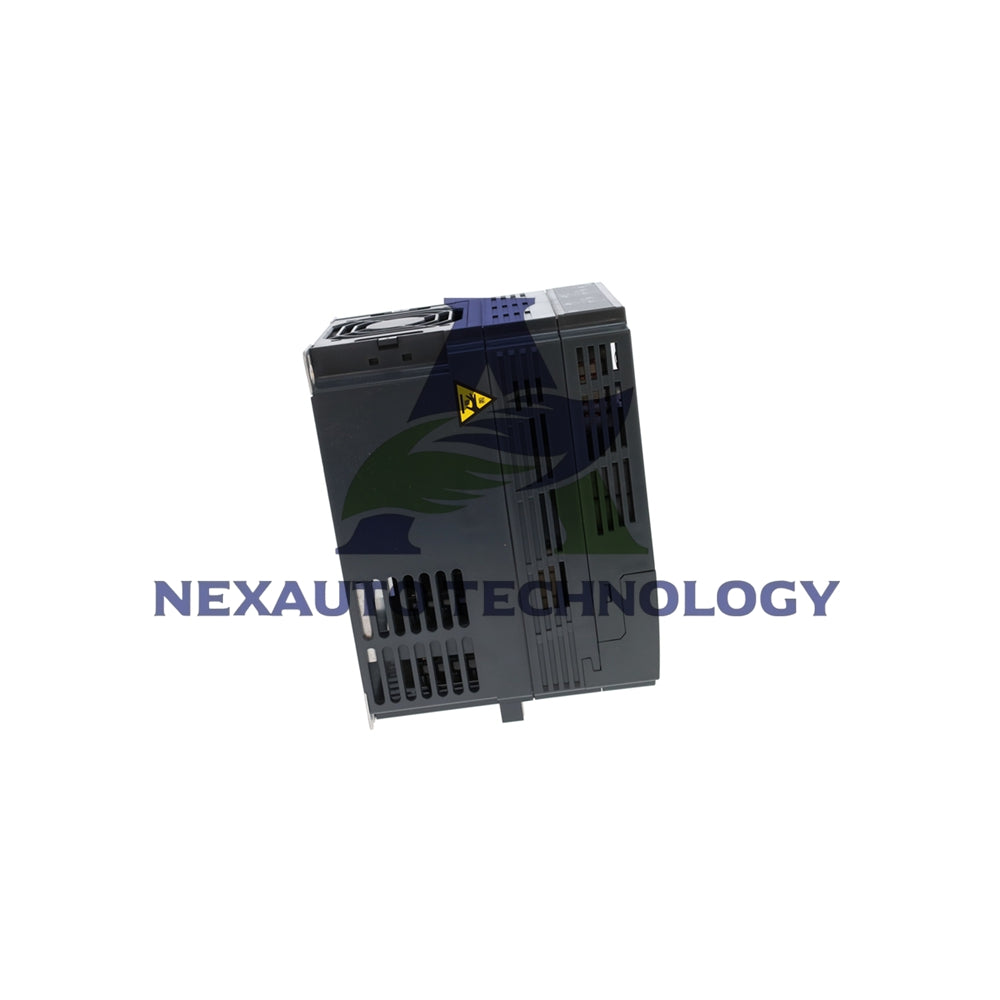

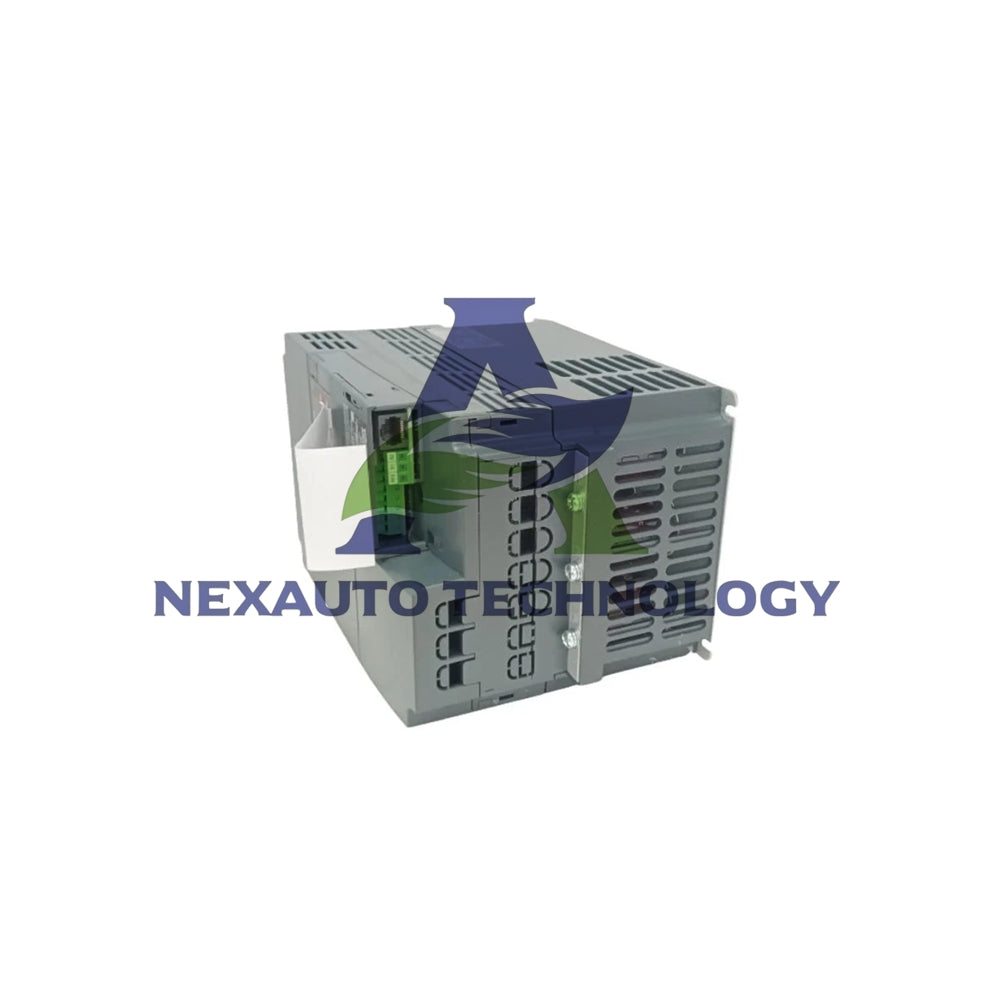

The Toshiba VFS15-4075PL-W1 is a high-performance micro adjustable speed drive from the VF-S15 series. This 10 HP, 460V AC drive offers reliable control for variable and constant torque applications. It features advanced capabilities like permanent magnet (PM) motor support and built-in safety functions.

Core Technical Specifications

• Brand & Model: Toshiba VFS15-4075PL-W1
• Series: VF-S15 Series Adjustable Speed Drive
• Horsepower: 10 HP
• Supply Voltage: 3-Phase, 460 VAC
• Full Load Current: 17 Amps
• Frequency Range: 0.1 to 500.0 Hz (Default 0.5-60 Hz).
• Control Method: Sinusoidal PWM for smooth motor operation.

Key Features & Capabilities

• Motor Compatibility: Works with both standard induction and Permanent Magnet (PM) motors.
• Overload Capacity: 110% continuous overload; 150% for 60 seconds.
• Safe Torque Off (STO): Integrated safety function compliant with safety standards.
• Auto-Restart: Can catch a spinning motor and restart automatically.
• Built-in EMC Filter: High-attenuation filter for reduced electromagnetic interference.
• Ten-Year Design Life: Engineered for long-term reliability.

I/O & Connectivity

• Digital Inputs: 6 programmable discrete inputs.
• Digital Outputs: 3 outputs (1 Form-A relay, 1 Form-C relay, 1 open collector).
• Analog Inputs: 3 inputs (4-20 mA, 0-10 VDC, ±10 VDC).
• Analog Output: 1 programmable output (4-20 mA or 0-10 VDC).
• Communication: 2-wire RS485 serial communication port.
• Display: Built-in 4-digit, 7-segment LED operator interface (EOI).

Physical & Environmental Data

• Enclosure: IP20 rated for wall-mount installation in a protective cabinet.
• Operating Temperature: -10°C to 50°C (14°F to 122°F).
• Operating Humidity: Up to 95% non-condensing.
• Operating Altitude: Up to 1000 meters without derating.

Compliance & Diagnostics

• Certifications: UL Listed (US & Canada), CSA, CE marked.
• Fault Logging: Stores the last eight fault codes with operational data at the time of the trip for easy troubleshooting.

Frequently Asked Questions (FAQ)

What types of applications is this drive suited for?

It is ideal for pumps, fans, conveyors, mixers, and other machinery requiring variable speed control for energy savings or process improvement.

What is the advantage of PM motor support?

Permanent magnet motors are more efficient and can provide higher torque at low speeds. This compatibility gives you more flexibility in selecting the optimal motor for your application.

What does Safe Torque Off (STO) do?

STO is a safety function that prevents the drive from generating output torque, allowing for safe maintenance and interaction with the driven machine without full power disconnection.

How do I program and monitor the drive?

You can use the built-in keypad and display for basic setup. For advanced programming and monitoring, use Toshiba's dedicated drive configuration software via the RS485 port.

Does it include a braking resistor?

No, a braking resistor is not included. One can be added externally if your application requires frequent deceleration or overhauling loads to dissipate regenerative energy.
