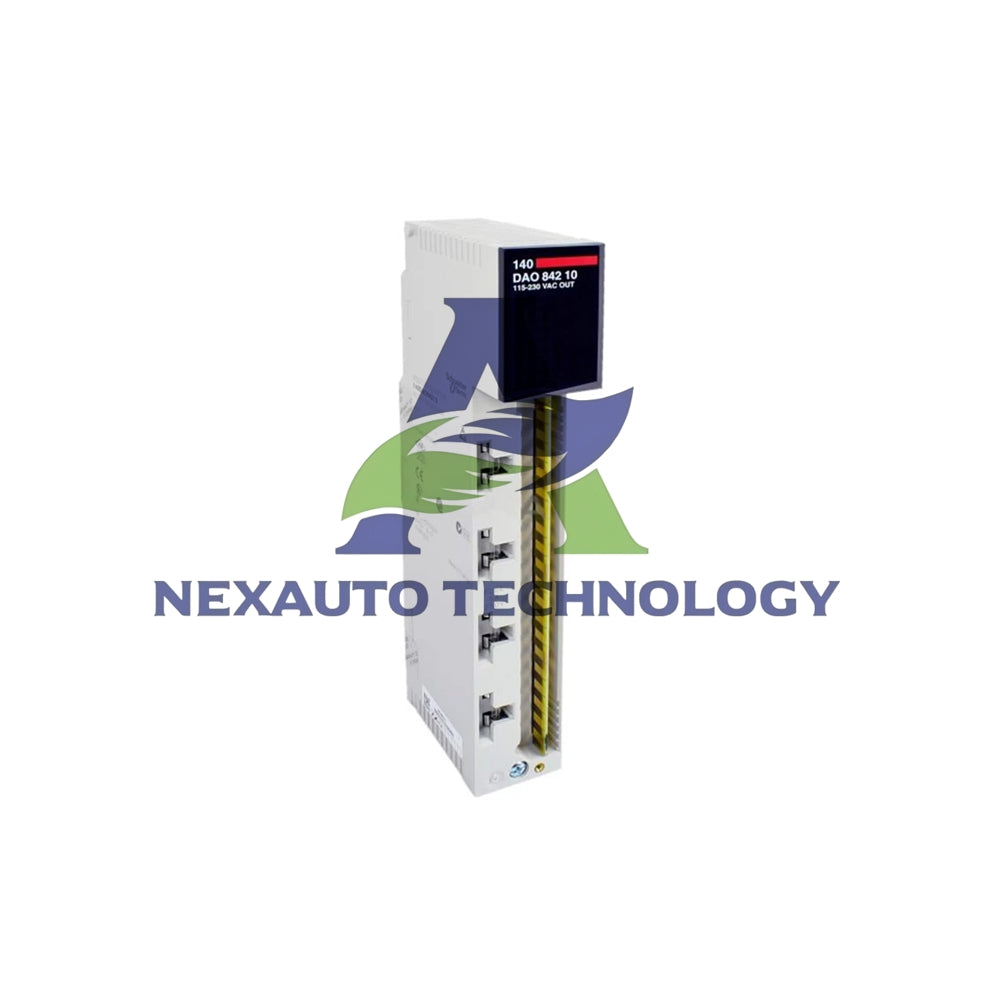

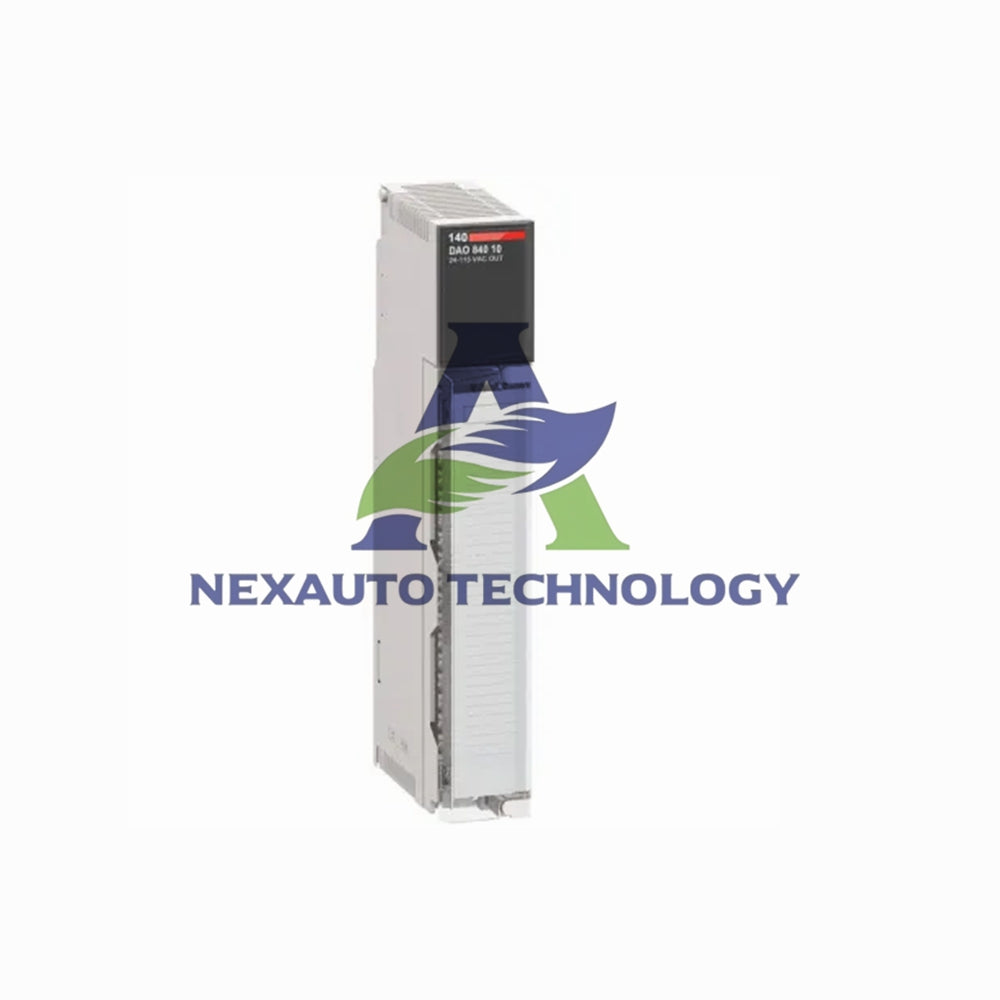

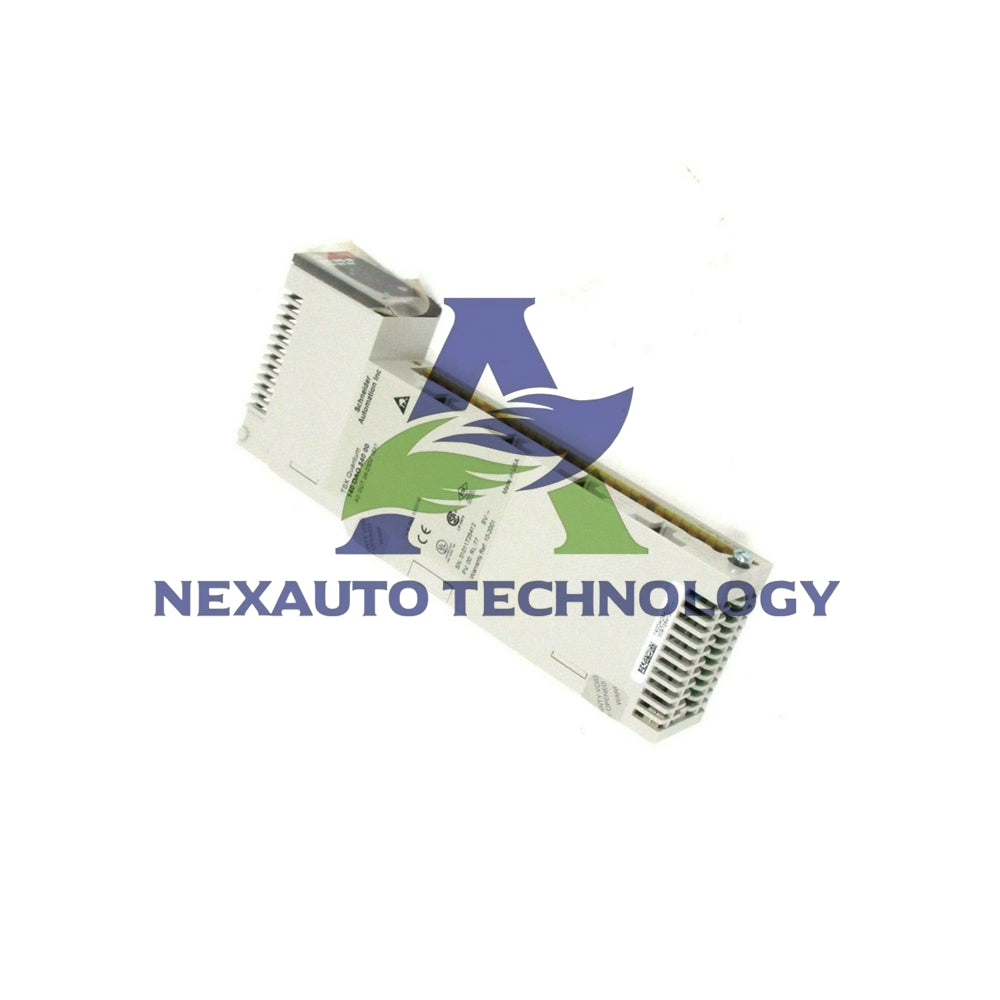

Schneider Electric 140DAO84210C 230VAC Output Module

Schneider Electric Modicon Quantum Output Module

The 140DAO84210C is a 16-channel AC output module from Schneider Electric's Modicon Quantum series. This module provides reliable high-voltage output capability for industrial control systems. It supports 100-230VAC operation with fast response times.

Core Technical Specifications

• Brand & Model: Schneider Electric 140DAO84210C (Modicon Quantum Series)
• Output Channels: 16 discrete AC output channels
• Operating Voltage: 100-230 Volts AC range
• Output Voltage: 83-253 Volts AC operational range
• Supply Frequency: 47-63 Hertz operational range
• Channel Groups: 4 groups of 4 channels each
• Address Requirement: 1 output word for system addressing

Electrical & Current Specifications

• Output Current: 3A per output (170-253V), 4A (85-132V)
• Module Current: 16 Amps RMS total module capacity
• Group Current: 4 Amps RMS per group maximum
• Minimum Load: 5 Amps module minimum load
• Leakage Current: 2-2.5mA per output off-state
• Bus Current: 350 mA backplane requirement

Performance & Timing Specifications

• Response Time: ≤0.5 milliseconds for state changes
• Voltage Drop: 1.5 Volts maximum voltage drop
• Surge Current: 10-30A per point, 25-45A per group
• Absolute Maximum: 300Vrms 10s, 400Vrms 1 cycle
• dv/dt Rating: 400 Volts per millisecond
• Power Dissipation: 1.85W + (1.1V × total load current)

Protection & Safety Features

• Fuse Protection: 5 Ampere internal fuse per circuit
• RC Filter: Internal RC filter for protection
• Fault Indication: Blown fuse and field power loss detection
• ESD Protection: 4kV contact, 8kV air discharge
• EMC Immunity: 10V/m 80-1000MHz
• Certifications: FM Class 1 Div 2, cUL, CE, CSA

Environmental & Physical Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Altitude: Up to 5000 meters (16404 feet)
• Module Weight: 0.45 kilograms (0.99 pounds)
• Relative Humidity: 95% maximum non-condensing
• Protective Coating: Conformal coating

Indicator & Monitoring Features

• Channel LEDs: 16 green output status indicators
• Active LED: Green bus communication indicator
• Fault LED: Red external fault detection
• Diagnostic Capability: Comprehensive status monitoring
• Module Format: Standard Quantum dimensions
• Package Weight: 664 grams shipping weight

Installation Guidelines

• Install in Modicon Quantum series control racks
• Connect 100-230VAC loads with proper isolation
• Observe channel grouping for current distribution
• Maintain frequency within 47-63Hz range
• Ensure minimum load requirements are met
• Monitor LED indicators for system status

Packaging & Shipping Information

• Includes one Schneider Electric 140DAO84210C output module
• Package dimensions: 31.2cm × 16.3cm × 4.5cm
• Package weight: 664 grams with protective packaging
• We ship via reliable carriers including FedEx, UPS, and DHL
• Industrial-grade packaging ensures component protection

Frequently Asked Questions

• How many output channels? 16 discrete AC output channels.
• What operating voltage? 100-230VAC operational range.
• What current per output? 3A at 170-253V, 4A at 85-132V.
• What response time? ≤0.5 milliseconds fast response.
• What certifications? FM Class 1 Div 2, cUL, CE, CSA.
