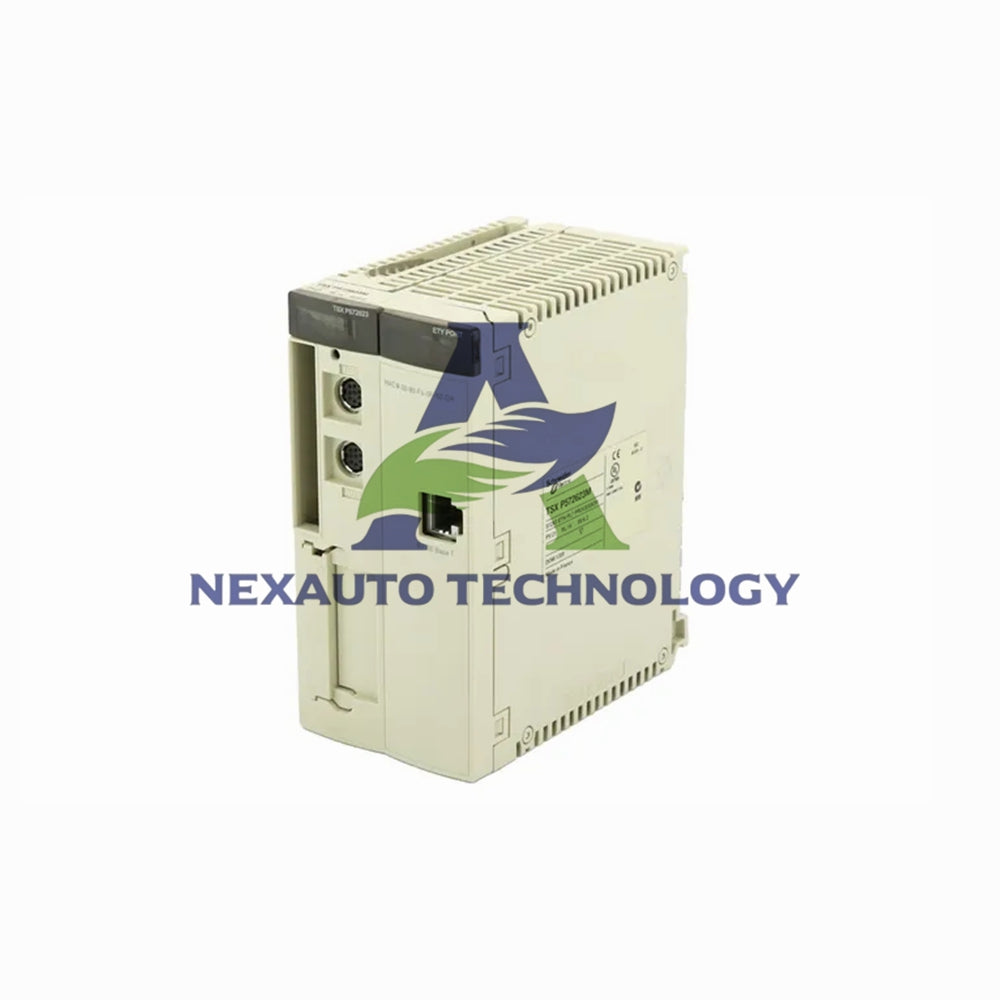

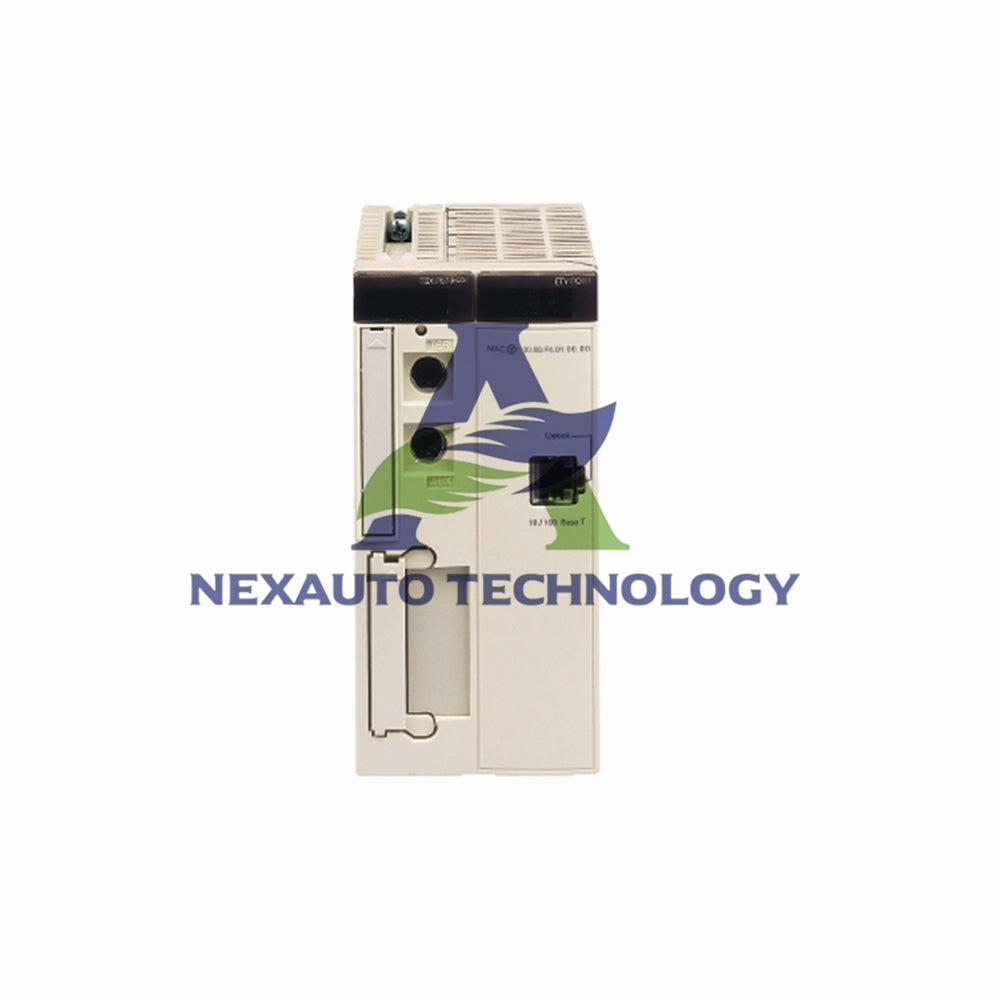

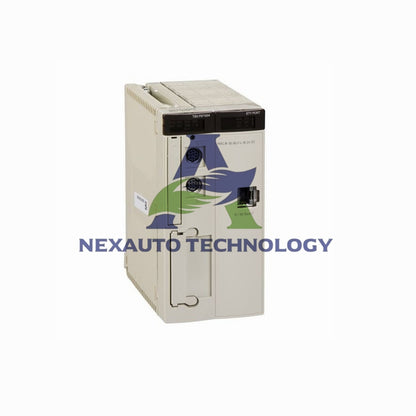

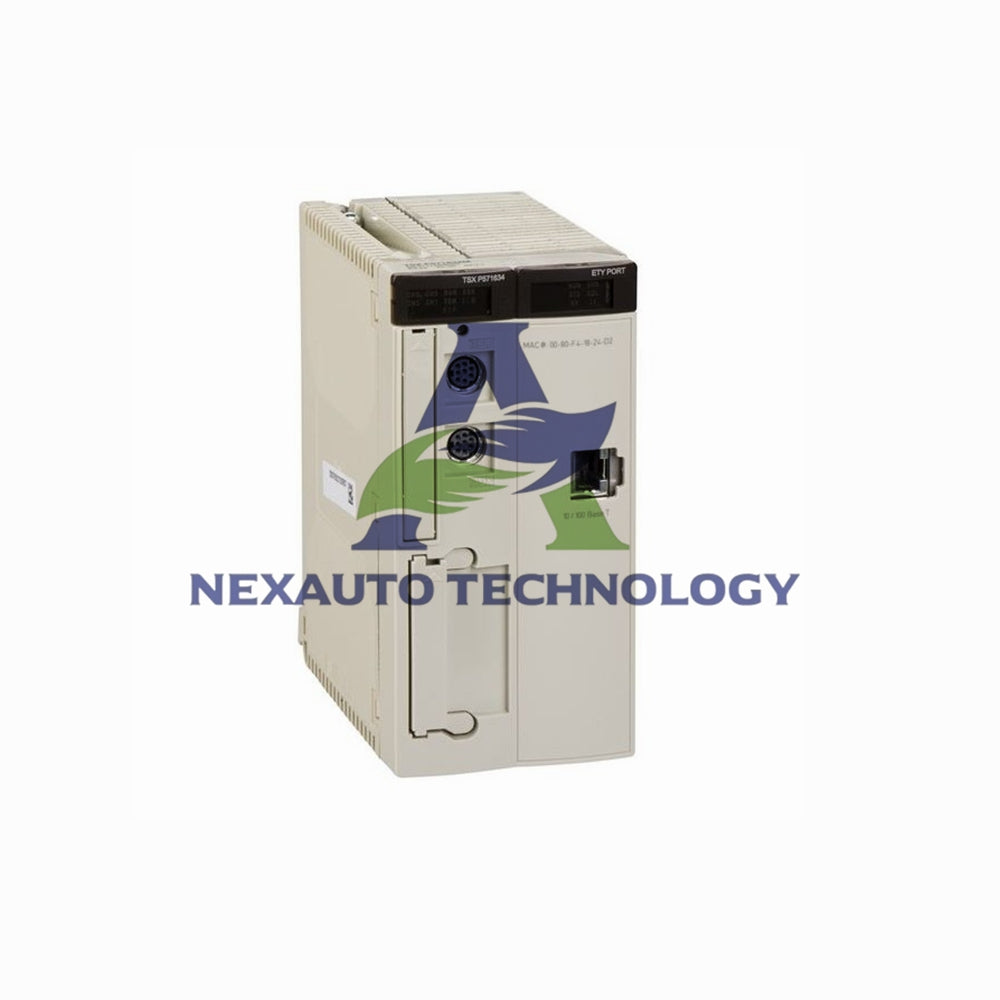

Schneider TSXP572623M Programmable Logic Controller

Product Overview: Schneider Electric TSXP572623M PLC

The Schneider Electric TSXP572623M is a powerful Micro PLC from the Modicon Premium series. It handles complex process control and large-scale automation with advanced networking features. This unit delivers robust performance for demanding industrial applications.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXP572623M
• Processing Speed: 0.19 µs Boolean execution without PCMCIA card
• Process Control: Manages up to 30 simple control loops effectively
• I/O Capacity: Supports up to 1024 discrete I/O and 80 analog I/O points
• Communication: Integrated Ethernet TCP/IP (10/100 Mbit/s) and serial link
• System Structure: 1 master task, 1 fast task, and 64 event tasks
• Memory: 48 Kwords internal RAM, expandable via PCMCIA card

Performance & Control Features

• Executes up to 4.76 thousand Boolean instructions per millisecond
• Handles word arithmetic in 0.25 µs and floating-point in 2.6 µs
• System overhead of 0.35 ms (fast task) and 1 ms (master task)
• Features a front-panel RESET button for cold start initialization
• This TSXP572623M processor offers precise timing control

Communication & Expansion

• Integrated Ports: Ethernet RJ45 and non-isolated serial mini-DIN
• Expansion Slots: Two PCMCIA slots for memory and communication cards
• Network Modules: Supports fieldbus, 4 AS-i, and CANopen modules
• Rack Support: Controls systems with up to 16 equipment racks
• Compatible with Schneider's PL7 Junior and Pro programming software

Physical & Environmental Design

• Module Format: Double-format design for expanded functionality
• Weight: 1.68 lb (0.76 kg) net weight
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Protection Rating: IP20 front panel protection
• LED Indicators: 8 status LEDs for RUN, ERR, I/O, Ethernet activity
• Certifications: UL, CSA, IEC, and marine classifications (ABS, DNV, GL)

Packaging & Shipping

• Each TSXP572623M processor ships as one complete unit
• Package Dimensions: 10.2" L x 7.09" W x 3.7" H
• Total shipping weight: 26.8 oz (759.0 g)
• We ship internationally via FedEx, UPS, and DHL services

Frequently Asked Questions (FAQ)

What makes the TSXP572623M suitable for process control?

It can manage up to 30 simple control loops and includes dedicated process channels for precise regulation.

How many I/O points can this PLC handle?

The TSXP572623M supports up to 1024 discrete I/O points and 80 analog I/O channels.

Does it have built-in Ethernet connectivity?

Yes, it features a 10/100 Mbit/s Ethernet TCP/IP port with dedicated status LEDs.

What is the purpose of the two PCMCIA slots?

One slot is for memory expansion, the other for communication cards or additional SRAM memory.

How many event tasks can this PLC execute?

It supports up to 64 event-driven tasks for handling interrupt-based operations.

Is this PLC suitable for large, distributed systems?

Yes, with support for up to 16 racks and multiple network modules, it scales well for large applications.
