Allen-Bradley 1606-XLDC92D DC/DC Converter | 92W

Allen-Bradley 1606-XLDC92D: 92W DIN Rail DC/DC Converter Module

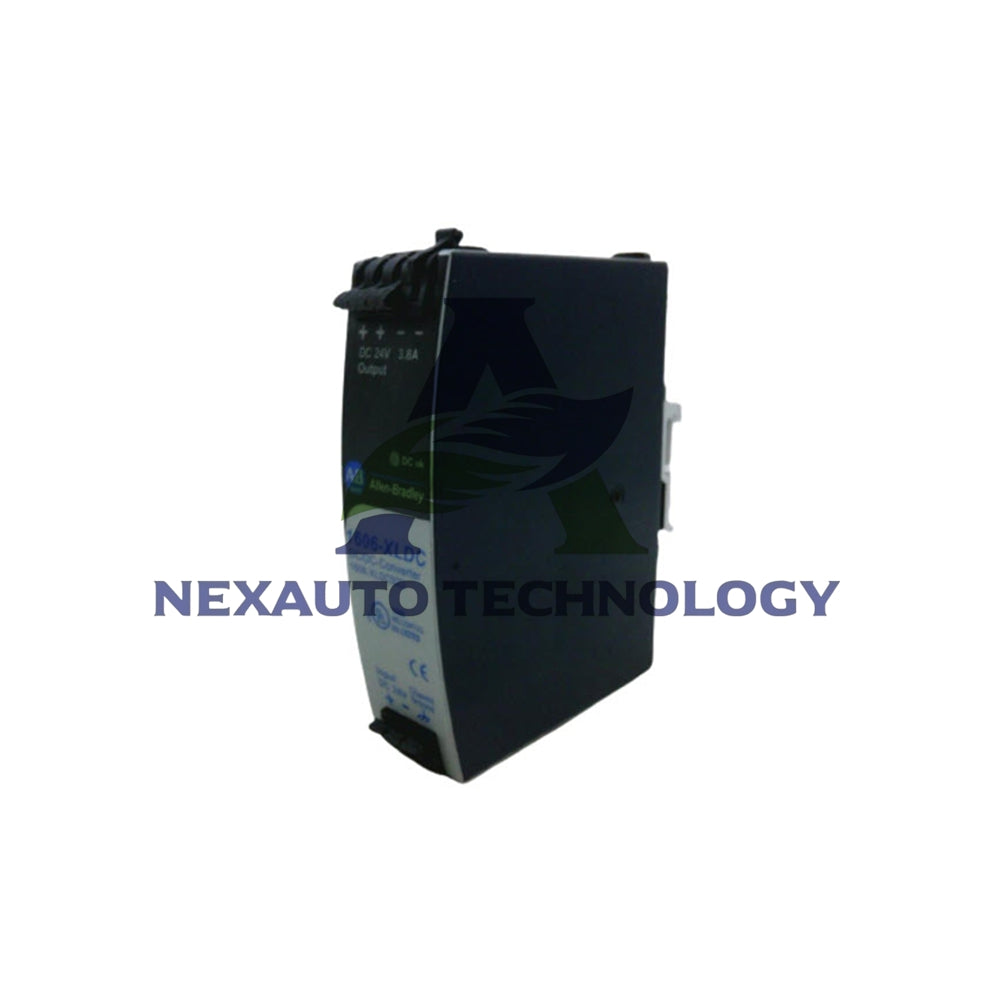

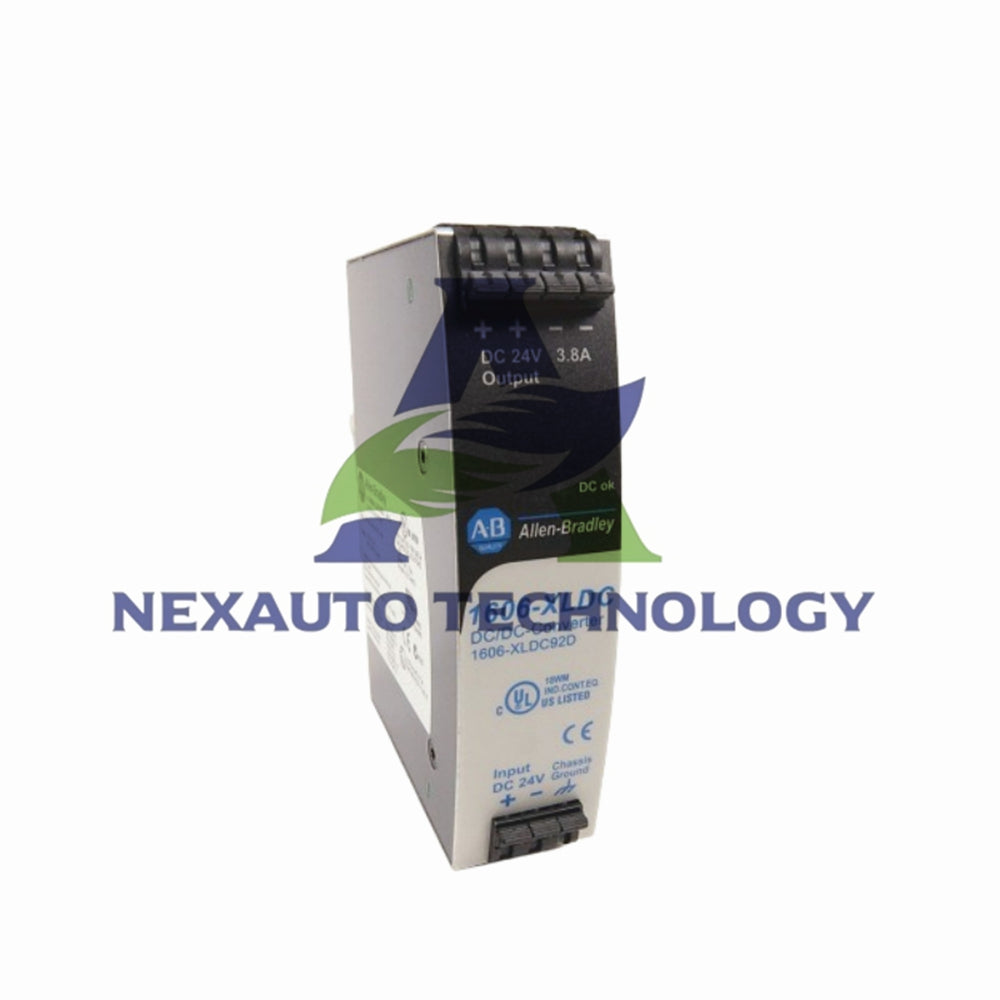

The Allen-Bradley 1606-XLDC92D is a robust DC/DC converter module from Rockwell Automation's 1606 series. It delivers stable and clean DC power conversion for industrial control applications. This compact DIN-rail mounted unit efficiently converts DC input voltages to regulated 24V DC output. It provides full electrical isolation for safe and reliable system operation.

Key Technical Specifications

• Brand & Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 1606-XLDC92D
• Product Type: DC/DC Converter Module
• Input Voltage Range: 14.4 to 32.4V DC (nominal 22.5-30V DC)
• Output Voltage: 24V DC adjustable (22-28V DC range)
• Rated Output Current: 3.8 Amps maximum continuous
• Output Power Rating: 92 Watts maximum
• Ripple & Noise: < 50 mV peak-to-peak
• Efficiency: 90% typical at full load
• Isolation Voltage: 1,500 VDC input to output
• Terminal Type: Spring clamp connectors for easy wiring
• Status Indication: DC-OK relay contact signal
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Product Features & Benefits

• Provides stable 24V DC output to compensate for voltage drop along long cable runs
• Integrated soft-start circuit prevents high inrush currents, extending component life
• Internal bulk capacitor maintains output for up to 14 milliseconds during input power interruptions
• Front panel LED indicator shows when output voltage is within valid operating range
• Compact design measures only 90 × 115 × 125 mm (3.54 × 4.53 × 4.92 inches)
• Generates minimal heat with high efficiency operation, saving panel space
• Quick installation on standard 35 mm DIN rail (EN 60715) with snap-on mounting
• Full electrical isolation protects downstream equipment from input-side disturbances

Electrical Protection & Safety

• Overload Protection: Automatic current limiting with automatic recovery
• Short Circuit Protection: Hiccup mode operation with auto-restart
• Overvoltage Protection: Output clamping at approximately 29V DC
• Reverse Polarity Protection: Protected against incorrect input connections
• Safety Certifications: UL 508, cULus, CE marked for industrial use
• EMC Compliance: Meets EN 61000-6-2 and EN 61000-6-4 standards

Installation & Wiring

• Mount on standard 35 mm DIN rail with included mounting clips
• Use 20 to 12 AWG wire for input and output connections
• Recommended tightening torque for spring clamps: 0.6 Nm (5.3 lb-in)
• Maintain minimum 30 mm (1.2 inches) clearance above and below for ventilation
• Adjust output voltage using the potentiometer located on the front panel
• Connect DC-OK relay signal to monitoring systems for status indication

Application Examples

• Voltage stabilization for distributed I/O systems over long distances
• Backup power system integration with battery inputs
• Industrial vehicle and mobile equipment power conversion
• Renewable energy system DC voltage conditioning
• Telecommunications and networking equipment power
• Test and measurement equipment power supply

Packaging Contents

• One (1) Allen-Bradley 1606-XLDC92D DC/DC converter module
• One (1) comprehensive user manual with wiring diagrams
• One (1) set of DIN rail mounting clips
• Product shipped in protective packaging for safe delivery

Shipping & Support

• Shipped via FedEx, UPS, or DHL with tracking information provided
• Typically available for shipment within 3-5 business days
• Standard manufacturer warranty applies to all purchases
• Technical support available for installation and application questions

Frequently Asked Questions

• What is the operating temperature range? -25°C to +70°C ambient temperature range.
• How do I adjust the output voltage? Use the small potentiometer on the front panel to adjust between 22-28V DC.
• Can this module operate in series or parallel? Series operation is possible; parallel operation requires special consideration for current sharing.
• What does the DC-OK signal indicate? A relay contact closes when output voltage is within ±10% of set value.

For technical documentation and application engineering support for the 1606-XLDC92D converter, contact our team.
