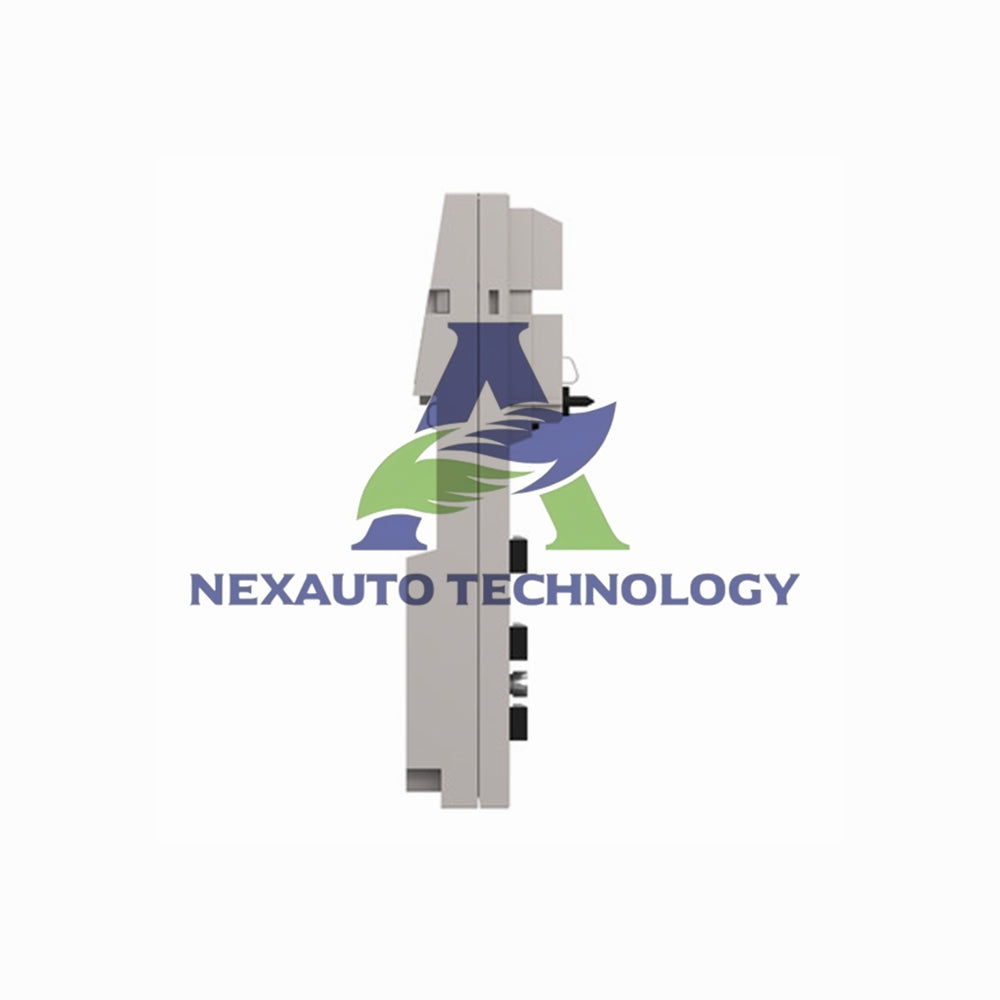

Introducing the Schneider Electric 170ADI54050 Discrete Input Base

The 170ADI54050 is a high-voltage AC input module for Modicon Momentum. It provides sixteen discrete input channels for monitoring 120V AC signals. This base offers reliable AC signal detection in industrial control systems.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric 170ADI54050
• Input Configuration: 16 discrete AC inputs in 2 groups of 8
• Operating Voltage: Designed for 120V AC input signals
• Voltage Range: Accepts 85 to 132V AC for flexible operation
• Frequency Range: Compatible with 47-63 Hz power networks
• High Isolation: Provides 1780V AC isolation between groups and bus
• Logic Type: Positive logic for consistent signal processing
• Protection: TC treatment for enhanced environmental durability
• Visual Status: 16 LEDs provide individual channel status indication

Robust Design & Operating Environment

• Operating Temperature: Reliable performance from 0°C to 60°C
• Storage Temperature: Withstands -40°C to 85°C when not in use
• Humidity Tolerance: Operates at up to 95% relative humidity without condensation
• Physical Dimensions: Compact 4.9" W x 5.6" H x 1.9" D (125 x 141.5 x 47.5 mm)
• Module Weight: Lightweight at 0.626 lb (0.284 kg)

Packaging & Shipping Information

• Package Includes: One (1) 170ADI54050 discrete input base module
• Shipping Methods: Global shipping via FedEx, UPS, and DHL
• Standard Packaging: Protective industrial packaging ensures safe transit

Installation & Integration Guide

• Mount this AC input base onto your Modicon Momentum DIN rail
• Connect your 120V AC signals to the sixteen input channels
• The high 1780V isolation protects the PLC from high-voltage transients
• Group organization (2 groups of 8) simplifies wiring and troubleshooting
• Individual channel LEDs provide immediate visual status feedback
• Ensure input signals stay within the 85-132V AC specified range

Frequently Asked Questions (FAQ)

What voltage signals can the 170ADI54050 monitor?

This module is specifically designed for 120V AC signals within a range of 85-132V AC. It is ideal for monitoring AC power status and contact closures.

Why is high isolation voltage important?

The 1780V AC isolation protects the sensitive Momentum PLC electronics from high-voltage spikes and noise. This is critical in industrial environments with heavy machinery.

Can this module monitor lower voltage AC signals?

While it will detect voltages down to 85V AC reliably, for lower AC voltages (like 24V AC), a different input module would be more appropriate.

What is the main use case for this module?

The 170ADI54050 is perfect for monitoring the status of 120V AC circuits, power supplies, and contactors directly without additional interfacing relays.

How does this differ from DC input modules?

This module is designed for AC voltage monitoring, while modules like the 170ADM37010 handle DC signals. Choose based on your signal type and voltage level.
