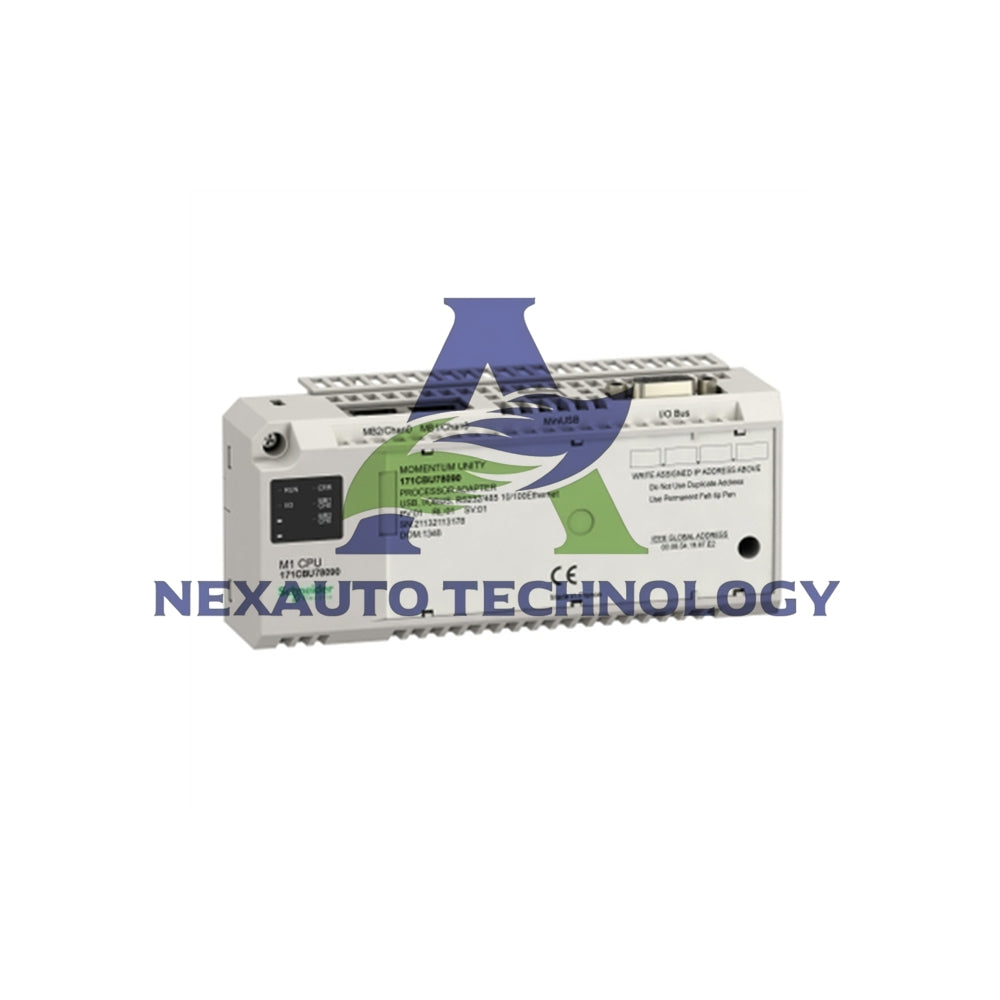

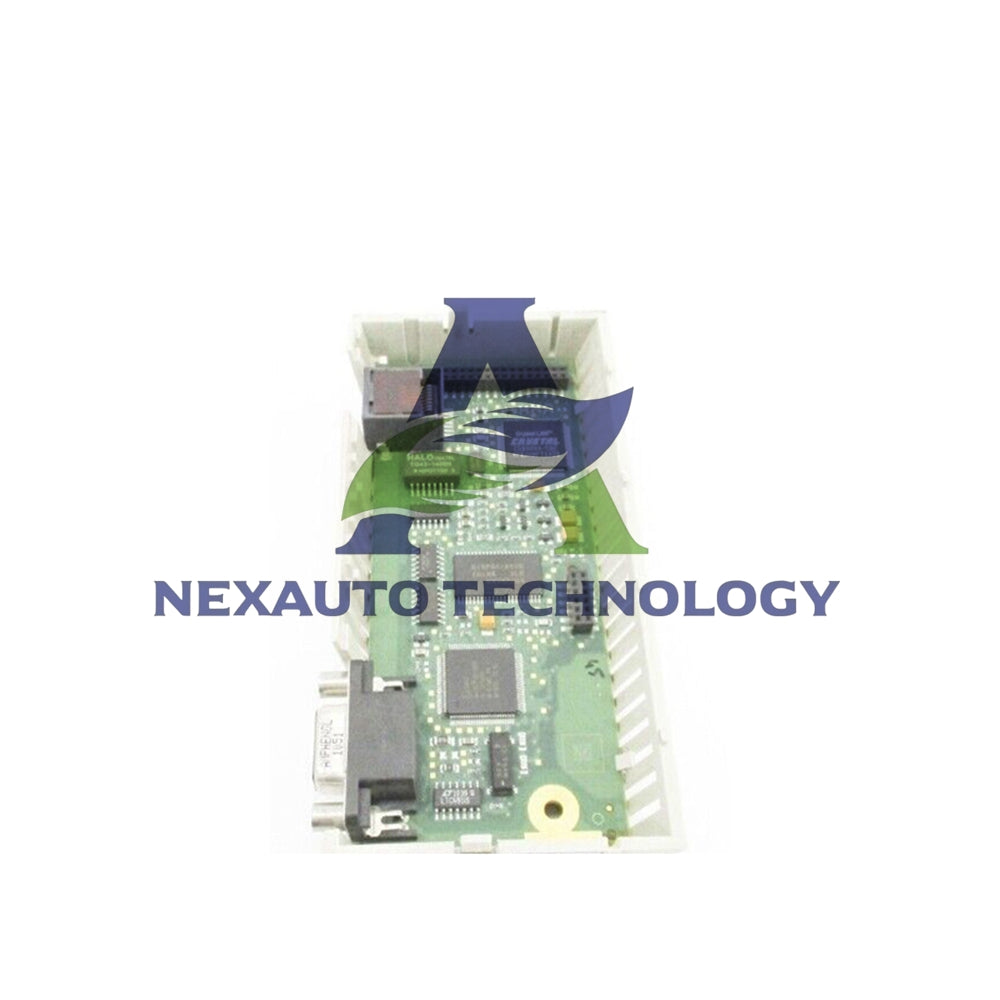

Schneider 171CCC96030 Momentum Ethernet Processor Module

Product Overview

The 171CCC96030 is an M1/M1E Processor Adapter Module manufactured by Schneider Electric for the Modicon Momentum automation platform. This enhanced processor module features expanded memory capacity and Ethernet connectivity for advanced industrial control applications.

Technical Specifications

• Manufacturer: Schneider Electric
• Part Number: 171CCC96030
• Product Type: M1/M1E Processor Adapter Module
• Product Line: Modicon Momentum Automation Platform
• EAN Code: 3595862000550
• Processor Type: X86 Architecture (Intel/AMD) IEC Executive
• Clock Frequency: 50 MHz Operating Speed
• Flash Memory: 1 MB Program Storage Capacity
• RAM Memory: 544 KB Data Storage
• Word Length: 16-bit Data Processing
• Supply Voltage: 5.0 VDC ±5%
• Scan Time: 0.3 ms per Kilobyte
• Instruction Time: 1 ms per 1K Instructions
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Altitude: ≤ 2,000 m (6,562 ft)
• Net Weight: 0.042 kg (0.093 lb)
• Shipping Weight: 0.45 kg (1.00 lb)

Enhanced Memory Configuration

• Total Flash Memory: 1 MB Enhanced Storage Capacity
• Program Memory (LL984): 18 KB Instruction Space
• Program Memory (IEC): 200 KB IEC Executive Space
• Data Memory: 24 KB Variable Storage
• RAM Capacity: 544 KB Volatile Memory
• Memory Advantage: Double the Flash of 171CCC96020

I/O Capacity & Performance

• Discrete I/O: 8,192 Input / 8,192 Output Maximum
• Register I/O: 26,048 Input / 26,048 Output Words
• I/O Limit: 8,192 Bits Maximum Capacity
• I/O Words per Drop: 128 I/O (Concept), 80 I/O (ProWORX)
• Processing Speed: Enhanced for Complex Applications

Communication Ports

• Ethernet Port: Integrated Ethernet Communication
• I/O Bus Port: Momentum I/O Bus Connection
• Protocol Support: Modbus TCP Messaging
• Network Services: I/O Scanning Capability
• Connectivity: Dual-Port Industrial Architecture

Software & Web Compatibility

• Development Software: Concept V2.6 Programming
• Legacy Support: Modsoft ≥ V2.5 Compatibility
• Modern Environment: ProWORX NxT V2.0
• Windows Platform: ProWORX 32 Environment
• Web Services: Rack Viewer and Web Page Loader
• Monitoring Tools: Data Editor for Configuration

Transparent Ready Features

• Class Rating: Class B10 Transparent Ready
• Web Integration: Web Page Loader Software Tool
• System Visualization: Rack Viewer Application
• Data Management: Integrated Data Editor
• Network Services: Comprehensive Ethernet Services

Physical Characteristics

• Material: Lexan Industrial-Grade Construction
• Protective Treatment: TC Coating Application
• Markings: CE Certification Compliance
• Design: Standard Momentum Module Format
• Weight Advantage: Lightweight at 0.093 lb

Power & Electrical Specifications

• Voltage Requirement: 5.0 VDC with ±5% Tolerance
• Supply Method: Via Momentum I/O Base Connection
• Power Efficiency: Low Power Consumption Design
• System Integration: Seamless Base Mounting

Environmental Specifications

• Relative Humidity: 5-96% (Non-Condensing)
• Shock Resistance: ≤15 gn Peak, 11 ms Half Sine
• Vibration Resistance: 1 gn / 0.75 mm d.a
• Industrial Enclosure: NEMA Type 250 Rated
• Environmental Class: Industrial Harsh Environment

Certifications & Standards

• Safety Certifications: UL and cUL Approved
• Hazardous Location: FM Class 1 Division 2
• Enclosure Standard: NEMA Type 250 Compliance
• Quality Assurance: Schneider Electric Standards

Package & Shipping

• Category: 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
• Discount Schedule: PC31
• Country of Origin: France (FR)
• Package Type: Single Unit Package
• Units per Package: 1 Processor Module
• Package Dimensions: 26 × 18 × 6 cm (10.2" × 7.09" × 2.4")
• Package Weight: 197 g (6.9 oz)
• Return Policy: Non-Returnable Item

Key Features

• Enhanced 1 MB Flash Memory for Expanded Program Storage
• 50 MHz X86 Processor with IEC Executive Capability
• Ethernet Port with Modbus TCP Protocol Support
• 26,048 Register I/O Word Capacity for Large Applications
• Compatible with Concept, Modsoft, and ProWORX Software
• Transparent Ready Class B10 with Web Services
• Multiple Safety Certifications (UL, cUL, FM Class 1 Div 2)

Performance Advantages

• Memory Advantage: Double the Flash Memory of Standard Models
• Processing Power: 50 MHz Speed for Complex Control Algorithms
• Network Integration: Ethernet Connectivity for Modern Systems
• IEC Compliance: IEC Executive for Standardized Programming
• Web Ready: Transparent Ready Features for Remote Access

Frequently Asked Questions

How does this differ from the 171CCC96020?
The 171CCC96030 features double the flash memory (1 MB vs 512 KB) and includes IEC executive capability for enhanced programming flexibility.

What memory capacity is available?
This module provides 1 MB of flash memory, 544 KB of RAM, with specific allocations for LL984 (18 KB), IEC (200 KB), and data memory (24 KB).

What communication capabilities are included?
It includes one Ethernet port for network communication and one I/O bus port, supporting Modbus TCP messaging and I/O scanning.

What software environments are supported?
The module supports Concept V2.6, Modsoft V2.5+, ProWORX NxT V2.0, and ProWORX 32 programming software.

What certifications does it have?
It carries UL, cUL, FM Class 1 Division 2, and NEMA Type 250 certifications for industrial safety and compliance.
