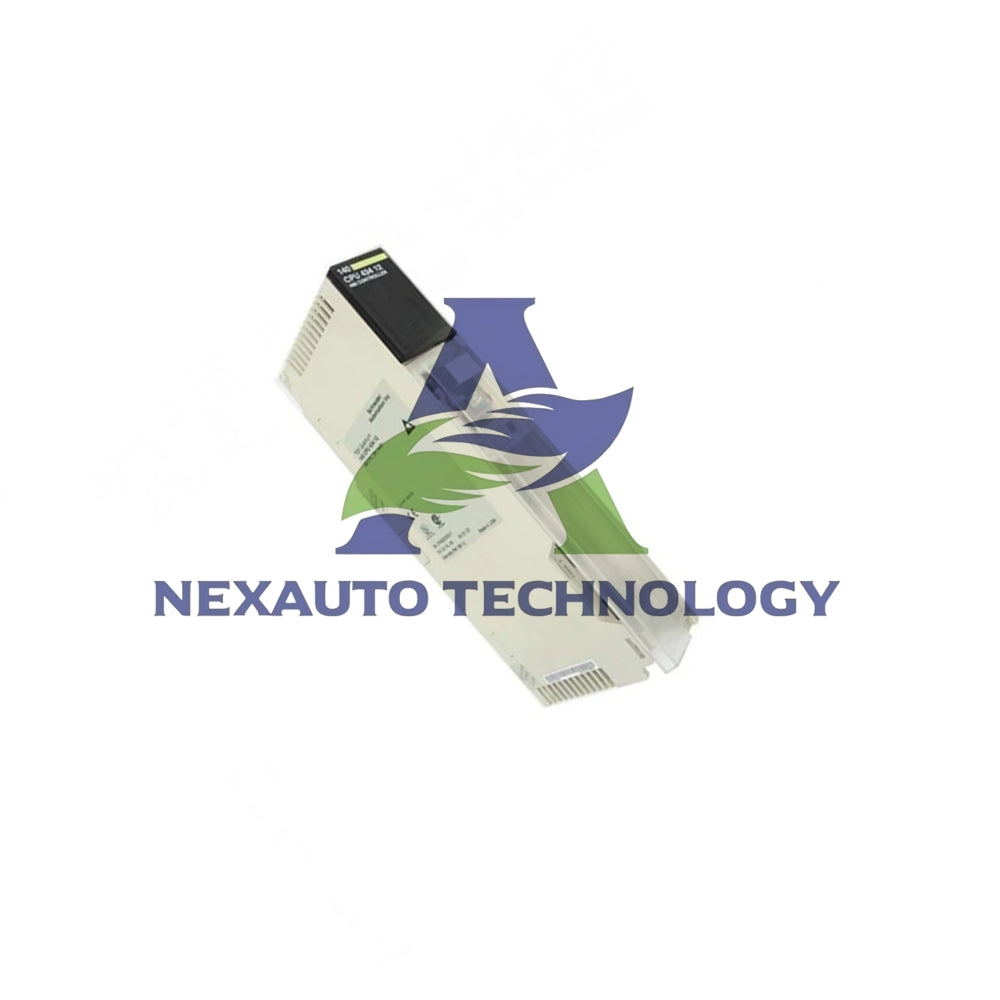

Schneider Electric 140CPU11302C | Quantum Processor 20MHz

Core Product Overview

• The Schneider Electric 140CPU11302C is a Quantum series processor.
• This 20MHz CPU provides reliable control for industrial automation systems.
• It delivers efficient processing for complex automation applications.

Key Technical Specifications

• Manufacturer & Model: Schneider Electric 140CPU11302C
• Clock Speed: 20 MHz processor frequency
• Internal RAM: 109 kB memory capacity
• Processing Speed: 0.3-1.4 ms per 1K LL984 instruction
• I/O Capacity: 64 local inputs / 64 local outputs maximum
• Communication Ports: 1 Modbus RS232, 1 Modbus Plus
• Watchdog Timer: 250 ms system protection

Performance & Processing Features

• Instruction Execution: 0.3 ms minimum for 1K instructions
• Memory Architecture: 109 kB integrated RAM for program/data
• System Protection: 250 ms watchdog timer for fault detection
• Processing Logic: LL984 instruction set compatibility
• Scan Time: Optimized for rapid control cycles
• Real-time Performance: Suitable for time-critical applications

I/O & Network Capabilities

• Local I/O: 64 digital inputs and 64 outputs maximum
• Distributed I/O: 30 in / 32 out per remote module
• Total Network I/O: 500 inputs / 500 outputs capacity
• Network Support: 3 distributed + 2 remote networks
• Communication: Modbus RS232 and Modbus Plus protocols
• Expansion: Supports extensive I/O module networks

Power & Environmental Specifications

• Power Consumption: 780 mA bus current requirement
• Battery Type: Lithium 1.2 Ah backup battery
• Battery Life: 10 years typical operation
• Temperature Range: 0°C to 60°C (32°F to 140°F)
• Humidity Rating: 95% non-condensing operation
• Weight: 0.7 lb (0.3 kg) compact design

Communication & Integration

• Serial Port: Modbus RS232 for device communication
• Network Port: Modbus Plus for high-speed networking
• Protocol Support: Industry standard Modbus protocols
• System Integration: Connects to SCADA, HMI, and other systems
• Programming: Compatible with Unity Pro software
• Diagnostics: Built-in status indicators and fault detection

Ordering & Configuration

• Product Line: Modicon Quantum Automation Platform
• Part Number: 140CPU11302C
• Processor Type: Mid-range Quantum CPU
• Memory Configuration: 109 kB integrated RAM
• Communication Standard: Dual Modbus interface
• Applications: Industrial automation, process control, manufacturing

Installation & Programming

• Install the 140CPU11302C in Quantum series rack
• Connect Modbus RS232 port to programming terminal
• Configure Modbus Plus network for distributed I/O
• Program using Schneider Electric Unity Pro software
• Install 1.2 Ah lithium battery for memory backup

Packaging & Delivery

• One Schneider Electric 140CPU11302C Quantum processor
• Includes installation guide and technical documentation
• Shipping via FedEx, UPS, or DHL express delivery
• Original factory packaging with warranty
