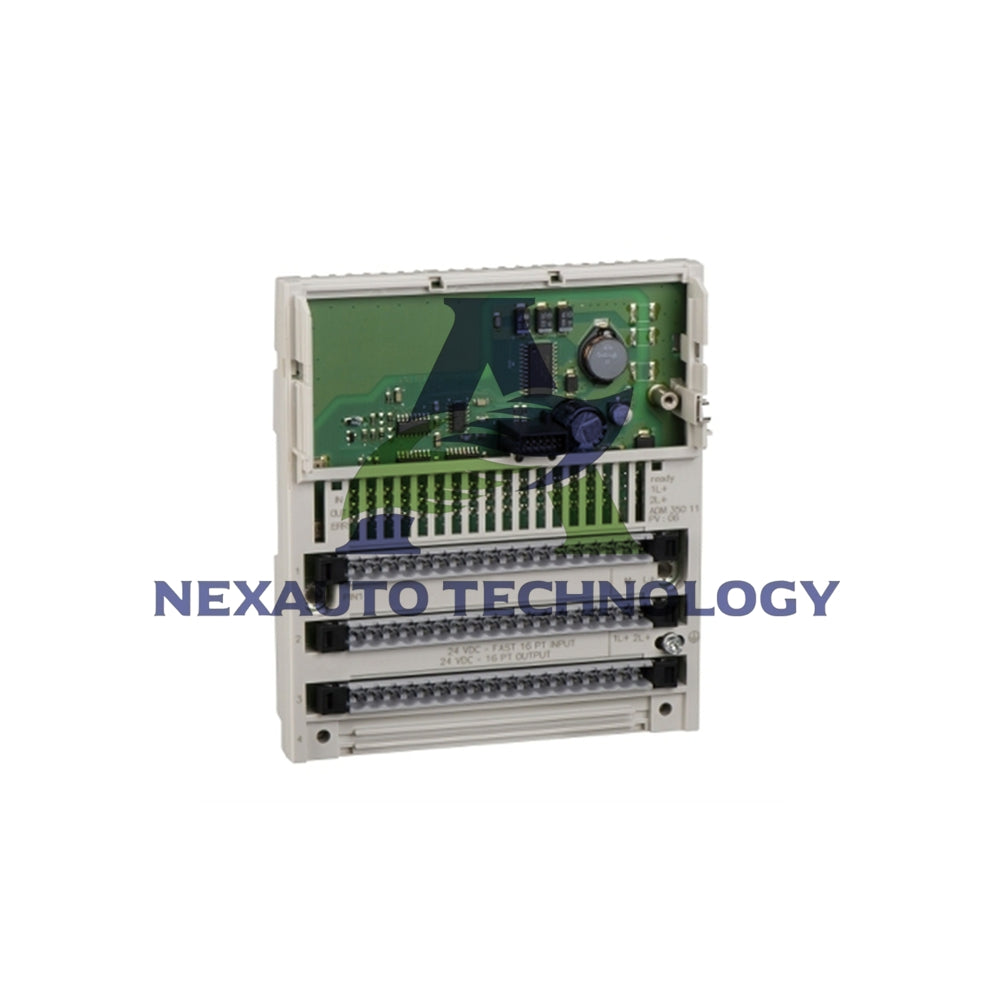

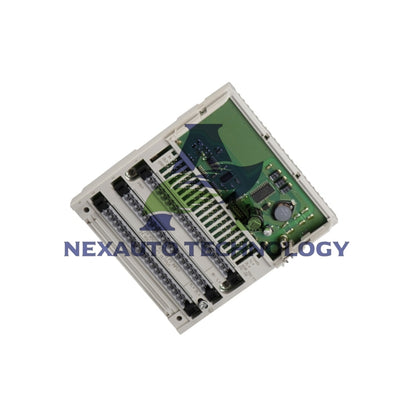

Schneider Electric 170ADM35010 Modicon Momentum I/O Base

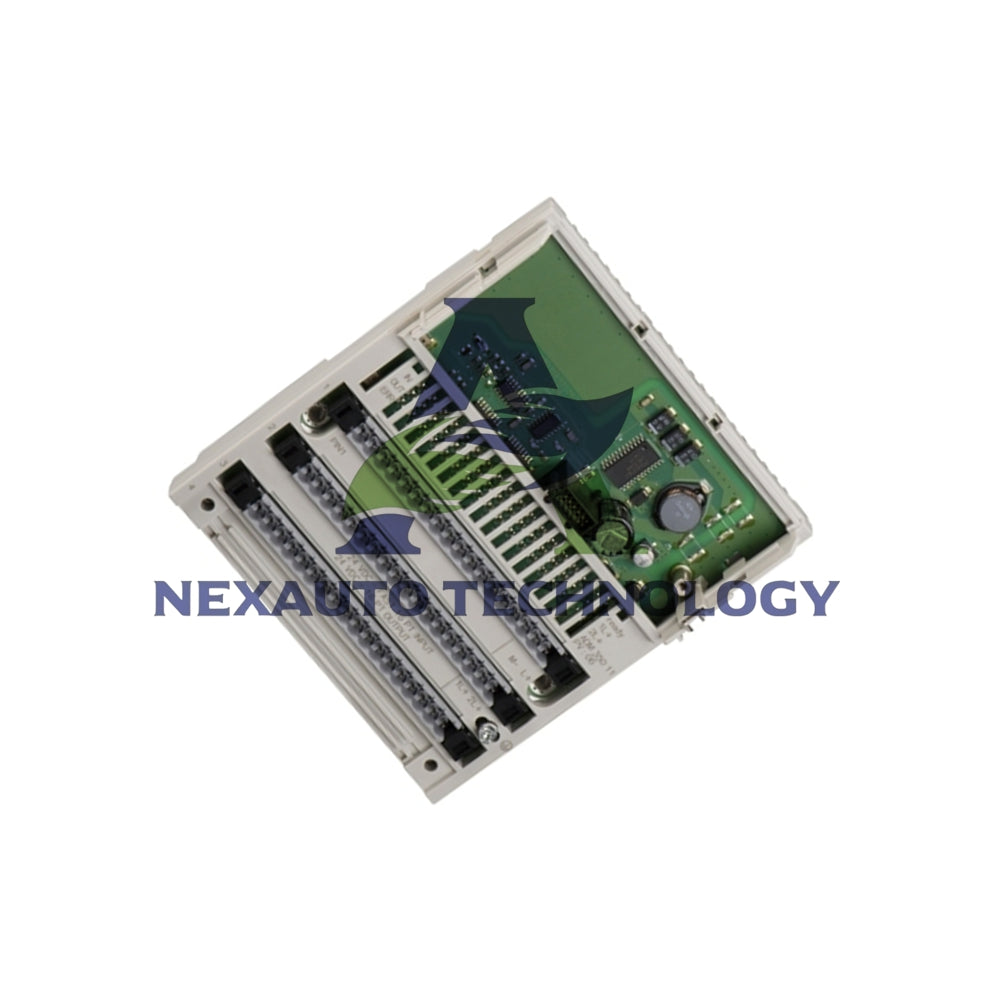

Introducing the Schneider Electric Modicon Momentum 170ADM35010 I/O Base

The 170ADM35010 from Schneider Electric is a core component of the trusted Modicon Momentum automation platform. This discrete I/O base delivers reliable connectivity for machines and control systems. It combines 16 inputs and 16 outputs in a single, compact unit. The design ensures versatile integration for various industrial applications.

Core Technical Specifications

• Brand & Model: Schneider Electric 170ADM35010
• Product Line: Modicon Momentum
• I/O Configuration: 16 Discrete Inputs / 16 Discrete Outputs
• Channel Groups: 1 group of 16 inputs & 2 groups of 8 outputs
• Input Voltage: 24 V DC
• Output Voltage: 24 V DC (Up to 30 V DC)
• Input/Output Logic: Positive
• Peak Output Current: 5 Amps
• Input Resistance: 4 kOhm
• Isolation (Channels to Bus): 500 V AC

Robust Design & Environmental Ratings

• Protective Treatment: TC Treatment for durability
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Max. Relative Humidity: 95% (non-condensing)
• Fault Protection: Output overload detection
• Local Signalling: 16 LEDs for clear channel status

Installation & Physical Dimensions

• Terminal Blocks: Clearly marked for all 16 inputs and 16 outputs
• Power Connections: Separate (L+)PW_POS and (M-)PW_NEG terminals
• Height: 141.5 mm (5.6 inches)
• Width: 125 mm (4.9 inches)
• Depth: 47.5 mm (1.9 inches)
• Net Weight: 0.2 kg (0.4 lbs)

Packaging & Shipping Details

• Package Includes: One (1) 170ADM35010 I/O base unit
• Package Dimensions: 26.0 L x 18.2 W x 5.9 H cm
• Package Weight: 406 grams
• Shipping: We ship globally via FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

What is the main function of the 170ADM35010?
This module acts as a discrete I/O base. It connects 24V DC sensors and actuators to a Modicon Momentum PLC.

What does "positive logic" mean for this unit?
For inputs, a positive voltage (24V DC) is read as a logic ON state. For outputs, the module supplies positive voltage when activated.

Can one output channel drive a high-current load?
Each output channel can handle a peak current of 5 Amps. Always check your load's steady-state requirements.

Is this I/O base suitable for harsh environments?
Yes. The TC protective treatment and wide temperature rating make it suitable for industrial panels.

How do I choose the right Momentum I/O module?
First, count your needed 24V DC sensors (inputs) and actuators (outputs). The 170ADM35010 is ideal for balanced 16-in/16-out needs. Then verify your load current is within the 5A peak limit.
