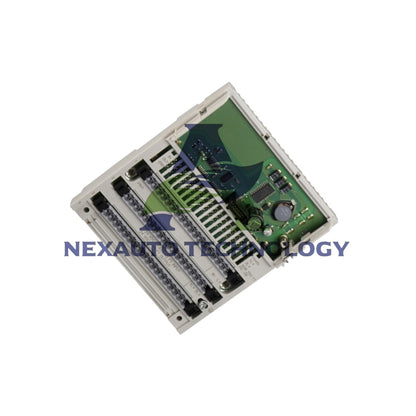

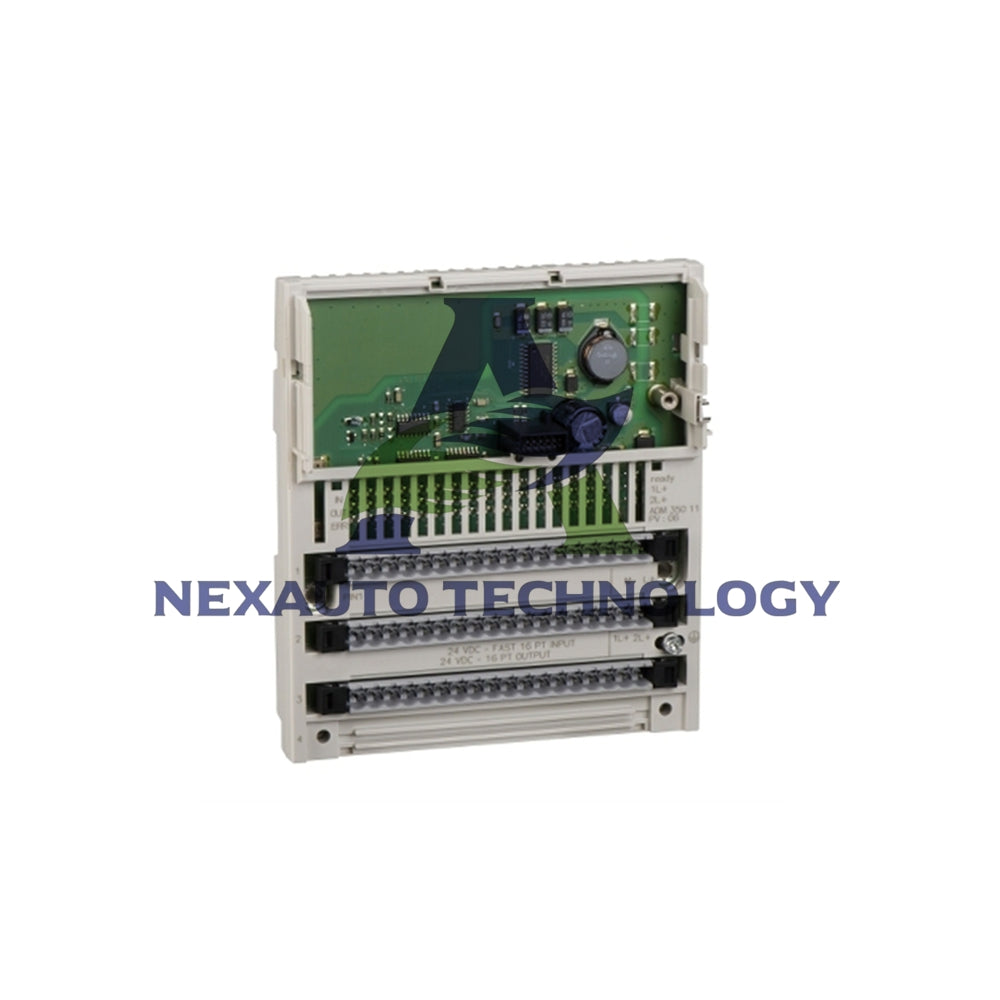

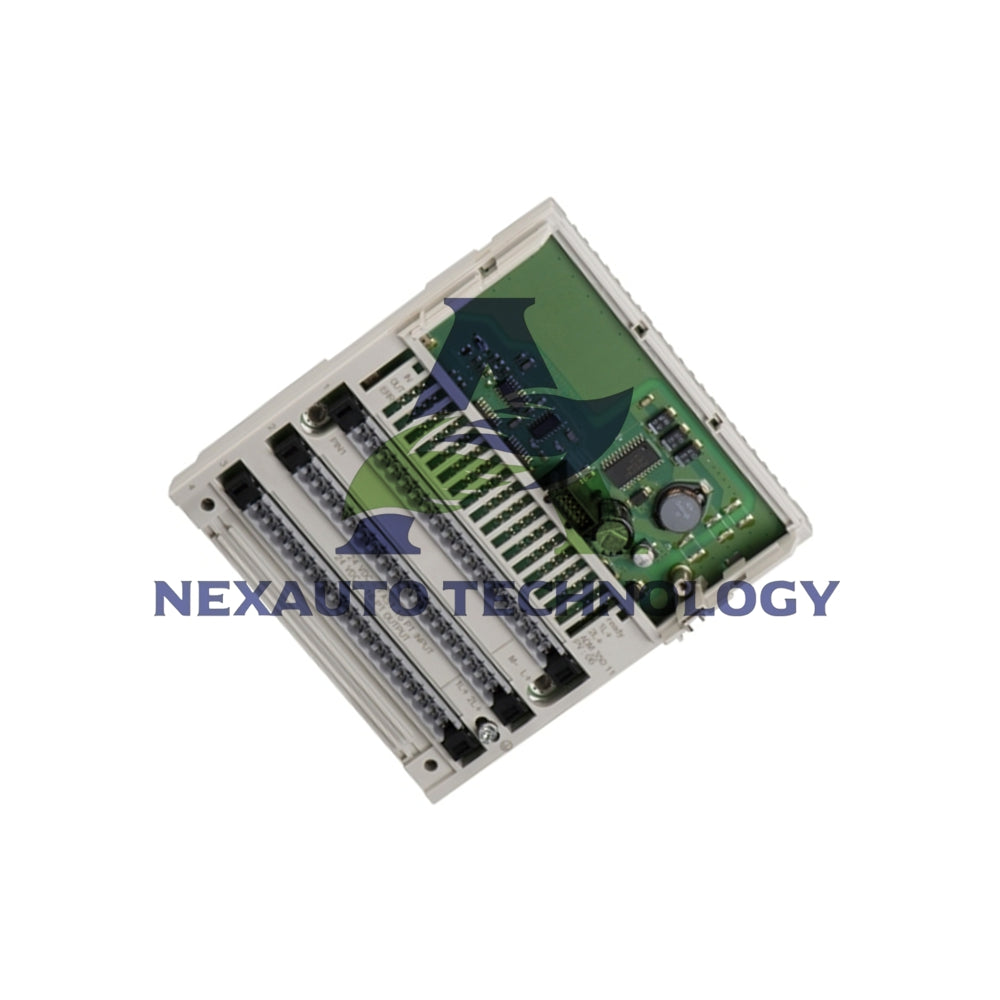

Schneider Electric 170AMM09000 I/O Base Module

Introducing the Schneider Electric 170AMM09000 I/O Base Module

The 170AMM09000 is a versatile mixed I/O base for Modicon Momentum. It combines analog and discrete channels in one compact unit. This module handles complex control tasks with reliable performance and built-in safety features.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric 170AMM09000
• Input Configuration: 4 differential analog inputs plus 4 discrete inputs
• Output Configuration: 2 analog outputs and 2 discrete outputs
• Supply Voltage: Operates on 24 Volts DC for industrial compatibility
• Analog Input Ranges: Versatile ranges: ±10V, ±5V, 1-5V, ±20mA, 4-20mA
• Analog Output Ranges: ±10V and 0-20mA, both with 12-bit resolution
• Conversion Speed: Fast 10 ms analog input and 1 ms analog output conversion
• Safety Protection: Includes overload and short-circuit protection on discrete outputs

Robust Design & Operating Environment

• Power Consumption: Draws between 200-350 mA at 24V DC with max 6W dissipation
• Operating Temperature: Reliable performance from 0°C to 60°C in dry conditions
• Physical Dimensions: Compact 5.6" W x 4.9" H x 1.9" D (141.5 x 125 x 47.5 mm)
• Module Weight: Lightweight at just 0.53 lb (0.24 kg)
• Electrical Isolation: 500V isolation between I/O channels and system ground
• Discrete Output: Transistor type with 1A per point current capacity

Packaging & Shipping Information

• Package Includes: One (1) 170AMM09000 I/O base module unit
• Package Dimensions: Similar to standard Momentum modules for consistent handling
• Shipping Methods: We ship globally via FedEx, UPS, and DHL for reliable delivery

Installation & Integration Guide

• Mount this mixed I/O base directly onto your Modicon Momentum DIN rail
• Connect signals using the two removable terminal blocks for easy wiring
• Configure analog input ranges according to your sensor requirements
• The module's 8 status LEDs provide clear channel operation feedback
• Ensure proper 24V DC power supply within the specified current range
• Utilize the built-in overload protection for reliable discrete output operation

Frequently Asked Questions (FAQ)

What types of signals can the 170AMM09000 handle?

This module handles both analog voltage/current signals and discrete 24V DC digital signals. It provides comprehensive I/O capabilities in one unit.

What is the advantage of differential analog inputs?

Differential inputs provide better noise rejection in industrial environments. This ensures more accurate measurements compared to single-ended inputs.

How fast can this module update its analog signals?

The analog inputs update every 10 milliseconds, while outputs respond within 1 millisecond. This speed suits most process control applications.

Is the 170AMM09000 suitable for controlling motors or valves?

Yes, the discrete outputs can drive small loads up to 1A. The built-in protection safeguards against short circuits during inductive load switching.

What makes this mixed I/O module a good choice?

The 170AMM09000 saves space and simplifies wiring by combining functions. It's ideal when you need both analog and discrete I/O in one location.
