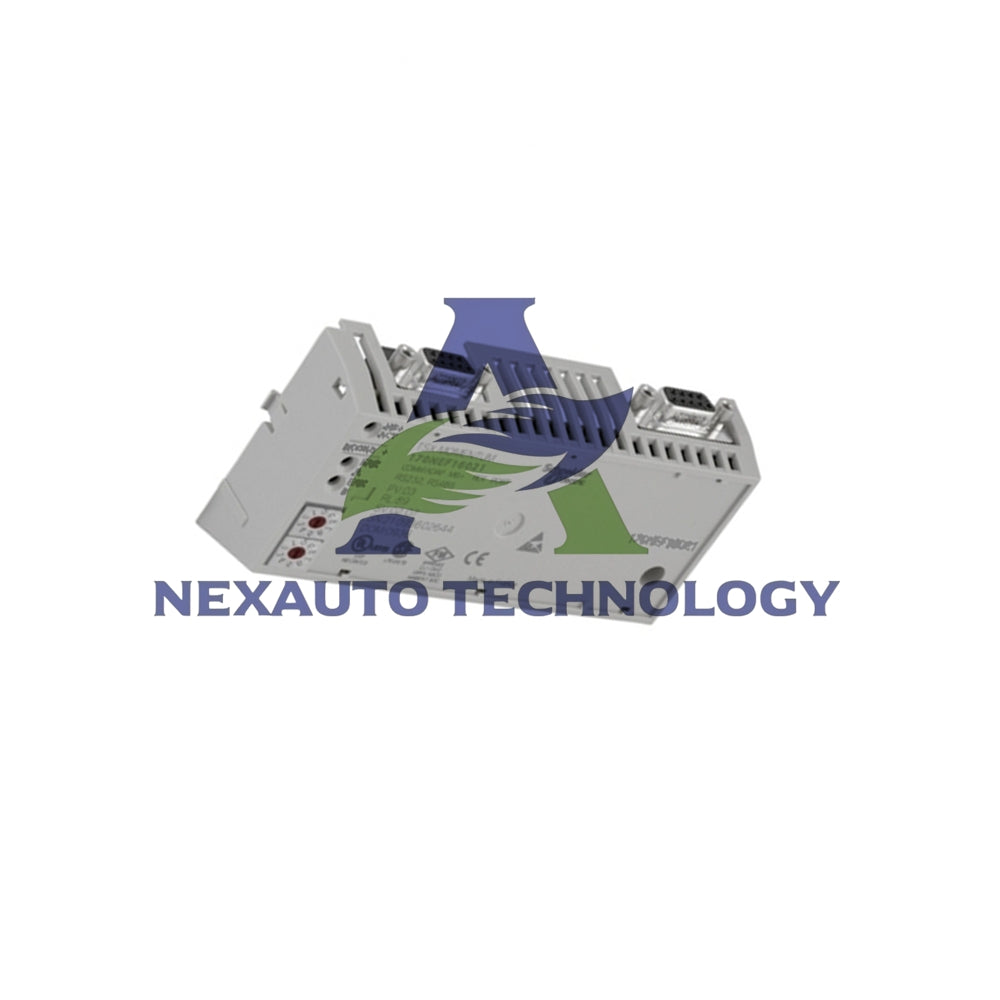

Schneider Electric 170ENT11002 Ethernet TCP/IP Adapter

Introducing the Schneider Electric Modicon Momentum 170ENT11002 Ethernet Adapter

The 170ENT11002 from Schneider Electric is a key communication adapter for the Modicon Momentum platform. This unit provides reliable Ethernet TCP/IP connectivity for industrial automation systems. It enables seamless data exchange between Momentum controllers and network devices.

Core Technical Specifications

• Brand & Model: Schneider Electric 170ENT11002
• Product Line: Modicon Momentum
• Product Type: Ethernet TCP/IP Communication Adapter
• Ethernet Port: 100BASE-TX / 10BASE-T (RJ45 Connector)
• Transmission Rate: 10 Mbit/s
• Communication Protocol: Ethernet TCP/IP
• Access Methods: Master/Slave and Peer-to-Peer (P2P)
• Network Topology: Star Network and Multi-drop
• Control Parameter: CRC-32 Error Checking
• Devices per Segment: Up to 32 devices

Environmental & Installation Ratings

• Protection Class: IP20 (Protected against solid objects >12.5mm)
• Protective Treatment: TC Treatment for industrial environments
• Operating Temperature: 0°C to 60°C (non-condensing)
• Storage Temperature: -40°C to 85°C (non-condensing)
• Operating Altitude: Less than 5,000 meters (16,404 feet)
• Cable Type: Shielded Twisted Pair Cable
• Cable Distance: Up to 100m (328 ft) without repeater
• Cable Distance with Repeater: Over 1,000m (3,280 ft)

Network Configuration & Addressing

• Module Configuration: BOOTP Server for IP parameter assignment
• Addressing: Unique IEEE global address with user-assigned IP
• Fail State: Fail-safe operation for system reliability
• Transmission Medium: Shielded twisted pair cable support

Physical & Packaging Details

• Net Weight: 0.07 kg (0.15 lbs)
• Package Includes: One (1) 170ENT11002 Ethernet Adapter
• Package Dimensions: 26.0 L x 17.8 W x 5.8 H cm
• Package Weight: 219 grams
• Shipping: Global shipping via FedEx, UPS, and DHL available
• Compliance: CE Marked for European market requirements

Frequently Asked Questions (FAQ)

What is the primary function of the 170ENT11002 adapter?
This adapter connects Modicon Momentum controllers to Ethernet TCP/IP networks. It enables communication with HMIs, SCADA systems, and other network devices.

What types of network topologies does this adapter support?
The 170ENT11002 supports both star network and multi-drop topologies. This flexibility allows various system design configurations.

How many devices can connect to one network segment?
You can connect up to 32 devices per network segment. This includes Momentum controllers and other compatible network equipment.

Is this adapter suitable for harsh industrial environments?
Yes. The IP20 protection and TC treatment make it suitable for controlled industrial panels. It operates reliably in temperatures from 0°C to 60°C.

How do I configure the IP address for this adapter?
You can assign an IP address using a BOOTP server. The adapter also has a unique IEEE global address for identification.

What cable distance can I achieve with this Ethernet adapter?
Without a repeater, use standard Ethernet cable limits of 100 meters. With repeaters, you can extend the network beyond 1,000 meters.
