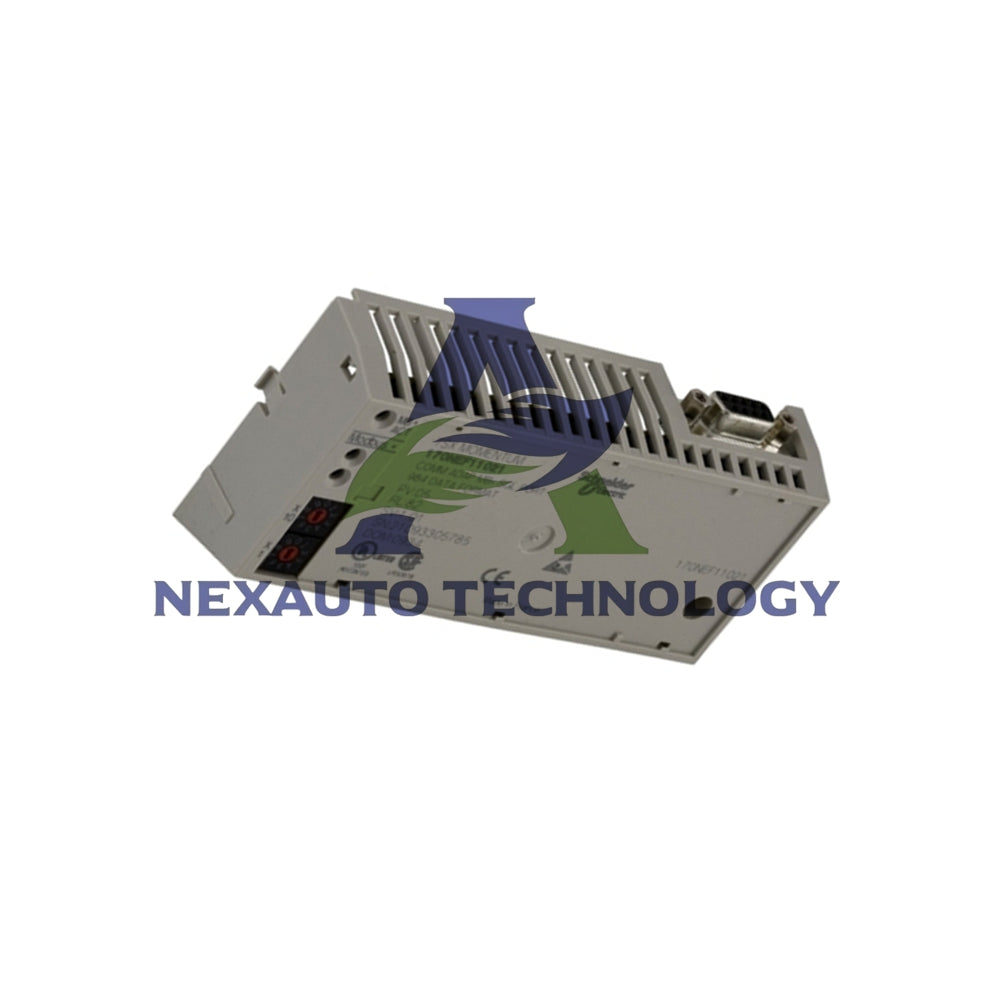

Schneider Electric 170INT11000 Modicon Interbus Adapter

Introducing the Schneider Electric 170INT11000 Interbus Adapter

The 170INT11000 is a key communication module for the Modicon Momentum series. This adapter creates fast and dependable industrial networks. It uses the advanced Interbus Generation SUPI II protocol for smooth data flow.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric 170INT11000
• Communication Protocol: Interbus Generation SUPI II
• Transmission Speed: A high-speed 500 kilobits per second rate.
• Network Topology: Configurable in a reliable ring network structure.
• Cable & Distance: Uses twisted pair cable with spans over 3,280 feet (1,000 meters).
• Device Capacity: Supports from 0 to 254 devices on a single segment.
• Data Integrity: Employs CRC-16 error-checking for reliable control parameters.
• Electrical Connection: Features two robust 9-pin D-Sub Interbus connectors.

Robust Design & Operating Environment

• Power Requirements: Consumes less than 400mA at 5V DC with low 0.8W dissipation.
• Protection Rating: Housed with an IP20 class enclosure for basic dust protection.
• Temperature Range: Operates reliably from 0 to 60°C in non-condensing settings.
• Storage Tolerance: Can withstand storage from -40 to 85°C.
• Physical Weight: A compact and lightweight unit at just 0.45 kg (1.00 lb).

Packaging & Shipping Information

• Package Includes: One (1) 170INT11000 communication adapter unit.
• Package Dimensions: 10.236" L x 7.008" W x 2.205" H (26 x 17.8 x 5.6 cm).
• Shipping Weight: Approximately 6.63 oz (188 grams).
• Shipping Methods: We ship globally via FedEx, UPS, and DHL.

Installation & Integration Guide

• Integrate this module seamlessly into your existing Modicon Momentum rack.
• Utilize the two D-Sub connectors to form the Interbus ring topology.
• Ensure you use the recommended twisted-pair cabling for optimal performance.
• Adhere to the specified temperature and environmental conditions for longevity.
• This adapter supports master/slave and continuous shift register access methods.

Frequently Asked Questions (FAQ)

What is the main purpose of the 170INT11000 module?

This module acts as the communication bridge for Modicon Momentum PLCs. It connects them to an Interbus network for controlling I/O and other devices.

What is the maximum distance between two modules?

You can space two modules up to 1,312 feet (400 meters) apart using standard twisted-pair cable.

Is this adapter suitable for harsh industrial environments?

With its IP20 rating and wide operating temperature range, it fits standard industrial control panels well. Avoid direct exposure to water or excessive moisture.

How do I choose the right communication module for my Momentum system?

If your existing factory network uses the Interbus protocol, the 170INT11000 is the correct choice for integrating your Momentum controller.

From an experience standpoint, what is a key setup tip?

Always ensure the ring topology is properly closed and terminated. A break in the ring will stop network communication for all downstream devices.
