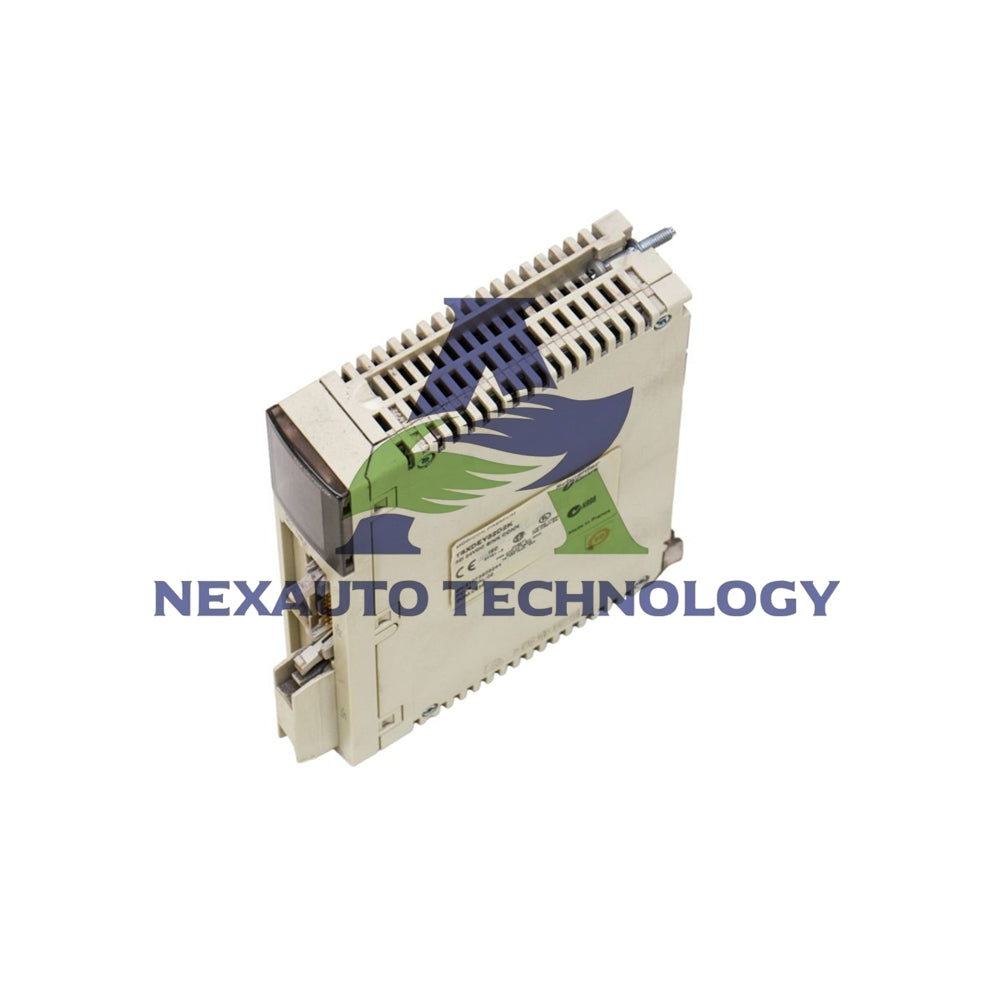

Schneider Electric TSXDSY64T2K 64-Output DC Module

Introduction to the Schneider Electric TSXDSY64T2K Module

The TSXDSY64T2K is a high-density output module in Schneider's TSX Micro PLC series. This solid-state unit provides sixty-four discrete outputs for 24V DC systems. It delivers precise control for demanding automation applications. Engineers choose this module for its reliable performance and comprehensive protection features.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXDSY64T2K
• Discrete Outputs: 64 solid-state protected channels
• Output Voltage: 24 V DC positive (19-30V range)
• Current Ratings: 0.1A per channel, 5A total module maximum
• Response Time: Ultra-fast 1.2 millisecond activation
• Leakage Current: Less than 0.1 mA at 30V for efficiency
• Residual Voltage: Below 1.5V after switching
• Connection Type: 4 x HE-10 connectors for secure wiring

Advanced Protection Features

• Automatic trip protection for both overload and short-circuit conditions
• Transil diode provides effective output overvoltage protection
• Reverse mounted diode safeguards against incorrect polarity connection
• High isolation resistance exceeding 10 MΩ at 500V
• Minimum load impedance of 220Ω ensures stable operation
• Designed for pollution degree 2 industrial environments

Performance and Capabilities

• Supports paralleling of up to three outputs for increased current capacity
• Handles tungsten loads up to 1.2W for lighting applications
• Power dissipation: 2.4W + 0.1W per activated output
• Operates in wide temperature range: 0 to 60°C (32-140°F)
• IP20 protection against solid particle ingress
• Current consumption: 155 mA at 5V DC from backplane

Installation and Setup Guide

• Mount securely on TSX Micro PLC rack using standard format
• Connect using the four provided HE-10 connectors
• Ensure 24V DC power supply meets 19-30V specification
• Maintain proper clearance for heat dissipation around module
• Verify all connections before applying power to system
• Follow Schneider Electric installation guidelines precisely

Package Contents

• One Schneider Electric TSXDSY64T2K output module
• Complete installation and mounting hardware
• Detailed product documentation and specification sheets
• All necessary connectors for immediate installation

Shipping and Delivery Information

• Global shipping via FedEx, UPS, and DHL carriers
• Package weight: 0.36 kg (0.79 pounds) net weight
• Package dimensions: 26.0 x 18.0 x 5.5 cm
• Real-time tracking available for all orders
• Multiple shipping options to meet project timelines

Frequently Asked Questions

What applications need 64 output channels?

High-density applications like lighting control, multi-zone systems, and complex machinery. The TSXDSY64T2K consolidates control points efficiently.

Can outputs be combined for higher current?

Yes, you can parallel up to three outputs. This increases current capacity while maintaining protection features.

How does the automatic trip protection work?

The module detects fault conditions instantly. It automatically trips to protect both the module and connected devices.

What is the advantage of 1.2ms response time?

Ultra-fast response enables precise timing control. This is critical for synchronization and high-speed automation processes.

Does this module work with LED lighting?

Yes, it handles tungsten loads up to 1.2W. The low leakage current makes it suitable for efficient LED control.

How do I wire the four HE-10 connectors?

Each connector groups multiple outputs. Follow the labeling and documentation for proper channel distribution.

What happens with reverse polarity connection?

The reverse mounted diode protects the module. It prevents damage from incorrect power supply connection.

Can this module operate in hot environments?

Yes, it functions reliably up to 60°C. Proper spacing ensures adequate heat dissipation in control cabinets.
