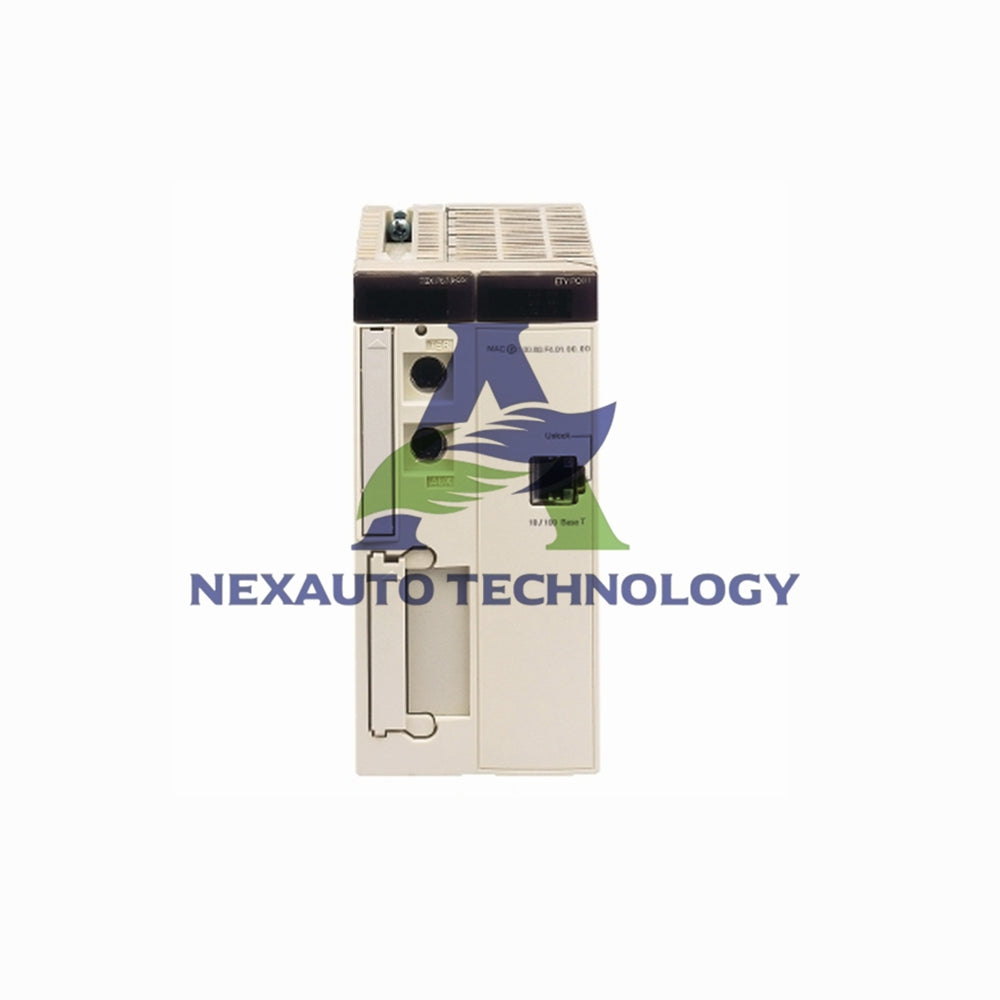

Schneider Electric TSXP57453AM PL7 Processor Module

Introducing the Schneider Electric TSXP57453AM PL7 Processor

The TSXP57453AM is a high-performance double-format processor for the TSX Micro PLC series. This PL7 processor delivers exceptional processing speed and extensive I/O capacity. It is designed for complex automation applications requiring reliable performance and comprehensive connectivity.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric TSXP57453AM
• Processor Type: Double-format PL7 processor
• Discrete I/O Capacity: 2040 I/O points
• Analog I/O Capacity: 256 I/O channels
• Processing Speed: 0.06 µs Boolean execution (with/without PCMCIA)
• Instructions per ms: 13.82 Kinst/ms (100% Boolean, with/without PCMCIA)
• System Overhead: 0.22 ms fast task, 1.15 ms master task
• Module Weight: 1.23 lb (0.56 kg) net weight

Memory Configuration & Expansion

• Base Memory (no PCMCIA): 96 Kwords program and data internal RAM
• Memory with PCMCIA: 176 Kwords data internal RAM
• PCMCIA Expansion:
  • 2048 Kwords additional data storage
  • 992 Kwords program memory
• Object Areas: 32,768 internal bits, 30.5% MWi/32% KWi words
• Task Structure: 1 master, 1 fast, 64 event tasks

Communication & Connectivity Features

• Integrated Interfaces:
  • Fipio manager (127 agents, SUB-D 9)
  • Non-isolated serial link (2x mini DIN, 19.2/115 kbit/s)
• Communication Module Capacity:
  • 2 fieldbus modules (1 if CANopen used)
  • 8 AS-Interface bus modules
  • 1 CANopen interface
  • 4 network modules
• Application Channels: 64 application-specific channels
• Process Control: 20 channels supporting up to 60 simple loops

System Architecture & Expansion

• Rack Support: Up to 16 racks (4/6/8 slots) or 8 racks (12 slots)
• Slot Capacity: Maximum 128 slots in full configuration
• Software: Programmable with PL7 Junior/Pro software
• Platform: Part of Modicon Premium Automation platform
• Current Consumption: 1080 mA at 5V DC
• Module Format: Double format for extended capabilities

Status Indication & Environmental Specs

• Status LEDs: Five indicators for:
  • Processor running (RUN) - Green
  • Fipio bus activity (FIP) - Red
  • I/O module fault (I/O) - Red
  • Processor/system fault (ERR) - Red
  • Terminal port activity (TER) - Yellow
• Operating Temperature: 0°C to 60°C (32-140°F)
• Storage Temperature: -25°C to 70°C (-13 to 158°F)
• Humidity Range: 10-95% non-condensing operation
• Altitude Rating: Up to 2000 meters (6561 feet)
• Protection Rating: IP20 enclosure with TC protective treatment

Certifications & Compliance

• Standards: RoHS compliant, UL 508, IEC 61131-2, CSA
• Hazardous Area: Class 1, Division 2 Groups A, B, C, D
• Marine Certifications: ABS, BV, DNV, GL, LR, RINA, RMRS
• Markings: CE certified for European markets

Packaging & Shipping Information

• Package Includes: One (1) TSXP57453AM PL7 processor unit
• Package Dimensions: 10.2" L x 7.09" W x 3.7" H (26 x 18 x 9.5 cm)
• Shipping Weight: 22.9 oz (648 g) package weight
• Shipping Methods: International shipping via FedEx, UPS, and DHL

Installation & Configuration Guide

• Install this double-format processor in your TSX Micro PLC rack
• Connect Fipio network using the SUB-D 9 connector for distributed I/O
• Configure serial communication via the two mini DIN ports
• Add communication modules as needed for fieldbus, CANopen, or AS-Interface
• Expand system with up to 16 racks for maximum I/O capacity
• Program using PL7 Junior or PL7 Pro software for application development

Frequently Asked Questions (FAQ)

What is the difference between PL7 and Unity processors?

PL7 processors use the PL7 programming software (Junior/Pro versions), while Unity processors use Unity Pro software. The TSXP57453AM is a PL7 processor with specific architecture and programming environment.

What is Fipio manager capability?

The integrated Fipio manager supports up to 127 agents (devices) on the Fipio fieldbus network, providing distributed I/O connectivity without additional master modules.

How does this compare to the TSXP572634M processor?

The TSXP57453AM offers higher I/O capacity (2040 discrete vs 1024) and includes integrated Fipio management, making it suitable for larger, more distributed systems.

What applications require this level of performance?

This processor is designed for large-scale automation in manufacturing, material handling, process control, and building automation where high I/O counts and fast processing are essential.

Is migration possible from PL7 to Unity platform?

While possible, migration requires software conversion and potential hardware changes. Systems designed with PL7 architecture typically continue using PL7 processors for compatibility.
