Schneider Electric TSXPSY2600M Power Supply Module

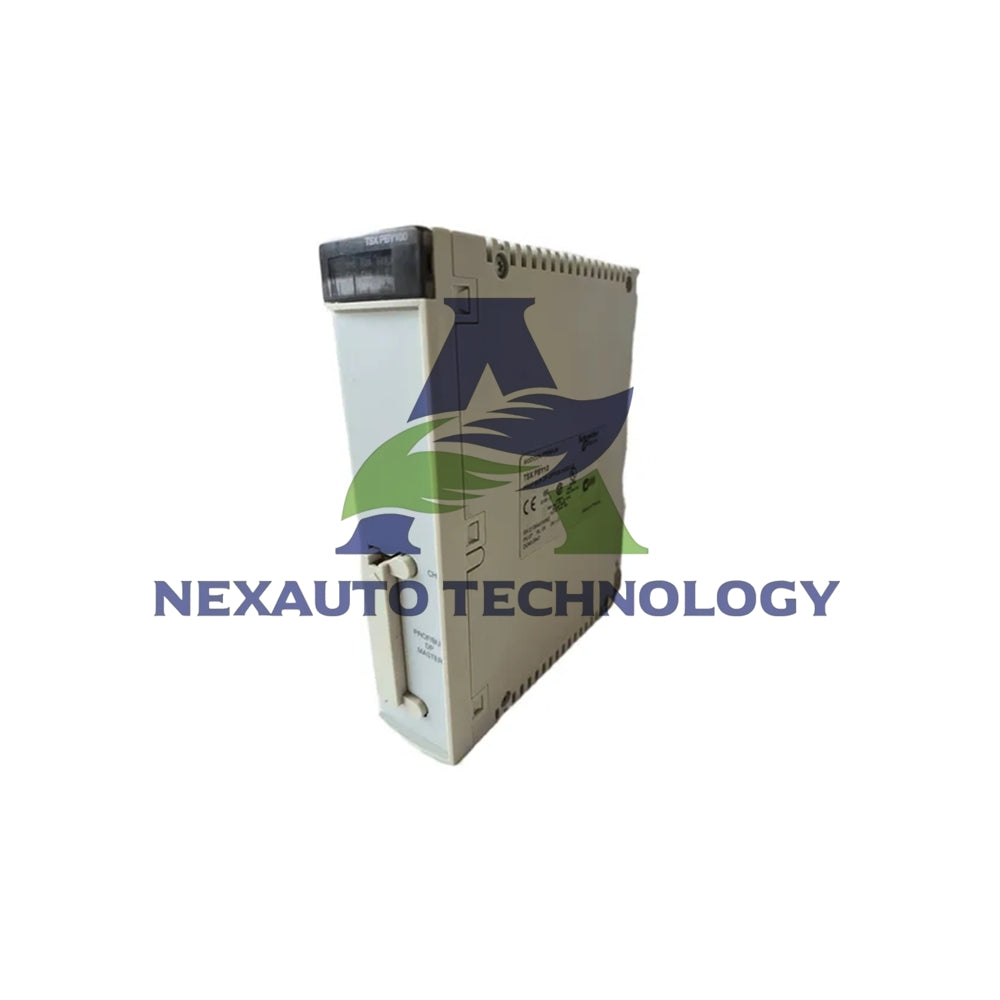

Product Overview: Schneider Electric TSXPSY2600M Power Supply

The Schneider Electric TSXPSY2600M is a power supply module for TSX Micro PLC systems. It provides reliable DC power for Modicon Premium automation platforms.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXPSY2600M
• Input Voltage: 24 V DC (19.2 to 30 V range)
• Total Output: 30 W useful secondary power
• Output Details: 15 W at 5 V DC and 15 W at 24 V DC
• Inrush Current: Handles up to 100 A at 24 V
• Protections: Fuse, overload, overvoltage, short-circuit
• Rating: IP20 protection degree

Protection Features

• Internal 3.5 A time-delayed fuse
• Overload and overvoltage protection
• Short-circuit protection on outputs
• Green LED shows voltage presence
• Red LED indicates battery faults

Physical Specifications

• Weight: 1.00 lb (0.45 kg)
• Operating Temp: 32°F to 140°F (0°C to 60°C)
• Altitude: Up to 6562 ft (2000 m)
• Humidity: 10% to 95% non-condensing

Compatibility

• Designed for TSX Micro PLC series
• Works with Modicon Premium platforms
• Standard module format for easy installation

Packaging & Shipping

• Single unit packaging (PCE)
• Dimensions: 10.2" x 7.09" x 2.4"
• Ships via FedEx, UPS, DHL worldwide

Frequently Asked Questions (FAQ)

What does the TSXPSY2600M power?

It powers TSX Micro PLC racks, providing 5V and 24V DC to all modules.

What input voltage does it need?

It requires 24V DC input within 19.2V to 30V range.

What does the red BAT LED mean?

It indicates a fault with an optional backup battery.

Is 30W enough for a full rack?

Yes, for standard configurations. Check your module power requirements.

How do I choose the right power supply?

Choose TSXPSY2600M for 24V DC systems. For AC power, select a different model.

What if output voltage fails?

Check input power and green LED. The internal protection may have activated.
