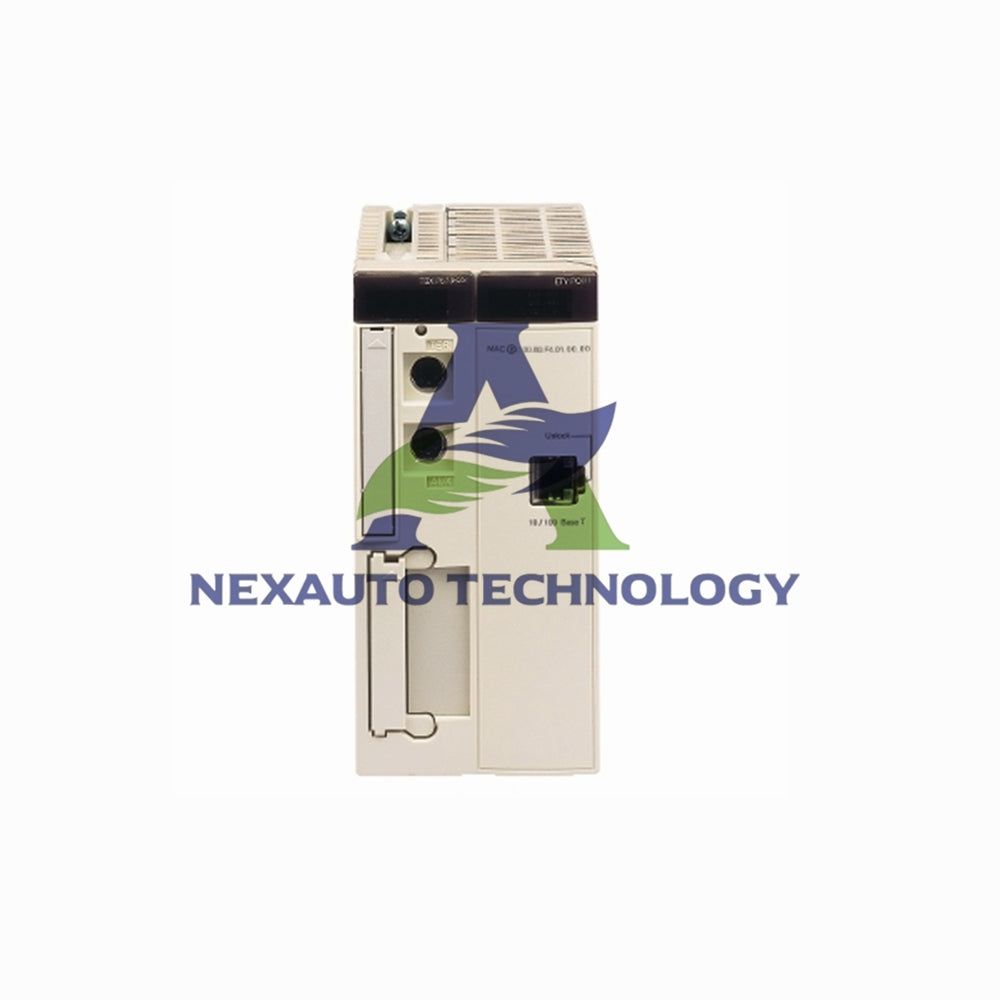

TSX Micro PLC TSXP572634M | Schneider Electric Processor

Introducing the Schneider Electric TSXP572634M Micro PLC Processor

The TSXP572634M is a high-performance processor for the TSX Micro PLC series. This controller provides extensive I/O capacity and fast processing for complex automation tasks. It is part of the Modicon Premium platform and supports Unity Pro programming software.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric TSXP572634M
• Discrete I/O Capacity: 1024 I/O points
• Analog I/O Capacity: 80 I/O channels
• Processing Speed: 0.19 µs Boolean execution (0.21 µs with PCMCIA)
• Instructions per ms: Up to 4.76 Kinst/ms (100% Boolean without PCMCIA)
• Application Channels: 24 application-specific channels
• Process Control: 10 channels supporting up to 30 simple loops
• Module Weight: 0.093 lb (0.042 kg)

Memory & Processing Architecture

• Internal RAM: 48 Kwords for program and data (without PCMCIA)
• PCMCIA Expansion: Two slots for memory or communication cards
• Memory with PCMCIA: 160 KB data, 768 KB program capacity
• Additional Storage: PCMCIA card provides 16,384 KB extra data storage
• Task Structure: 1 master, 1 fast, 64 event tasks
• Object Areas: 8132 internal bits, 64% MWi/KWi words capacity

Communication & Connectivity

• Integrated Interfaces:
  • Ethernet TCP/IP (10/100BASE-TX, RJ45)
  • Non-isolated serial link (2x mini DIN, 19.2 kbit/s)
• Fieldbus Capacity:
  • 1 fieldbus module (except when using CANopen)
  • 4 AS-Interface bus modules
  • 1 CANopen interface
• Concept: Transparent Ready architecture

System Expansion & Physical Design

• Rack Support: Up to 16 racks expansion
• Slot Capacity: Maximum 128 slots (4/6/8 slot racks)
• Display & Control: 5 front panel LEDs, RESET button for cold start
• Status LEDs: 10 indicators for RUN, ERR, I/O, COL, TER, STS, RX, TX
• Power Consumption: 1650 mA at 5V DC
• Module Format: Double module size

Environmental & Safety Specifications

• Operating Temperature: 0°C to 60°C (32-140°F)
• Storage Temperature: -25°C to 70°C (-13 to 158°F)
• Humidity Range: 10-95% non-condensing operation, 5-95% storage
• Altitude Rating: Up to 2000 meters (6561 feet)
• Protection Rating: IP20 enclosure
• Certifications: UL 508, IEC 61131-2, CSA, CE, marine classifications (ABS, DNV, GL, etc.)

Packaging & Shipping Information

• Package Includes: One (1) TSXP572634M PLC processor unit
• Shipping Methods: International shipping via FedEx, UPS, and DHL
• Standard Packaging: Protective packaging for sensitive electronic controllers

Installation & Configuration Guide

• Install this processor in your TSX Micro PLC rack system
• Connect Ethernet and serial communication cables to integrated ports
• Expand system with up to 16 racks for additional I/O capacity
• Configure using Unity Pro software with Transparent Ready architecture
• Utilize PCMCIA slots for memory expansion or additional communication
• Monitor system status through the comprehensive front panel LEDs

Frequently Asked Questions (FAQ)

What software is used to program this controller?

The TSXP572634M is programmed using Schneider Electric's Unity Pro software, which supports IEC 61131-3 programming languages and the Transparent Ready concept.

What is the difference between master, fast, and event tasks?

The master task handles normal program execution, the fast task processes time-critical operations, and event tasks respond to specific triggers or interrupts for efficient multitasking.

How many I/O points can be configured in total?

With 1024 discrete I/O and 80 analog I/O capacity, this processor can handle extensive automation systems across up to 16 expansion racks.

What are the benefits of Transparent Ready architecture?

Transparent Ready enables web-based access, remote diagnostics, and seamless integration with enterprise systems through standard Ethernet connectivity.

What types of applications is this processor suitable for?

This processor is ideal for complex automation applications in manufacturing, process control, material handling, and building automation requiring high I/O counts and fast processing.
