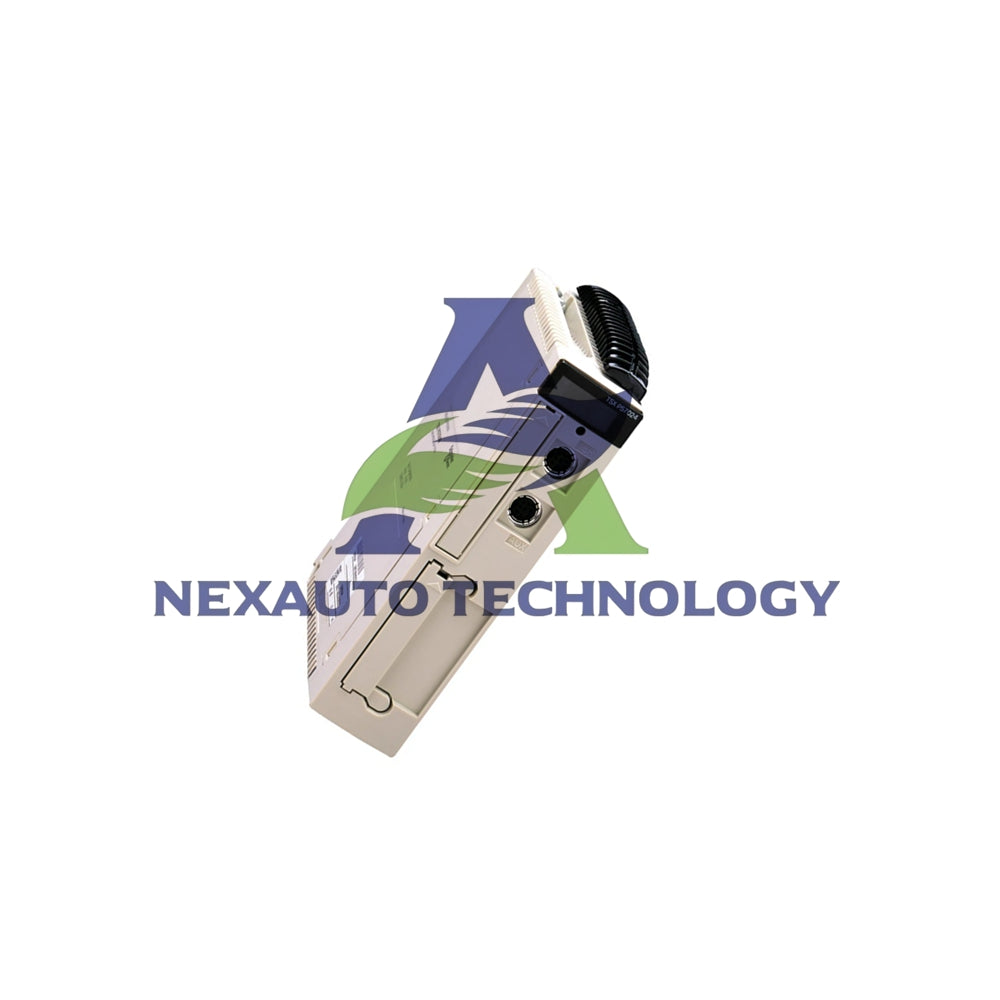

Schneider TSXP57103M | Compact Automation Controller

The Schneider Electric TSXP57103M is a capable micro PLC from the Modicon TSX Premium series. It balances processing power, I/O capacity, and communication options in a compact format. This processor is ideal for mid-range automation tasks in machinery and control systems.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXP57103M
• Product Type: Micro PLC Processor (PL7 Junior/Pro)
• Memory: 32 Kwords internal RAM for data; expandable with PCMCIA.
• I/O Capacity: 512 discrete I/O and 24 analog I/O.
• Processing Speed: 0.5 µs per Boolean instruction.
• Integrated Port: Non-isolated serial link (19.2 kbit/s) for programming/HMI.

System Architecture & Expansion

• Rack Configurations: Supports 2 racks (12 slots) or 4 racks (4/6/8 slots).
• Communication Modules: Can manage 1 network, 2 AS-Interface, and 1 CANopen module.
• Application Channels: 8 application-specific channels for high-speed tasks.
• Provides a scalable foundation for growing automation needs.

Memory & Performance Details

• Base Memory: 32 Kwords for program and data (without PCMCIA).
• PCMCIA Expansion: Adds 128 Kwords data and 64 Kwords program storage.
• Execution Speed: 1.05 K instructions/ms (65% Boolean, 35% arithmetic).
• Supports a master task, a fast task, and 32 event-driven tasks.

Electrical & Physical Data

• Current Consumption: 440 mA at 5V DC from the rack.
• Inrush Current: Handles 38 A at 100V/240V for robust startup.
• Weight: 0.84 lbs (0.38 kg).
• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Protection Rating: IP20 for installation in an enclosure.

Packaging & Indicators

• Package Includes: One (1) TSXP57103M processor unit.
• Package Dimensions: 10.2" L x 7.09" W x 2.2" H.
• LED Status Lights: RUN (green), I/O Fault (red), ERR (red), TER activity (yellow).

Frequently Asked Questions (FAQ)

What is the primary use of this processor?

It serves as the central controller for automated machines and processes, executing logic, handling I/O, and managing communication in the Modicon TSX Premium system.

What is the advantage of the PCMCIA card slot?

The PCMCIA slot allows for significant memory expansion and easy program transfer between controllers, which is essential for complex applications and project backup.

What communication networks does it support?

While it has a built-in serial port, it can also manage added modules for networks like Ethernet, CANopen, and AS-Interface, offering flexibility for device connectivity.

How many I/O modules can it control?

The TSXP57103M can manage a system with up to 512 discrete and 24 analog points, distributed across its supported rack configurations (up to 32 total slots).

What programming software is required?

It is programmed using Schneider Electric's PL7 Junior or PL7 Pro software, which is specific to the Modicon TSX Premium platform.
